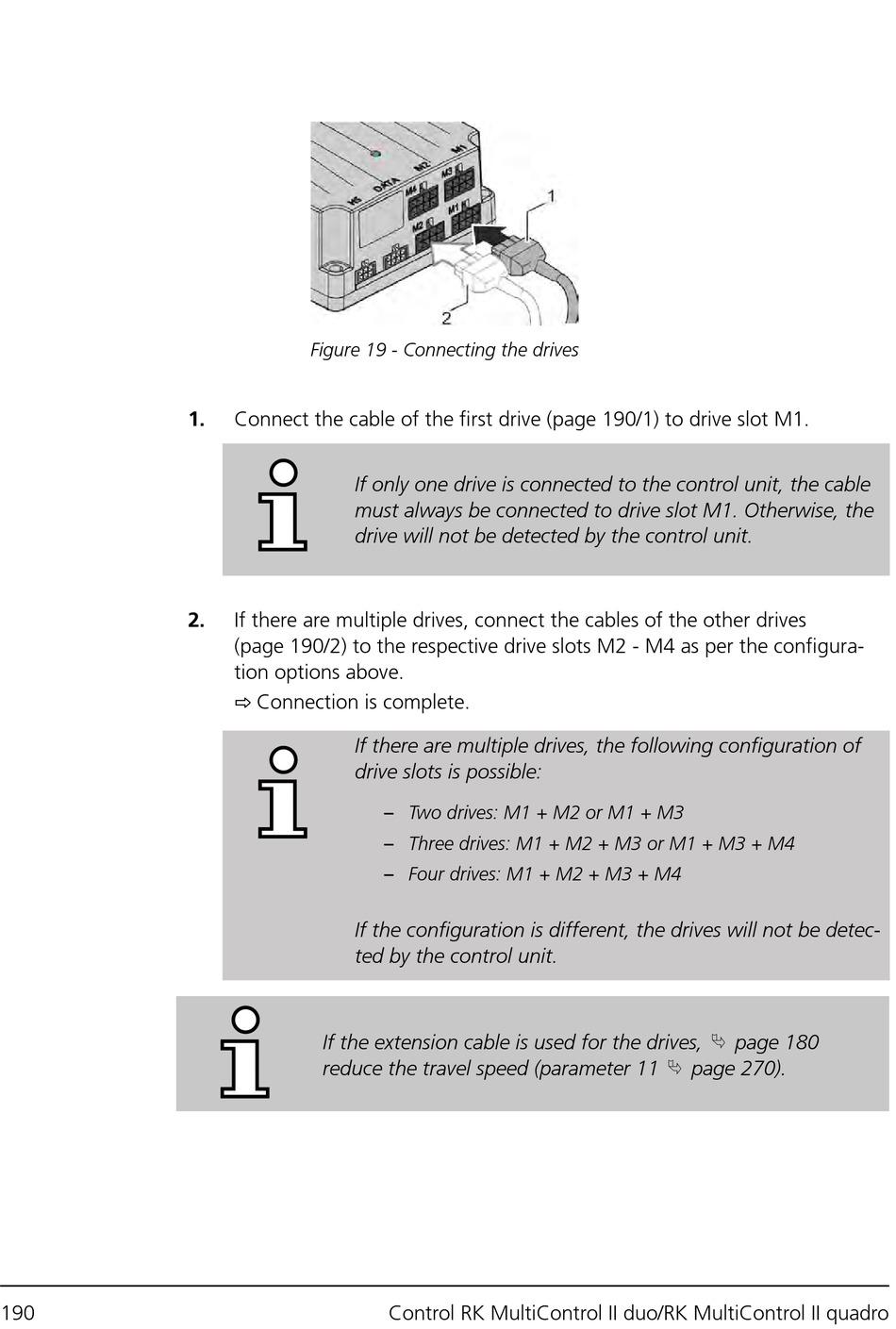

Figure 19 - Connecting the drives
1.
Connect the cable of the first drive (page 190/1) to drive slot M1.
If only one drive is connected to the control unit, the cable
must always be connected to drive slot M1. Otherwise, the
drive will not be detected by the control unit.
2.
If there are multiple drives, connect the cables of the other drives
(page 190/2) to the respective drive slots M2 - M4 as per the configura-
⇨ Connection is complete.
tion options above.
If there are multiple drives, the following configuration of
drive slots is possible:
If the configuration is different, the drives will not be detec-
ted by the control unit.
If the extension cable is used for the drives,
reduce the travel speed (parameter 11
– Two drives: M1 + M2 or M1 + M3
– Three drives: M1 + M2 + M3 or M1 + M3 + M4
– Four drives: M1 + M2 + M3 + M4
Control RK MultiControl II duo/RK MultiControl II quadro
⮱
page 180
⮱
page 270).
