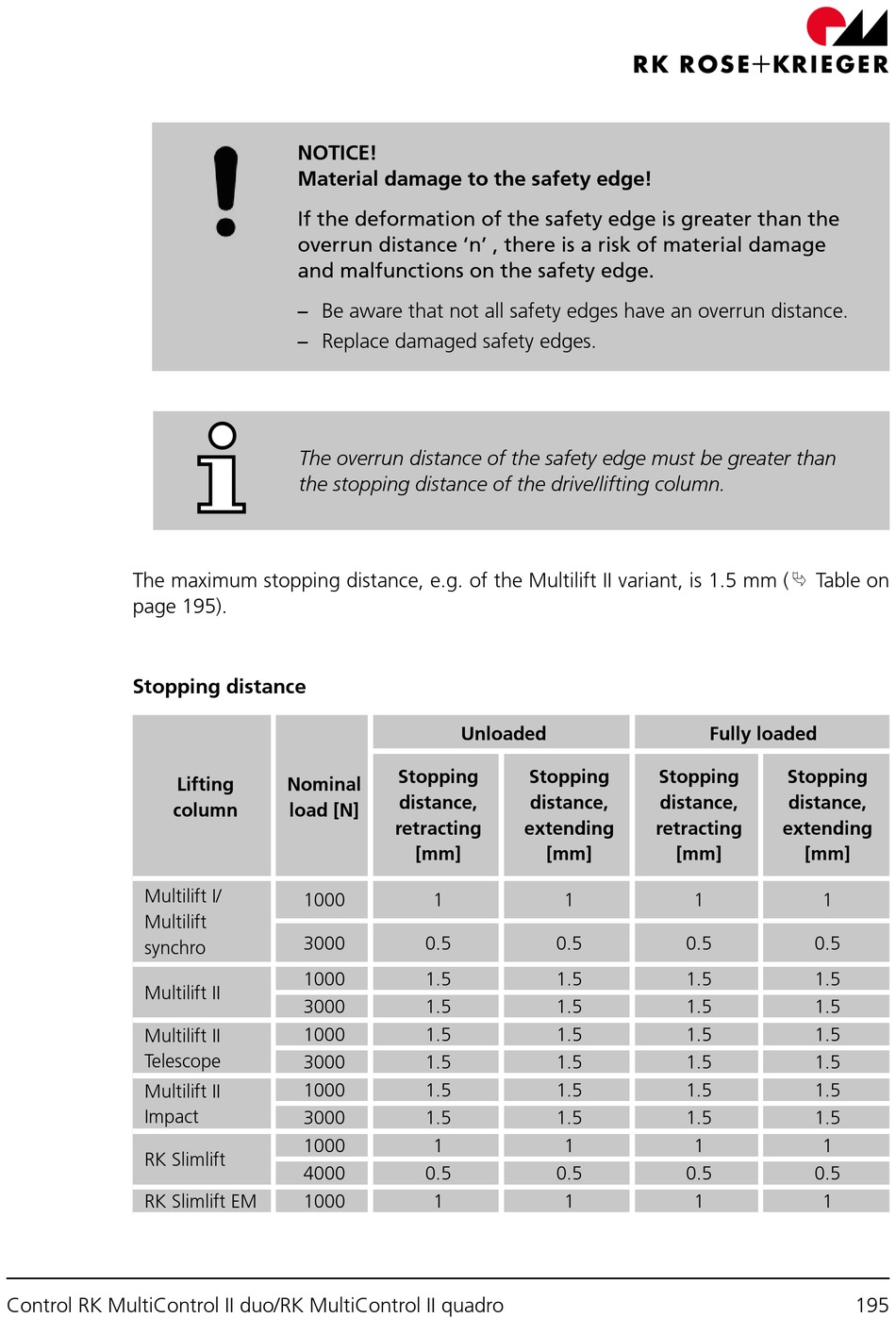

The maximum stopping distance, e.g. of the Multilift II variant, is 1.5 mm (
page 195).
Stopping distance
column
Multilift I/
Multilift
synchro
Multilift II
Multilift II
Telescope
Multilift II
Impact
RK Slimlift
RK Slimlift EM
Control RK MultiControl II duo/RK MultiControl II quadro
NOTICE!
Material damage to the safety edge!
If the deformation of the safety edge is greater than the
overrun distance 'n' , there is a risk of material damage
and malfunctions on the safety edge.
– Be aware that not all safety edges have an overrun distance.
– Replace damaged safety edges.
The overrun distance of the safety edge must be greater than
the stopping distance of the drive/lifting column.
Lifting
Nominal
load [N]
1000
3000
1000
3000
1000
3000
1000
3000
1000
4000
1000
Unloaded
Stopping
Stopping
distance,
distance,
retracting
extending
[mm]
[mm]
1
1
0.5
0.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1
1
0.5
0.5
1
1
⮱
Table on
Fully loaded
Stopping
Stopping
distance,
distance,
retracting
extending
[mm]
[mm]
1
1
0.5
0.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1
1
0.5
0.5
1
1
