254
The collision detection cannot detect obstacles until after an acceleration phase
(the default setting is approximately 1 s).
After an obstacle has been detected, the movement stops and movement in the
last direction of travel is blocked.
The system first has to be freed up by moving it in the opposite direction. Movement
of the system is then enabled again.
◼ The main menu for the hand switch is displayed
Prerequisite:
Selecting the 'Collision detection' menu
Select the menu via 'Control' → 'Stop functions' → 'Collision detection'
1.
(Figure 108).
Selecting the direction of travel
2.
Select the direction of travel 'Extend' or 'Retract' (in this case: 'Retract',
Figure 109).

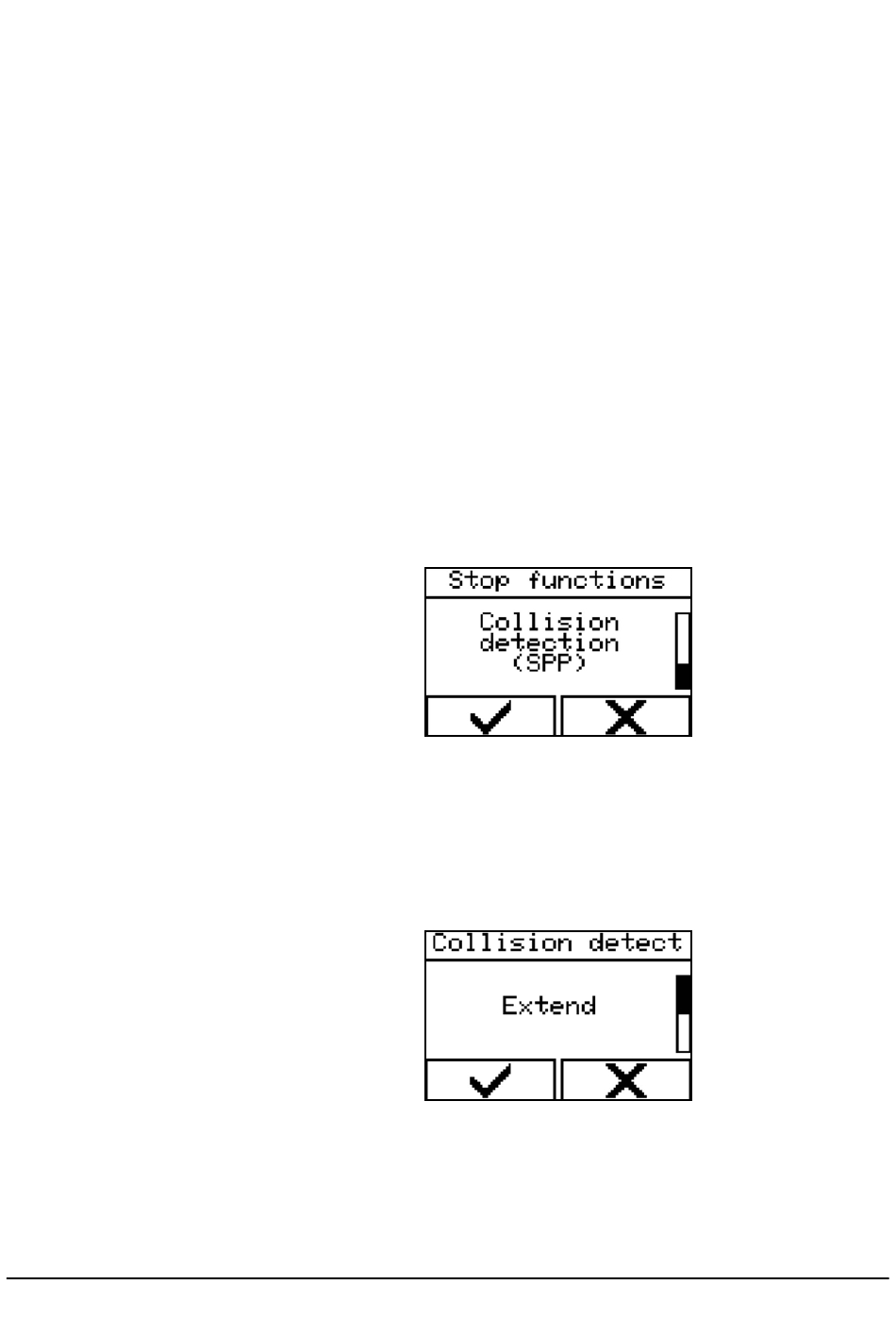

Figure 108 - Selecting a menu
Figure 109 - Selecting the direction of travel
Control RK MultiControl II duo/RK MultiControl II quadro
⮱
Figure 108
