Operator Control

The common rectifier can be controlled via:
♦ the PMU (Parameterization Unit) on the CUR module
♦ the control terminal strip on the CUR (Section 3.3 "Control terminal strip")
♦ the OP1S operator control panel (Section 9.4 "Options/Operator control")
♦ the SST1 serial interface (RS485 and RS232) on PMU-X300
♦ the optional SST2 serial interface (RS485) for peer-to-peer coupling
Operator control using the PMU (see diagram below) is described in this section.
On key
Off key

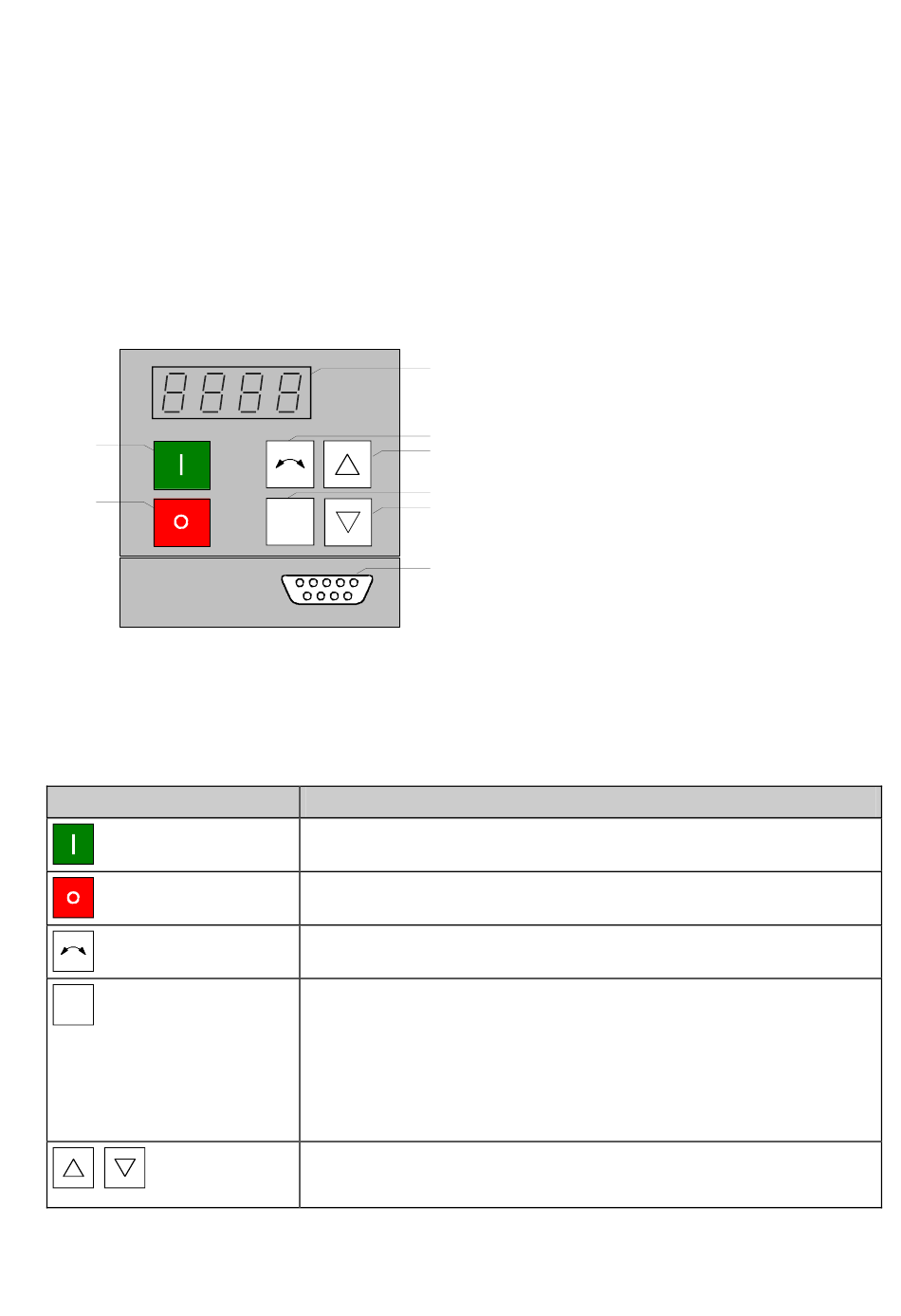

Figure 6.1 Parameterization unit
6.1

Operator control elements

Operator control elements
P
,
Table 6.1 Function of the operator control elements on the PMU
Siemens AG 6SE7087-6AK85-0AA0
Common Rectifier Operating Instructions
Seven-segment displays
Reversing key
Raise key
Changeover key, operator control level
Lower key
P
X300
Function
Common rectifier switch on (standard).
For faults: Return to the fault display.
Common rectifier shutdown depending on the parameterization of OFF1 or
OFF2 (P554 to P557).
No function
1) Changeover between parameter number, index and parameter value
levels (see Figure 6.2), whereby the command only becomes effective when
the key is released.
2) Resetting the current fault message (see Figure 6.3)
3) In conjunction with the arrow keys <raise> and <lower>, additional
functions are possible (refer to Figs. 6.2 and 6.3), whereby <P> is pressed
first followed by the other key. This command becomes effective once the
other key has been pressed.
Changing the parameter number when the parameter number level is
displayed, changing the index when the index level is displayed, or the
parameter value when the parameter value level is displayed.
