Options
9.3

Power Supply

A SITOP power supply as described in Catalog KT10 is recommended for the common rectifier (connector X9).
9.4

Operator control panel OP1S

Option Beschreibung
OP1S User-friendly operator control panel with plain
text display
Order No.: 6SE7090-0XX84-2FK0
Table 9.5 Operator control options
The optional comfort version of the operator panel with a
plaintext display is plugged into the position in the device door
intended for that purpose.
It is thus connected to the serial basic device interface SST1.
If the UP or DOWN keys of the OP1S is used to select
adjacent parameter numbers, the missing numbers are
skipped in the range of the basic device parameters.
With parameters of a technology module, this automatic
skipping of missing numbers is not possible. In that case, the
numbers of the existing parameters must be entered directly.
The OP1S provides the option of selecting parameters directly by entering their number on the keyboard. The
following applies:
Basic device
parameter
Parameter of a
technology module
9-4
ENGLISH
Displayed number
rxxx, Pxxx
Hxxx, dxxx
Fault
Run
I
O P
Jog 7 8 9
4 5 6
1 2 3
0 +/- Reset

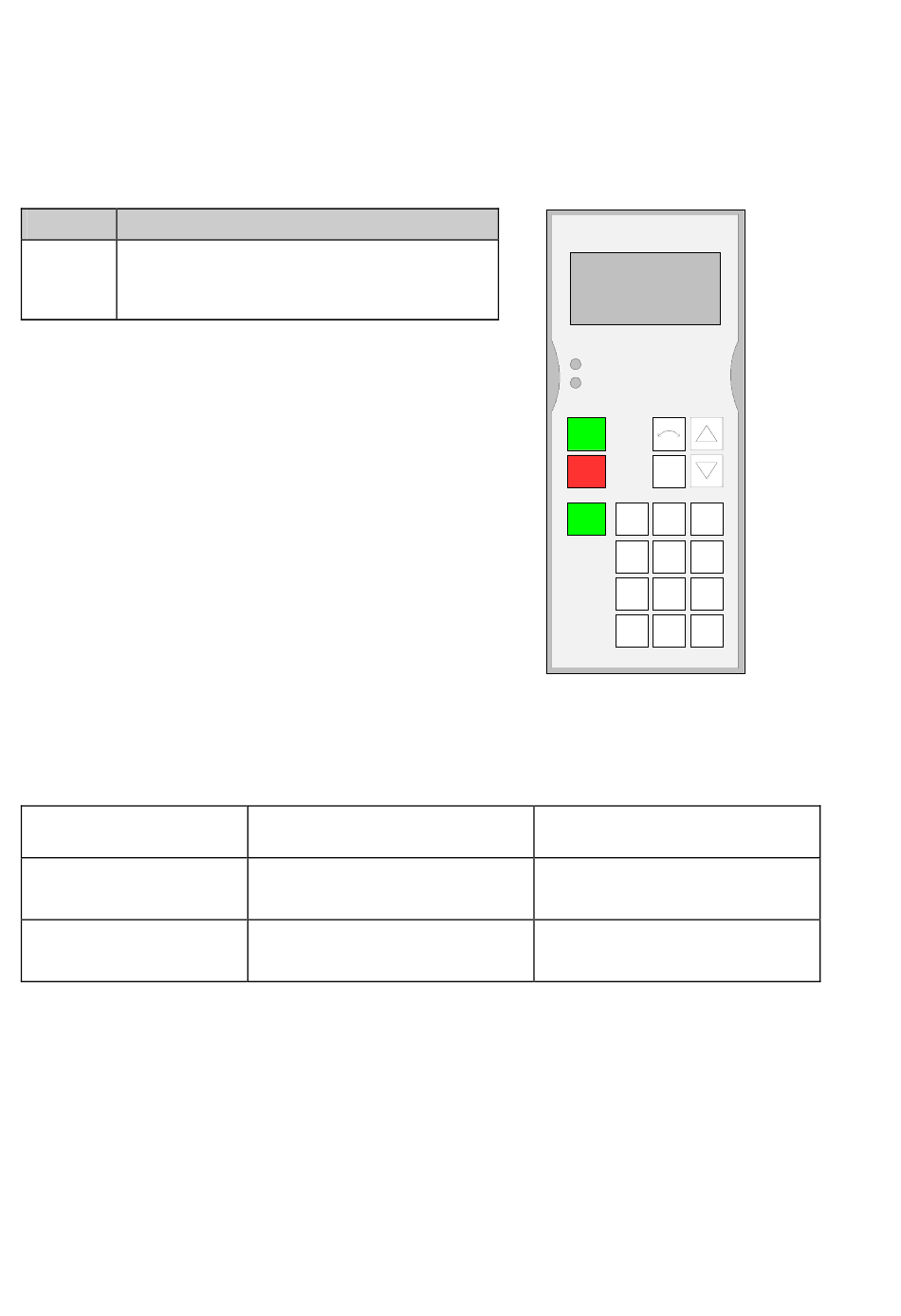

Figure 9.1 OP1S
Number to be entered on the OP1S
(0)xxx
1xxx
