Parameterization "Standard Application - Siemens SIMOVERT Master Drives 6SE70 Betriebsanleitung

09.02
4.2.2

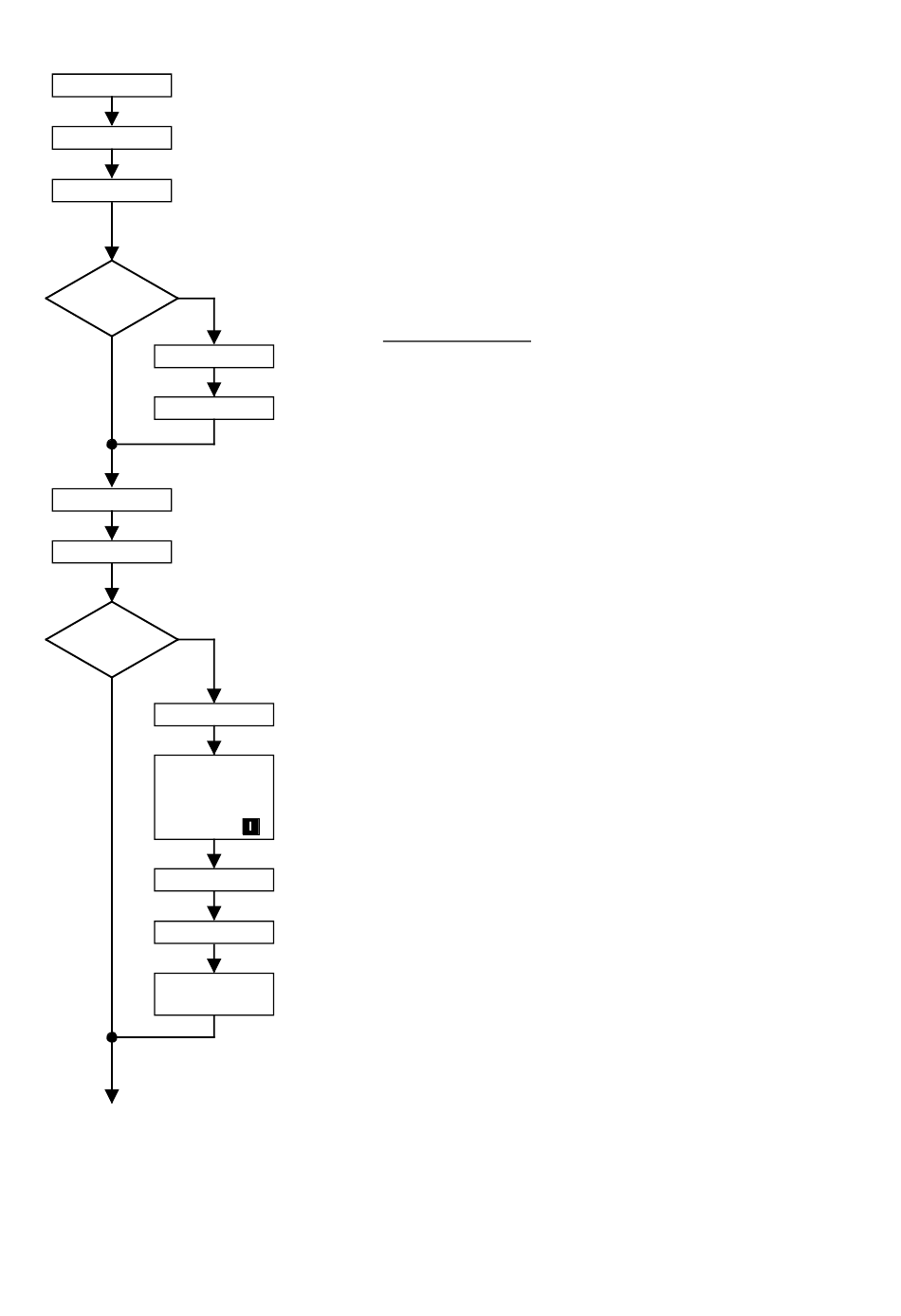

Parameterization "Standard application"

P050 =
P051 = 2
P053 =
yes
Commands
via OP1S?
no
P554 = 2001
P555 = 2001
P052 = 5
P071 =
Idle time
yes
of converter
>1year
no
P408 =
P052 = 20
P key
Switch-on
Forming
r000 ≤
o
Wait to
Ud<50V
Siemens AG 6SE7087-6AK85-0AA0
Common Rectifier Operating Instructions
Language (only important when an OP1S is in use; see Section 9.4):
0: German, 1: English, 2: Spanish, 3: French, 4: Italian
Access stage "Standard mode"
Parameterization enable
e.g. with P053=6, the parameters from the parameterization unit (PMU) and
from serial interface 1 of the basic unit (SST1- and therefore also from the
optional user-friendly operator panel OP1S) can be modified.
Operator control
In order to avoid having to wait until the link circuit voltage drops below 20%
before switching off, set the parameter P554 = P555.
If the unit is to be switched on and off via the optional user-friendly operator
panel OP1S:
P554=2001 Source for control command "ON/OFF1"
P555=2001 Source for control command "OFF2"
Drive setting
Supply voltage [V]
Value of the rated voltage at the input bridge
Forming the DC link (if necessary, see Section 4.3.9.6)
- The common rectifier must be in status o 009 less
(give SWITCH ON command)
- Set P408 (forming time: 1.0 to 600.0 minute)
- Select function (P052 = 20)
- Press P key on the PMU
- Press the I key on the PMU
- The DC link is formed
- When forming is completed, the operating status display appears
009
(see r006)
ENGLISH
Start-Up
4-5
