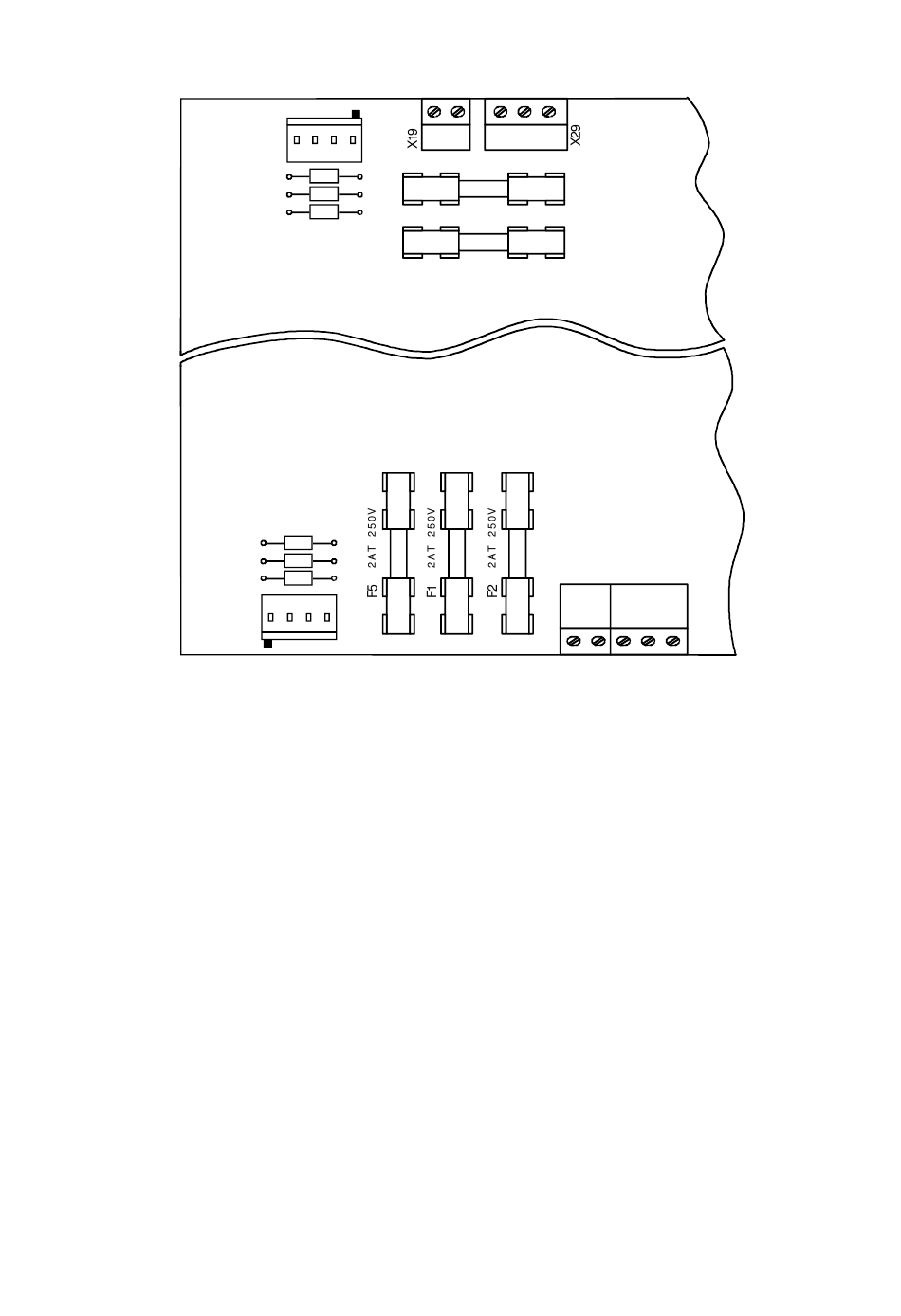

Position of the load resistors:
Siemens AG 6SE7087-6AK85-0AA0
Common Rectifier Operating Instructions
X47
R 7 6
R 7 8
R 8 0
C98043-A1685
R 7 9
R 7 7
R 7 5
X48
2 1 3 2 1
F4
7 A T 2 5 0 V
F3
7 A T 2 5 0 V
1
X 9
Maintenance
5
X 9
