Structure - Siemens SIMOVERT Master Drives 6SE70 Betriebsanleitung

09.02
6.3

Structure

Operating display
Parameter number level
P
+
Fast changeover
Index level
Parameter value level

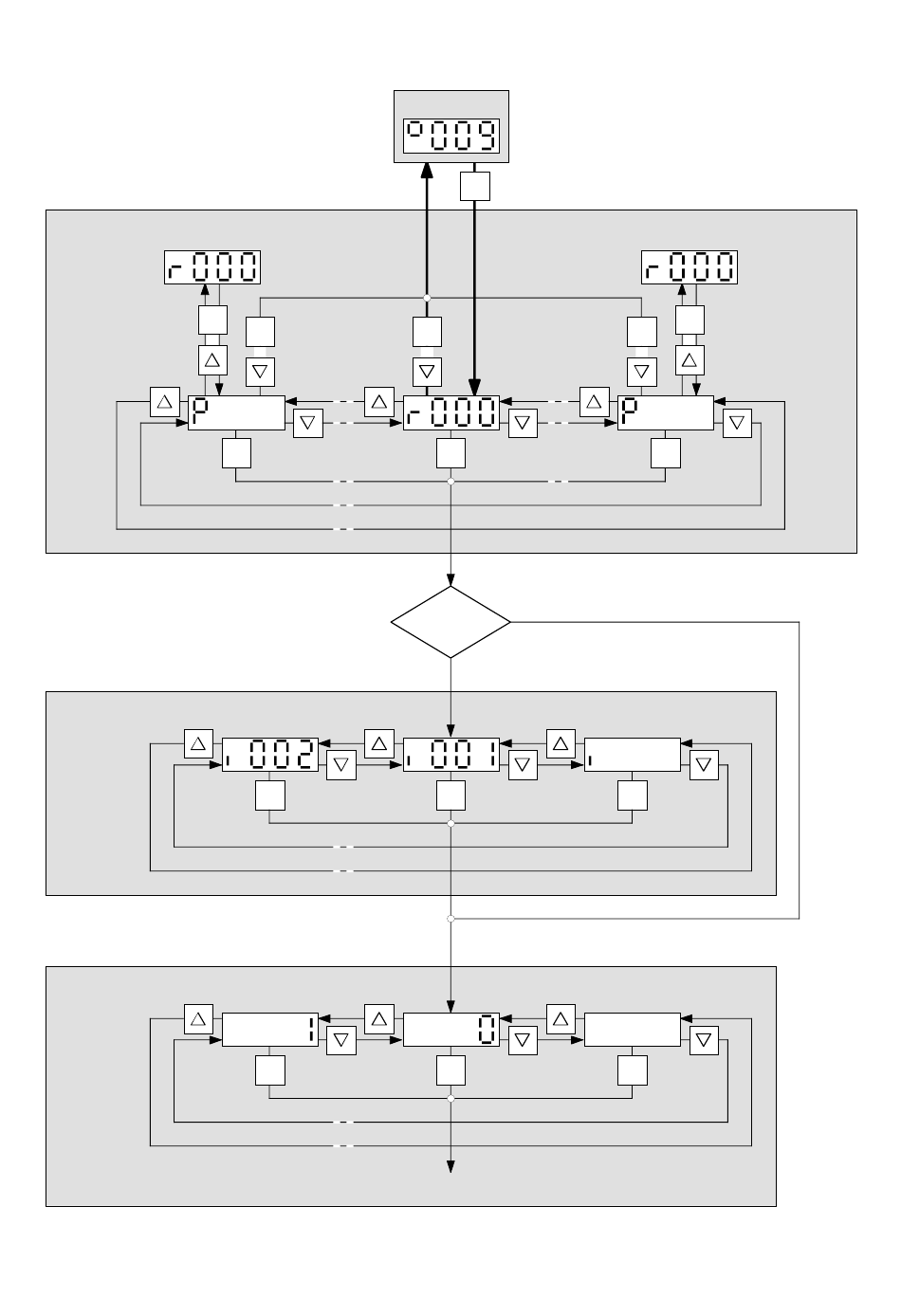

Figure 6.2 Operator control structure using the PMU
Siemens AG 6SE7087-6AK85-0AA0
Common Rectifier Operating Instructions
Ready to switch-on
P
+
P
P
P
Return to parameter number
P
P
+
P
no
Parameter
indexed?
yes
P
P
P
P
+
Fast changeover
+
P
highest
index
P
highest
value
P
ENGLISH
Operator Control
6-3
