09.02
Cable binder
Adapt length
to design
Shield

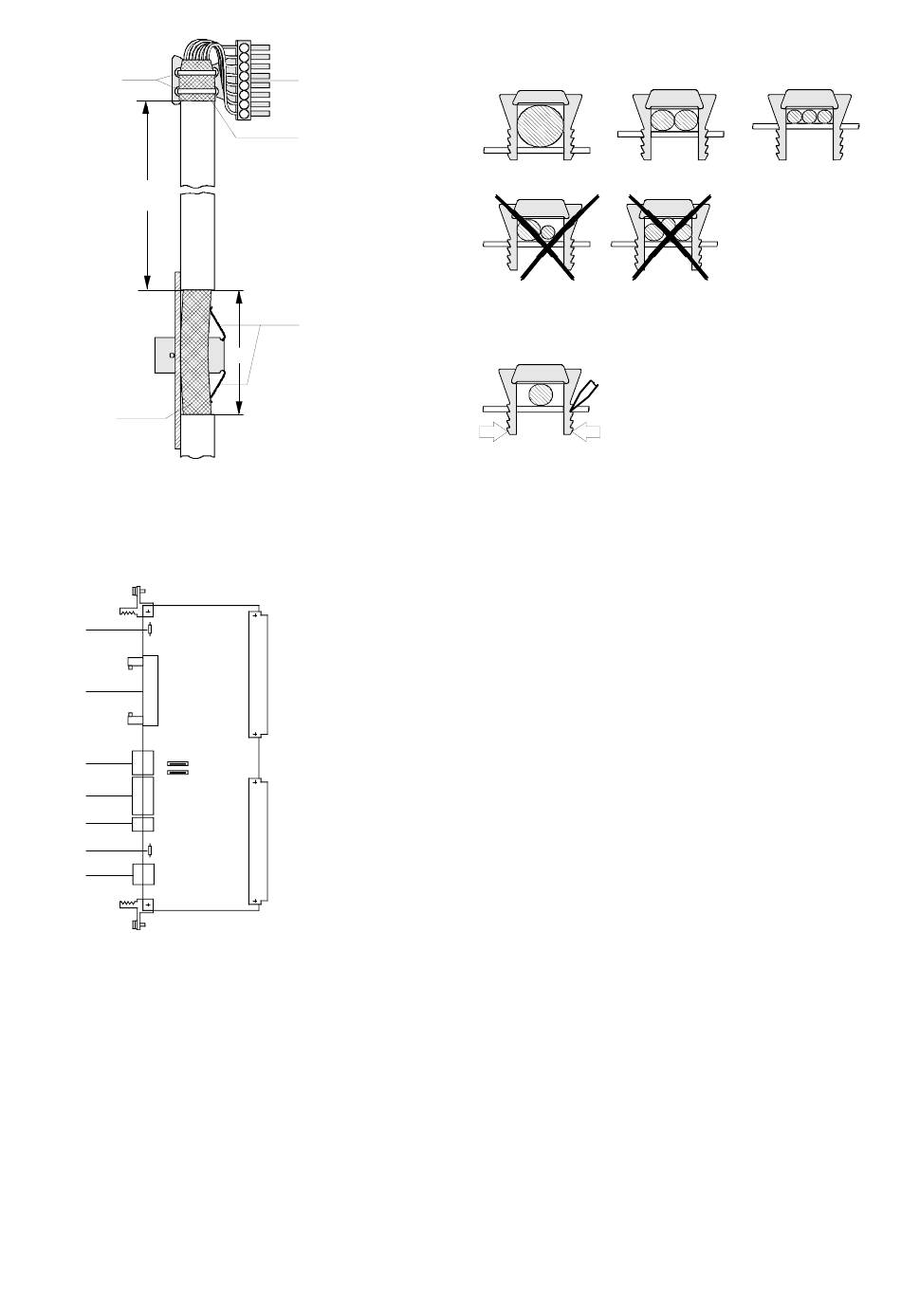

Figure 3.4 Connecting the control leads and handling the shielding clamps
3.3.3

Terminals and setting elements on the CUR (A10) module

R135
A10
CUR
PMU
S1
X100
S2
X101
X102
R136
X104
Figure 3.5 Control terminals and setting elements on the CUR
• DIP switches S1, S2: Both open: No bus termination for the RS485 interface (terminals X100-1 to X100-4)
• R135 and R136:
Siemens AG 6SE7087-6AK85-0AA0
Common Rectifier Operating instructions
Connector
Slide on shield
and secure with
shrink-on tubing,
for example
Do not bend
spring over
35
Both closed: Bus termination for the RS485 interface active (1500Ω between
RS485P and RS485N, 3900Ω from RS485P to +5V supply, 390Ω
from RS485N to earth)
Note: Application: When using the optional operator panel OP1S at the basic device
interface SST1 (X100 or X300), DIP switches S1 and S2 must be closed.
0Ω resistances as earth-frame (M) connection
M is connected to earth when the unit is supplied. Remove these resistances only to
avoid faults due to earth loops, i.e. if the electronics frame is connected in some other
way to earth (e.g. through signal leads or the frame terminal of the power supply unit).
If option modules are used, a further earth-frame (M) connection may have to be
removed. (please refer to the description of these modules).
Fitting the shielding clamp
Ø ≤ 15mm Ø ≤ 7.5mm
Releasing the shielding clamp
ENGLISH
Connection
Ø ≤ 5mm
manually or using a screwdriver,
press the clamp together and extract
it in the updown direction.
Caution!
The clamps are sharp-edged!
3-9
