Replacing modules

The modules contain electrostatically sensitive devices. You must discharge your own
body before touching an electronic module. This is best done by touching a conductive
earthed object (e.g. a bare metal part of the control cabinet) directly beforehand.
Replacing modules in the
electronics box
♦ Undo the securing screws
of the modules above and
below the insertion
/removal aids.
♦ By means of the insertion
/removal aids, carefully pull
the module out of the
electronics box, making
sure that the module does
not get stuck.
♦ Carefully insert the new
module in the guide rails
until it moves no further in
the electronics box.
♦ Firmly screw down the
module with the securing
screws above and below
the insertion / removal aids.
Siemens AG 6SE7087-6AK85-0AA0
Common Rectifier Operating Instructions
Modules must only be replaced by qualified persons.
Modules must not be removed or inserted under a live voltage.
Non-observance of warning notices can result in death, severe personal injury
or considerable property damage.
S lo t 1 (C U R )
S lot 3 (O ptio n s)
S lot 2 (O ptio n s)

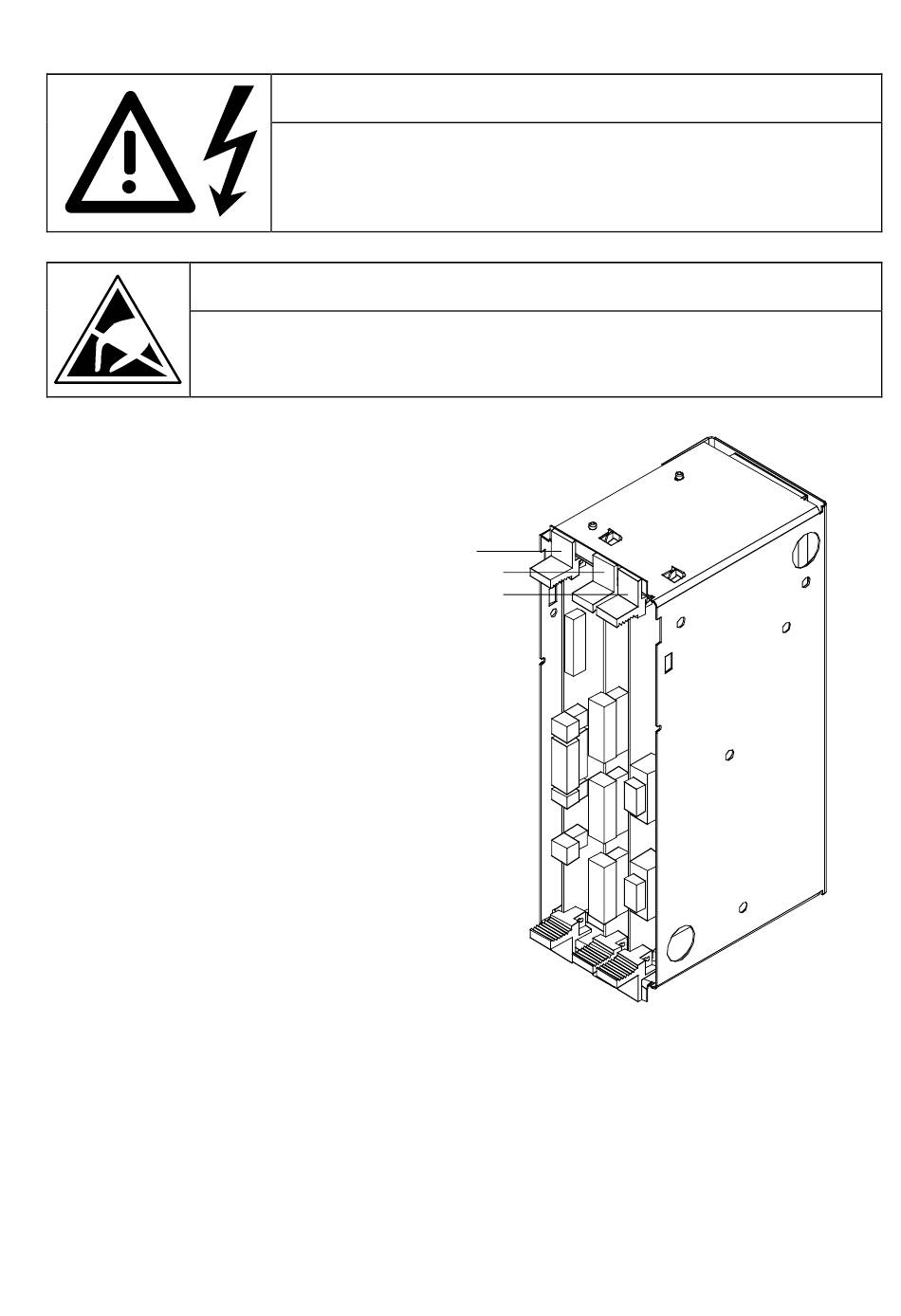

Figure 8.3 Electronics box, equipped with CUR (slot 1)
and options (slots 2 and 3)
WARNING
CAUTION
