8.2.4.2

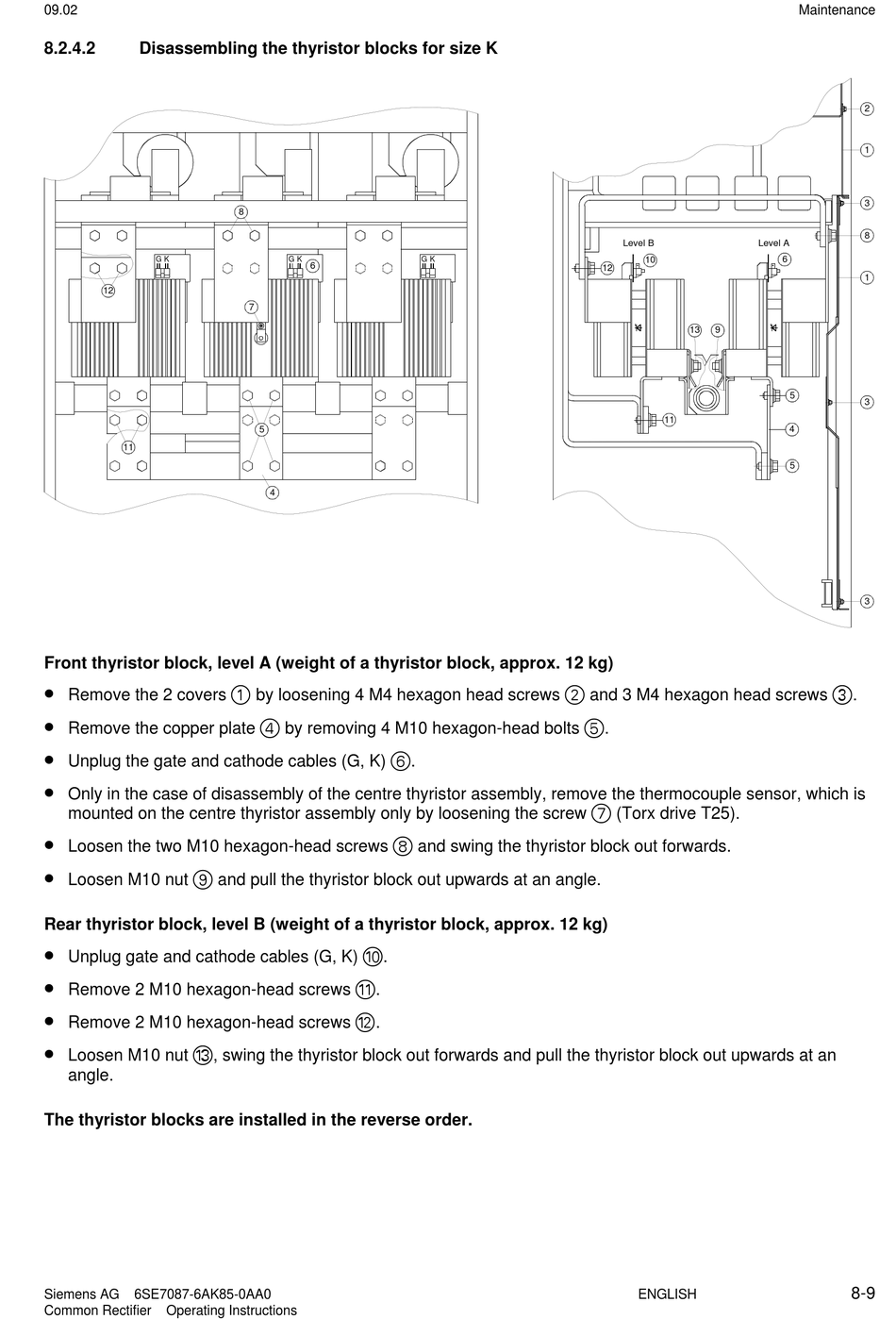

Disassembling the thyristor blocks for size K

G K
12
11
Front thyristor block, level A (weight of a thyristor block, approx. 12 kg)
•
Remove the 2 covers
•
Remove the copper plate
•
Unplug the gate and cathode cables (G, K)
•
Only in the case of disassembly of the centre thyristor assembly, remove the thermocouple sensor, which is
mounted on the centre thyristor assembly only by loosening the screw
•
Loosen the two M10 hexagon-head screws
•
l
Loosen M10 nut
Rear thyristor block, level B (weight of a thyristor block, approx. 12 kg)
•
Unplug gate and cathode cables (G, K)
•
Remove 2 M10 hexagon-head screws
•
Remove 2 M10 hexagon-head screws
•
D
Loosen M10 nut , swing the thyristor block out forwards and pull the thyristor block out upwards at an
angle.
The thyristor blocks are installed in the reverse order.
