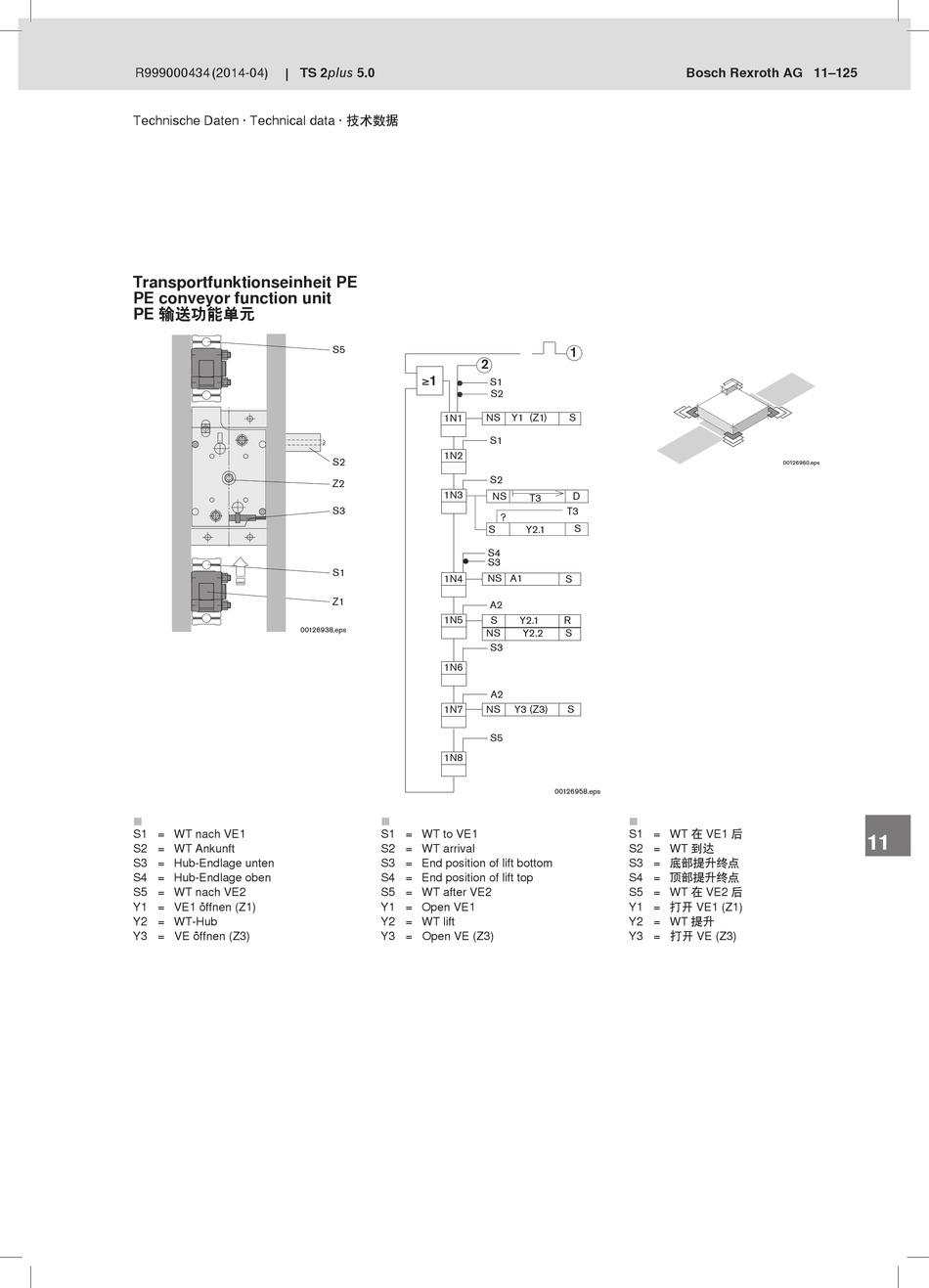

Transportfunktionseinheit Pe Pe Conveyor Function Unit - Bosch REXROTH TS 2plus Handbuch

R999000434 (2014-04) TS 2plus 5.0
Technische Daten · Technical data · 技术数据
Transportfunktionseinheit PE
PE conveyor function unit
PE 输送功能单元
00126938.eps

S1 = WT nach VE1
S2 = WT Ankunft
S3 = Hub-Endlage unten
S4 = Hub-Endlage oben
S5 = WT nach VE2
Y1 = VE1 öffnen (Z1)
Y2 = WT-Hub
Y3 = VE öffnen (Z3)
S5
2
S1
S2
1N1 NS
S1
1N2
S2
S2
Z2
1N3
NS
S3
?
S
S4
S3
S1
1N4 NS A1
Z1
A2
1N5 S
NS
S3
1N6
A2
1N7 NS
S5
1N8

S1 = WT to VE1
S2 = WT arrival
S3 = End position of lift bottom
S4 = End position of lift top
S5 = WT after VE2
Y1 = Open VE1
Y2 = WT lift
Y3 = Open VE (Z3)
Bosch Rexroth AG
1
Y1 (Z1) S
D
T3
T3
S
Y2.1
S
Y2.1 R
Y2.2 S
Y3 (Z3) S
00126958.eps

S1 = WT 在 VE1 后
S2 = WT 到达
S3 = 底部提升终点
S4 = 顶部提升终点
S5 = WT 在 VE2 后
Y1 = 打开 VE1 (Z1)
Y2 = WT 提升
Y3 = 打开 VE (Z3)
11–125
1
2
3
00126960.eps
4
5
6
7
8
9
10
11
12
13
14
15
16
17
