10. Setting via the R100
The Hydro Multi-E is designed for wireless communication with
the Grundfos R100 remote control.

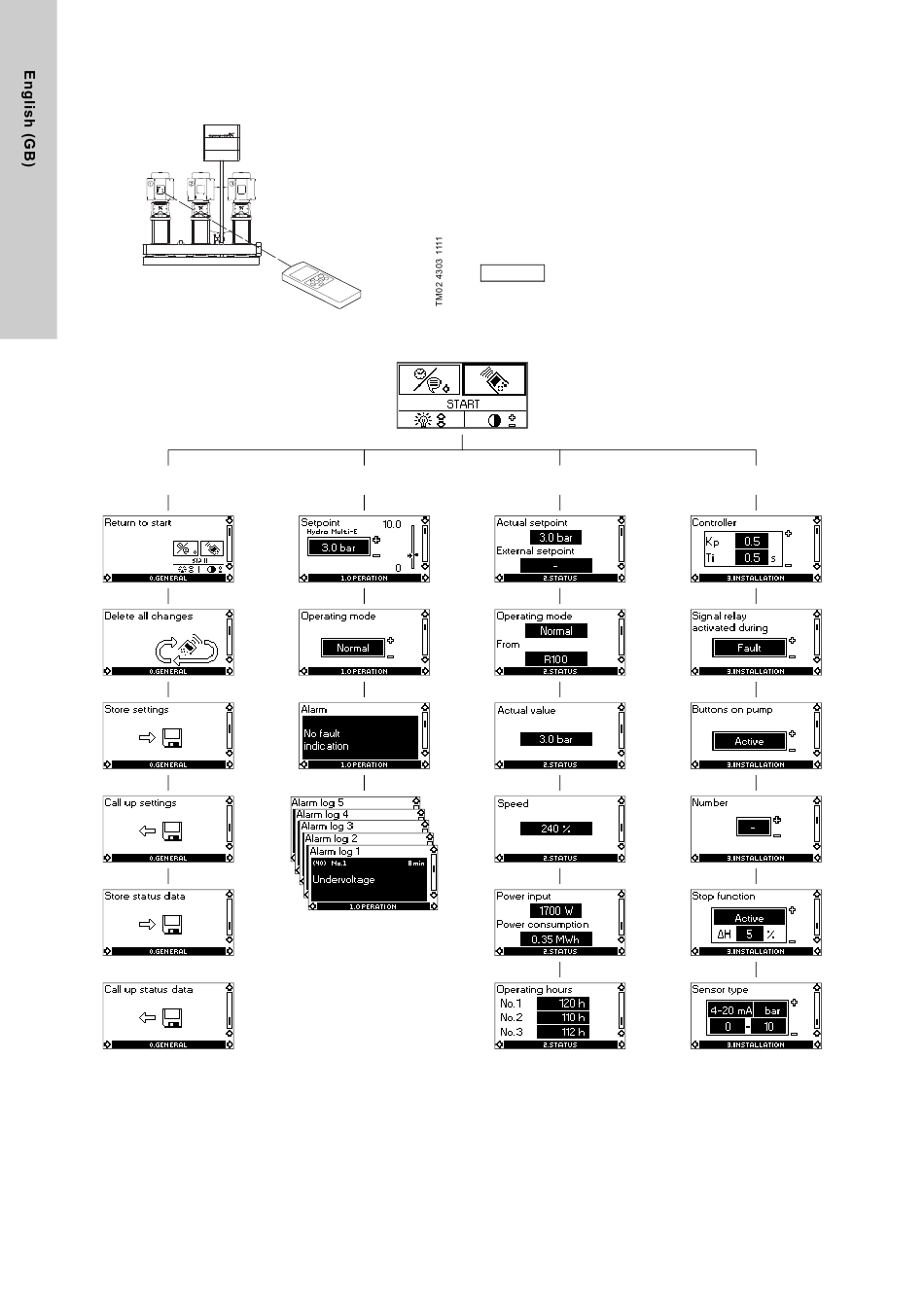

Fig. 25 R100 communicating with the Hydro Multi-E via
infra-red light
0. GENERAL
Fig. 26 Menu overview
14
1. OPERATION
10.1.1
10.1.2
10.1.3
10.1.4
During communication, the R100 must be pointed at the control
panel. When the R100 communicates with the Hydro Multi-E, the
red indicator light will flash rapidly.
The R100 offers setting and status displays for the Hydro Multi-E.
The displays are divided into four parallel menus (see fig. 26):
0. GENERAL (see operating instructions for the R100)
1. OPERATION
2. STATUS
3. INSTALLATION
The number above each individual display in fig.
section in which the display is described.
The menus may differ depending on remote
Note
control model.
2. STATUS
10.2.1
10.2.2
10.2.3
10.2.4
10.2.5
10.2.6
26 refers to the
3. INSTALLATION
10.3.1
10.3.2
10.3.3
10.3.4
10.3.5
10.3.6
