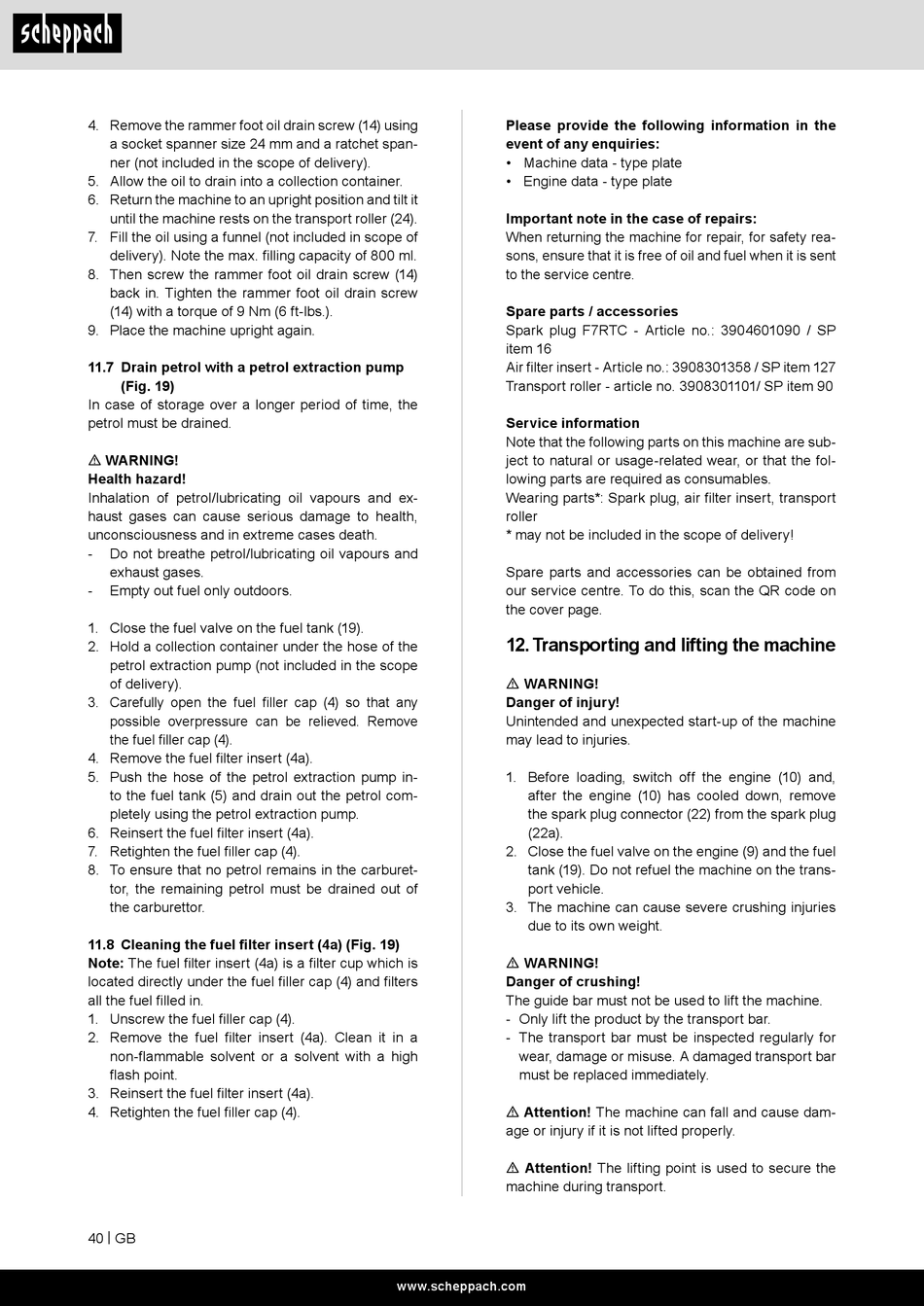

4. Remove the rammer foot oil drain screw (14) using
a socket spanner size 24 mm and a ratchet span-
ner (not included in the scope of delivery).
5. Allow the oil to drain into a collection container.
6. Return the machine to an upright position and tilt it
until the machine rests on the transport roller (24).
7. Fill the oil using a funnel (not included in scope of
delivery). Note the max. filling capacity of 800 ml.
8. Then screw the rammer foot oil drain screw (14)
back in. Tighten the rammer foot oil drain screw
(14) with a torque of 9 Nm (6 ft-lbs.).
9. Place the machine upright again.
11.7 Drain petrol with a petrol extraction pump
(Fig. 19)
In case of storage over a longer period of time, the
petrol must be drained.
m WARNING!
Health hazard!
Inhalation of petrol/lubricating oil vapours and ex-
haust gases can cause serious damage to health,
unconsciousness and in extreme cases death.
- Do not breathe petrol/lubricating oil vapours and
exhaust gases.
- Empty out fuel only outdoors.
1. Close the fuel valve on the fuel tank (19).
2. Hold a collection container under the hose of the
petrol extraction pump (not included in the scope
of delivery).
3. Carefully open the fuel filler cap (4) so that any
possible overpressure can be relieved. Remove
the fuel filler cap (4).
4. Remove the fuel filter insert (4a).
5. Push the hose of the petrol extraction pump in-
to the fuel tank (5) and drain out the petrol com-
pletely using the petrol extraction pump.
6. Reinsert the fuel filter insert (4a).
7. Retighten the fuel filler cap (4).
8. To ensure that no petrol remains in the carburet-
tor, the remaining petrol must be drained out of
the carburettor.
11.8 Cleaning the fuel filter insert (4a) (Fig. 19)
Note: The fuel filter insert (4a) is a filter cup which is
located directly under the fuel filler cap (4) and filters
all the fuel filled in.
1. Unscrew the fuel filler cap (4).
2. Remove the fuel filter insert (4a). Clean it in a
non-flammable solvent or a solvent with a high
flash point.
3. Reinsert the fuel filter insert (4a).
4. Retighten the fuel filler cap (4).
40 | GB
Please provide the following information in the
event of any enquiries:
• Machine data - type plate
• Engine data - type plate
Important note in the case of repairs:
When returning the machine for repair, for safety rea-
sons, ensure that it is free of oil and fuel when it is sent
to the service centre.
Spare parts / accessories
Spark plug F7RTC - Article no.: 3904601090 / SP
item 16
Air filter insert - Article no.: 3908301358 / SP item 127
Transport roller - article no. 3908301101/ SP item 90
Service information
Note that the following parts on this machine are sub-
ject to natural or usage-related wear, or that the fol-
lowing parts are required as consumables.
Wearing parts*: Spark plug, air filter insert, transport
roller
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from
our service centre. To do this, scan the QR code on
the cover page.
12. Transporting and lifting the machine
m WARNING!
Danger of injury!
Unintended and unexpected start-up of the machine
may lead to injuries.
1. Before loading, switch off the engine (10) and,
after the engine (10) has cooled down, remove
the spark plug connector (22) from the spark plug
(22a).
2. Close the fuel valve on the engine (9) and the fuel
tank (19). Do not refuel the machine on the trans-
port vehicle.
3. The machine can cause severe crushing injuries
due to its own weight.
m WARNING!
Danger of crushing!
The guide bar must not be used to lift the machine.
- Only lift the product by the transport bar.
- The transport bar must be inspected regularly for
wear, damage or misuse. A damaged transport bar
must be replaced immediately.
m Attention! The machine can fall and cause dam-
age or injury if it is not lifted properly.
m Attention! The lifting point is used to secure the
machine during transport.
