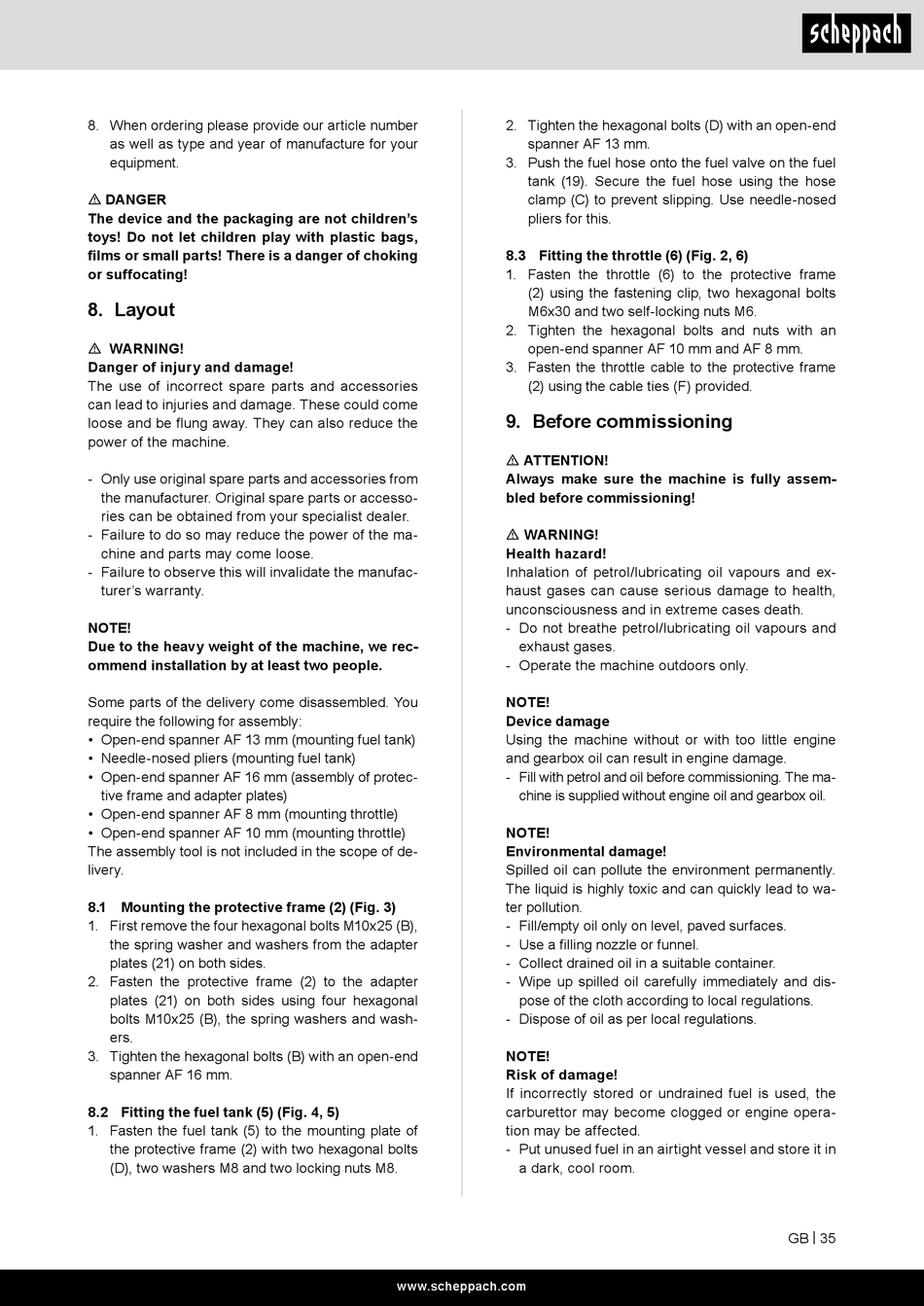

Scheppach VS1000 Originalbetriebsanleitung Seite 35

8. When ordering please provide our article number
as well as type and year of manufacture for your
equipment.
m DANGER
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
8. Layout
m WARNING!
Danger of injury and damage!
The use of incorrect spare parts and accessories
can lead to injuries and damage. These could come
loose and be flung away. They can also reduce the
power of the machine.
- Only use original spare parts and accessories from
the manufacturer. Original spare parts or accesso-
ries can be obtained from your specialist dealer.
- Failure to do so may reduce the power of the ma-
chine and parts may come loose.
- Failure to observe this will invalidate the manufac-
turer's warranty.
NOTE!
Due to the heavy weight of the machine, we rec-
ommend installation by at least two people.
Some parts of the delivery come disassembled. You
require the following for assembly:
• Open-end spanner AF 13 mm (mounting fuel tank)
• Needle-nosed pliers (mounting fuel tank)
• Open-end spanner AF 16 mm (assembly of protec-
tive frame and adapter plates)
• Open-end spanner AF 8 mm (mounting throttle)
• Open-end spanner AF 10 mm (mounting throttle)
The assembly tool is not included in the scope of de-
livery.
8.1 Mounting the protective frame (2) (Fig. 3)
1. First remove the four hexagonal bolts M10x25 (B),
the spring washer and washers from the adapter
plates (21) on both sides.
2. Fasten the protective frame (2) to the adapter
plates (21) on both sides using four hexagonal
bolts M10x25 (B), the spring washers and wash-
ers.
3. Tighten the hexagonal bolts (B) with an open-end
spanner AF 16 mm.
8.2 Fitting the fuel tank (5) (Fig. 4, 5)
1. Fasten the fuel tank (5) to the mounting plate of
the protective frame (2) with two hexagonal bolts
(D), two washers M8 and two locking nuts M8.
2. Tighten the hexagonal bolts (D) with an open-end
spanner AF 13 mm.
3. Push the fuel hose onto the fuel valve on the fuel
tank (19). Secure the fuel hose using the hose
clamp (C) to prevent slipping. Use needle-nosed
pliers for this.
8.3 Fitting the throttle (6) (Fig. 2, 6)
1. Fasten the throttle (6) to the protective frame
(2) using the fastening clip, two hexagonal bolts
M6x30 and two self-locking nuts M6.
2. Tighten the hexagonal bolts and nuts with an
open-end spanner AF 10 mm and AF 8 mm.
3. Fasten the throttle cable to the protective frame
(2) using the cable ties (F) provided.
9. Before commissioning
m ATTENTION!
Always make sure the machine is fully assem-
bled before commissioning!
m WARNING!
Health hazard!
Inhalation of petrol/lubricating oil vapours and ex-
haust gases can cause serious damage to health,
unconsciousness and in extreme cases death.
- Do not breathe petrol/lubricating oil vapours and
exhaust gases.
- Operate the machine outdoors only.
NOTE!
Device damage
Using the machine without or with too little engine
and gearbox oil can result in engine damage.
- Fill with petrol and oil before commissioning. The ma-
chine is supplied without engine oil and gearbox oil.
NOTE!
Environmental damage!
Spilled oil can pollute the environment permanently.
The liquid is highly toxic and can quickly lead to wa-
ter pollution.
- Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
- Collect drained oil in a suitable container.
- Wipe up spilled oil carefully immediately and dis-
pose of the cloth according to local regulations.
- Dispose of oil as per local regulations.
NOTE!
Risk of damage!
If incorrectly stored or undrained fuel is used, the
carburettor may become clogged or engine opera-
tion may be affected.
- Put unused fuel in an airtight vessel and store it in
a dark, cool room.
