Scale 0 986; Weight 0 986 - Bosch Denoxtronic 2.2 Produktbeschreibung

en | 30 | Denoxtronic 2.2 | Product description
3.18 Scale 0 986 610 838
The scale is used during the function test of the
AdBlue supply module to measure return flow and the
metered amount. The amount collected in a beaker
from the beaker set 0 986 610 460 is weighed on the
scale to evaluate the target values.
i
The weight 0 986 610 839 must be used to calibrate
the scale (see section 3.19).
i
If the scale is defective, it must be replaced.

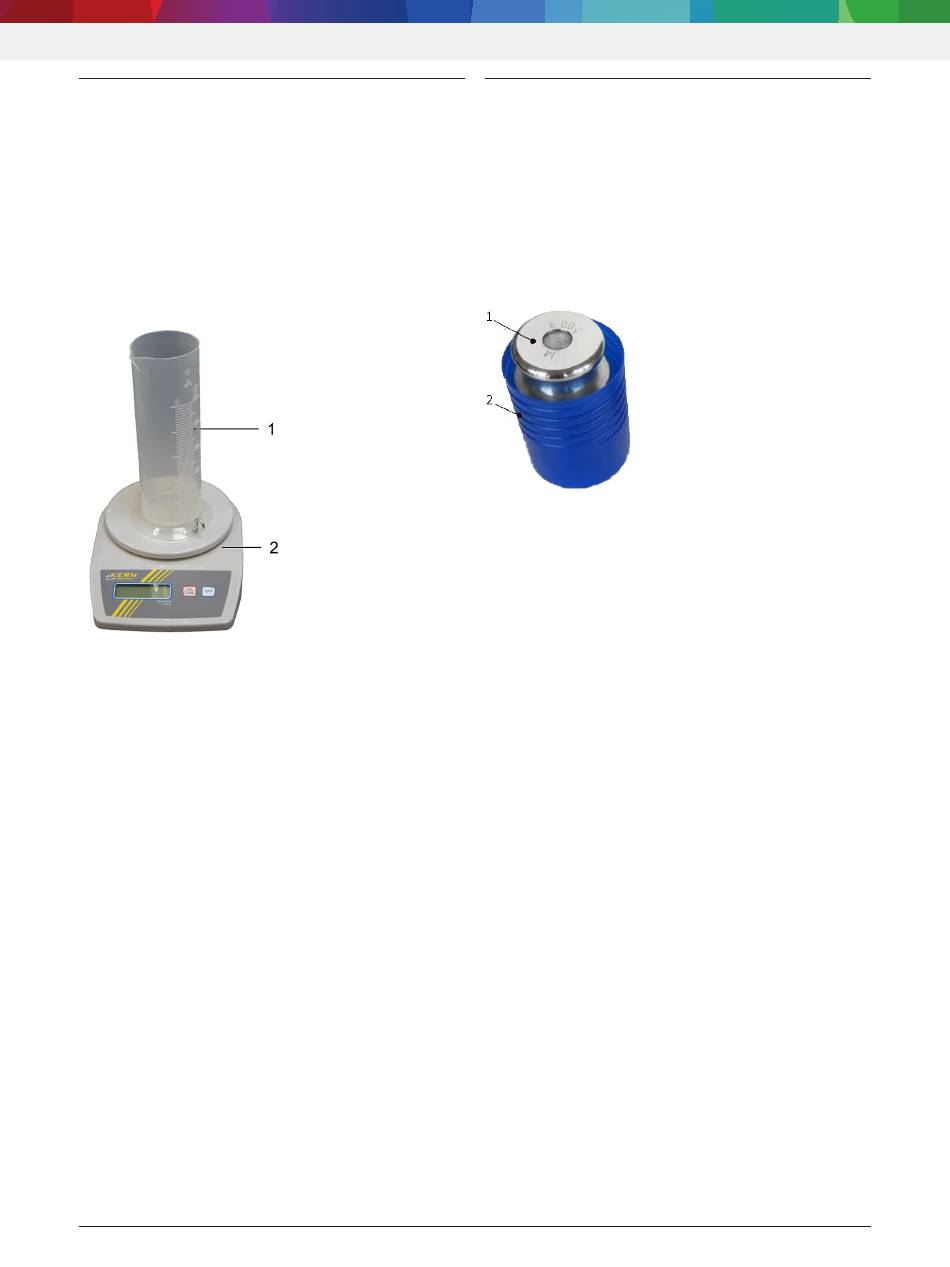

Fig. 13:

Scale 0 986 610 838

1 Scale (0 – 500 g)
2 Beaker from beaker set 0 986 610 460
i
Detailed instructions on use and handling can be
found in the separate ESI[tronic] repair instruc-
tions Denoxtronic 2.2.
|
1 689 989 394 2023-01-24
3.19 Weight 0 986 610 839
The weight (fig. 14, item 1) is used to calibrate the

scale 0 986 610 838.

i
Always keep the weight in a closed container
(fig. 14, item 2) to protect it from damage before
and after use.
i
Have the weight checked every two years by a
recognized workshop.
Fig. 14:

Weight 0 986 610 839

1 Weight 500g +/- 0.8 mg (class M)
2 2- part container (the bottom part is shown)
i
Detailed instructions on calibration can be found in
the operating instructions for the scale.
