3.10 Parts set for drain valve 0 986 615 075
Screw the parts set onto pressure gauge 1 687 231 906.
i
When screwing the parts set, hold the pressure
gauge with an open-ended wrench.
i
A shutoff valve (fig. 7, item 1) is in the top area of
the parts set for ventilation.
i
During testing, make sure that the shutoff valve
remains closed.
!
When connecting the test lines to the quick-release
coupling (fig. 7, item 2), make sure that it locks
securely into place; otherwise, the danger exists of
the coupling coming loose during testing and the
test medium escaping under pressure (approx. 900
kPa).

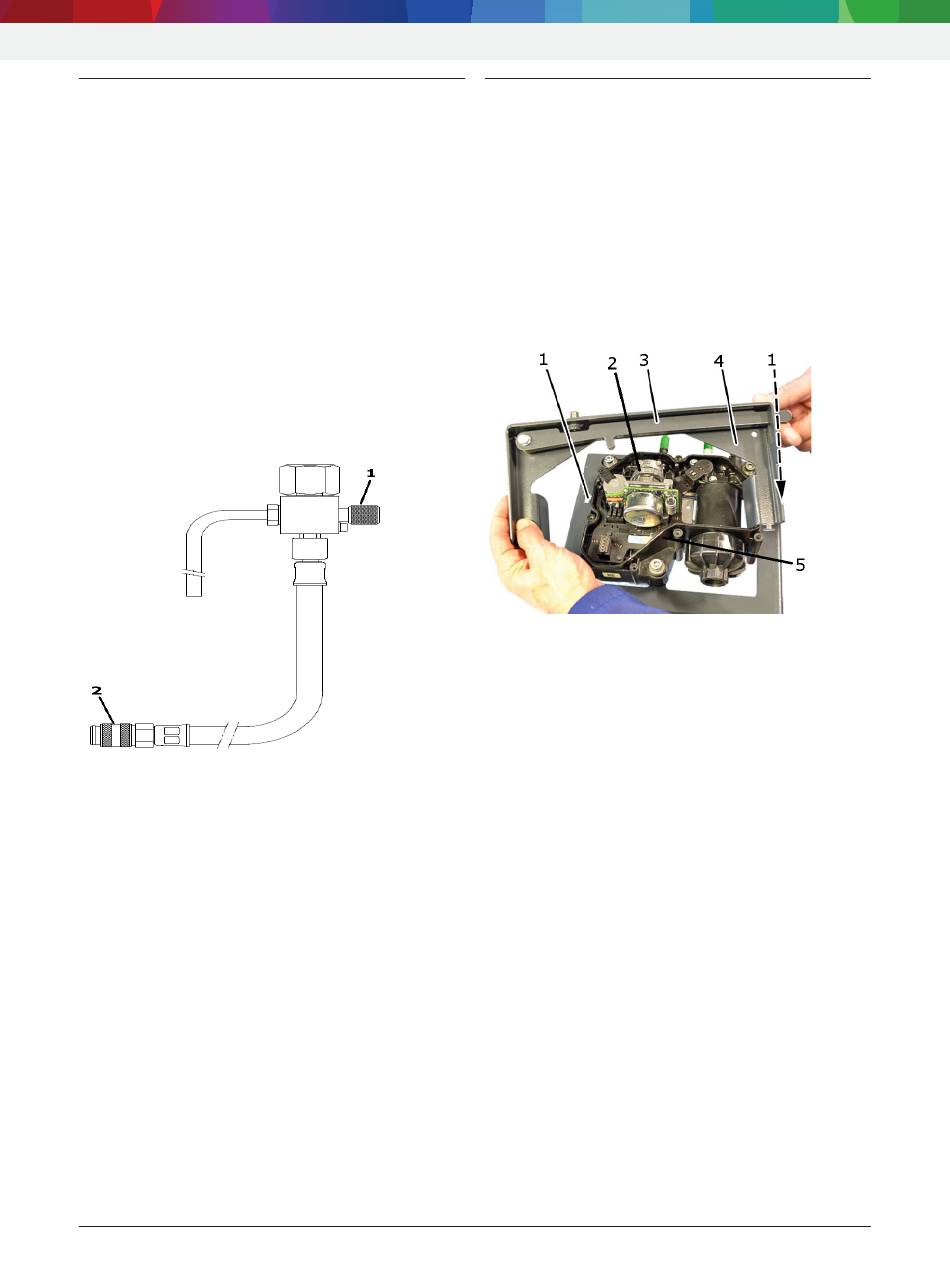

Fig. 7:

Parts set for drain valve 0 986 615 075

1 Shutoff valve
2 Quick-release coupling G 1/8
i
Detailed instructions on use and handling can be
found in the separate ESI[tronic] repair instruc-
tions Denoxtronic 2.2.
Robert Bosch GmbH
Product description | Denoxtronic 2.2 | 27 |
3.11 Base plate 0 986 613 550
The AdBlue supply module (fig. 8, item 5) is attached
to the base plate (fig. 8, item 1).
i
Make sure that the base plate is clean.
i
Regularly lubricate the fastening threads of the
base plate so that they function smoothly.
!
Defective base plates may not be reused and must
be completely replaced.
Fig. 8: Base plate 0 986 613 550 /installation frame
0 986 610 280

1 Base plate 0 986 613 550

2 AdBlue supply pump
3 Mounting frame operating lever

4 Mounting frame 0 986 610 280

5 AdBlue supply module (partly disassembled)
i
Detailed instructions on use and handling can be
found in the separate ESI[tronic] repair instruc-
tions Denoxtronic 2.2.
