7. Trocar disassembly
7.1 Removing the obturator for work-
ing/drainage channels
Note
This step is only necessary if the obturator for the work-
ing or drainage channel is being used.
►

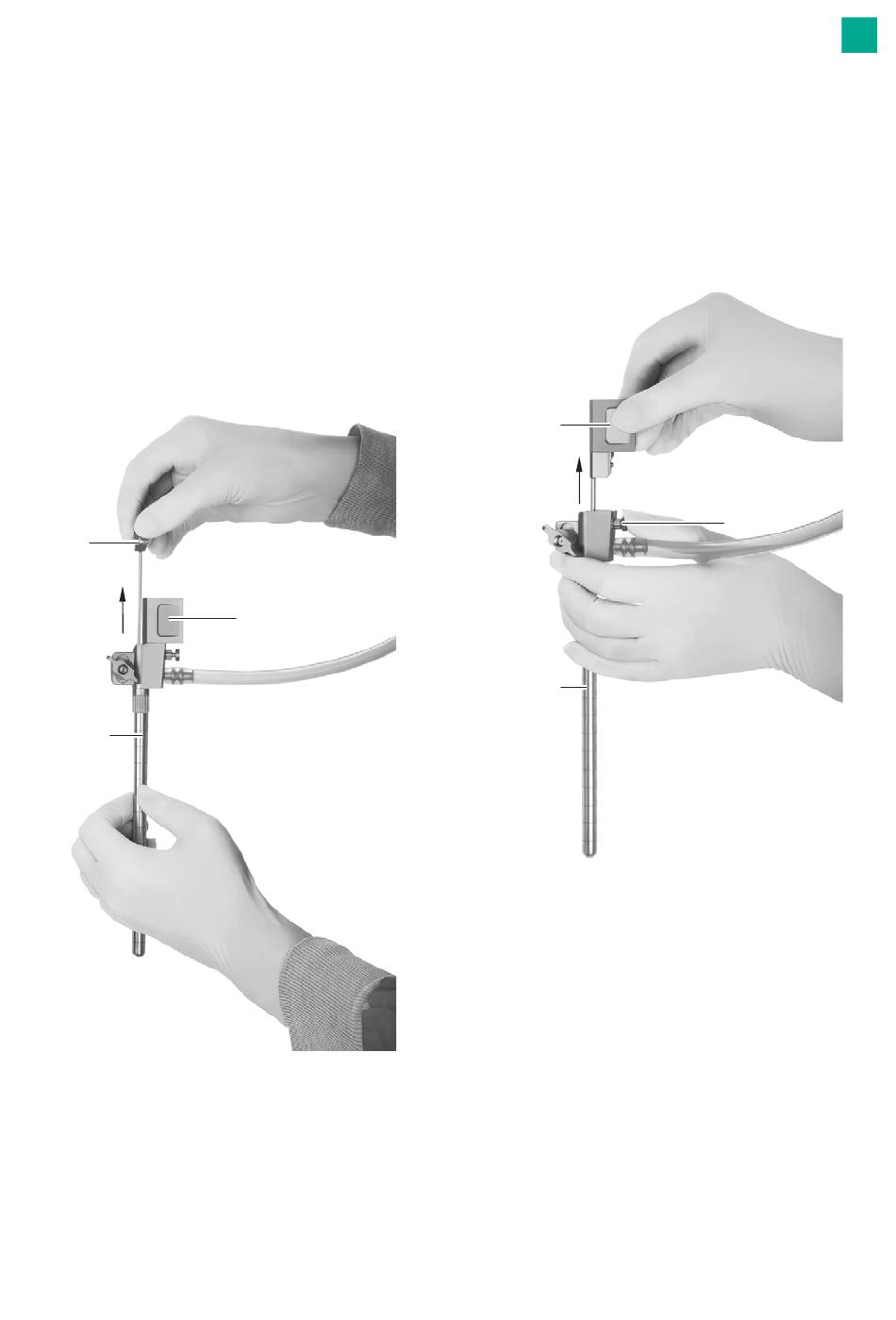

Remove the obturator for the oval working
channel 7 carefully from the MINOP InVent
trocar 1, see Fig. 9.
7
1
Fig. 9
8
7.2 Removing the obturator for opti-
cal channel or endoscope
►
Press the release button 3 and carefully remove the
obturator for the optical channel 8 from the
MINOP InVent trocar 1, see Fig. 10.
8
1
Fig. 10
