KAPITEL 3: Messung und Einstellung
•
Ringmessung, wenn der Aufzeichnungsort nicht das interne RAM ist

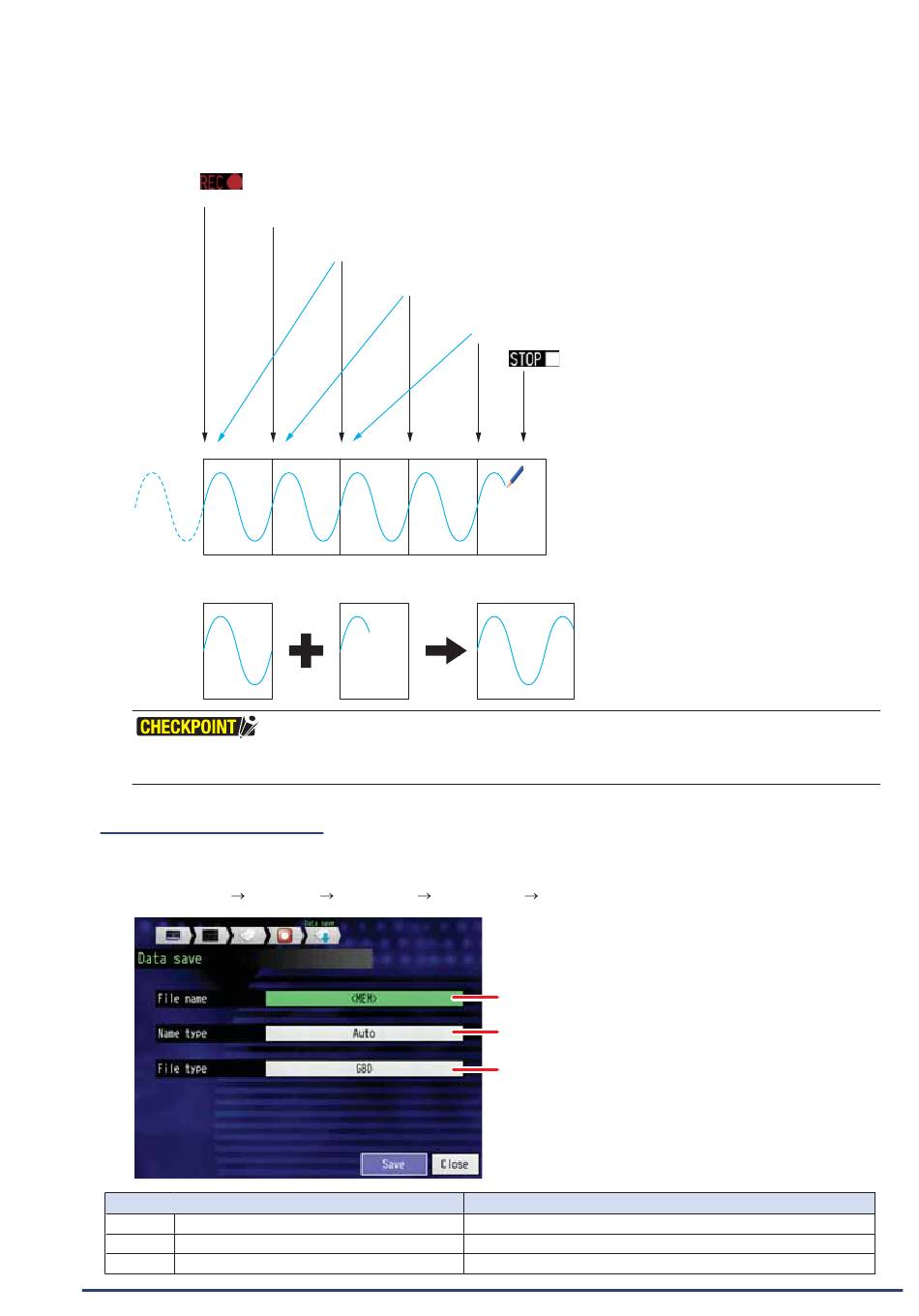

Wenn ein anderer Aufzeichnungsort als das interne RAM gewählt wurde, läuft die Ringmessung folgendermaßen ab.
Data recording start.
Data recording to File1 started.
File1
If recording is stopped at the STOP point, File4 and File5 remain.
These 2 files are joined into 1 file and recording is finished.
File4
•
Die maximale Anzahl von Dateien entspricht dem Zweifachen der Anzahl der Messpunkte.
•
Die maximale Anzahl von Messpunkten entspricht 1/3 der verfügbaren Speicherkapazität.
(1)-7 Messdaten speichern
Dient zum Festlegen des Dateinamens und Ordnernamens für den Aufzeichnungsort oder das Ziel der automatischen
Speicherung.
(„Startseite (Home)"
„Maschine"
Parameter
(1)
Dateiname
(2)
Dateiname festlegen
(3)
Dateityp
3-52
If the recording surpasses the number of points specified in
"Number of ring capture points", data is then recorded to File2.
If the recording surpasses the number of points specified in
"Number of ring capture points", data is then recorded to File3.
At this point, File1 is deleted.
If the recording surpasses the number of points specified in
"Number of ring capture points", data is then recorded to File4.
At this point, File2 is deleted.
File2
File3
File4
File5
„Messdaten"
„Aufzeichnen"
If the recording surpasses the number of points specified in
"Number of ring capture points", data is then recorded to File5.
At this point, File3 is deleted.
* These actions are repeated.
Stop data recording
File5
Filexx... File at the end
„Messdaten speichern")
(1) File name (Dateiname)
(2) Name Type (Dateiname festlegen)
(3) File Type (Dateityp)
Auswahlbeispiel
Datei- oder Ordnername
Automatisch, Anwender, Seriennummer
GBD (binär), CSV (Text)
