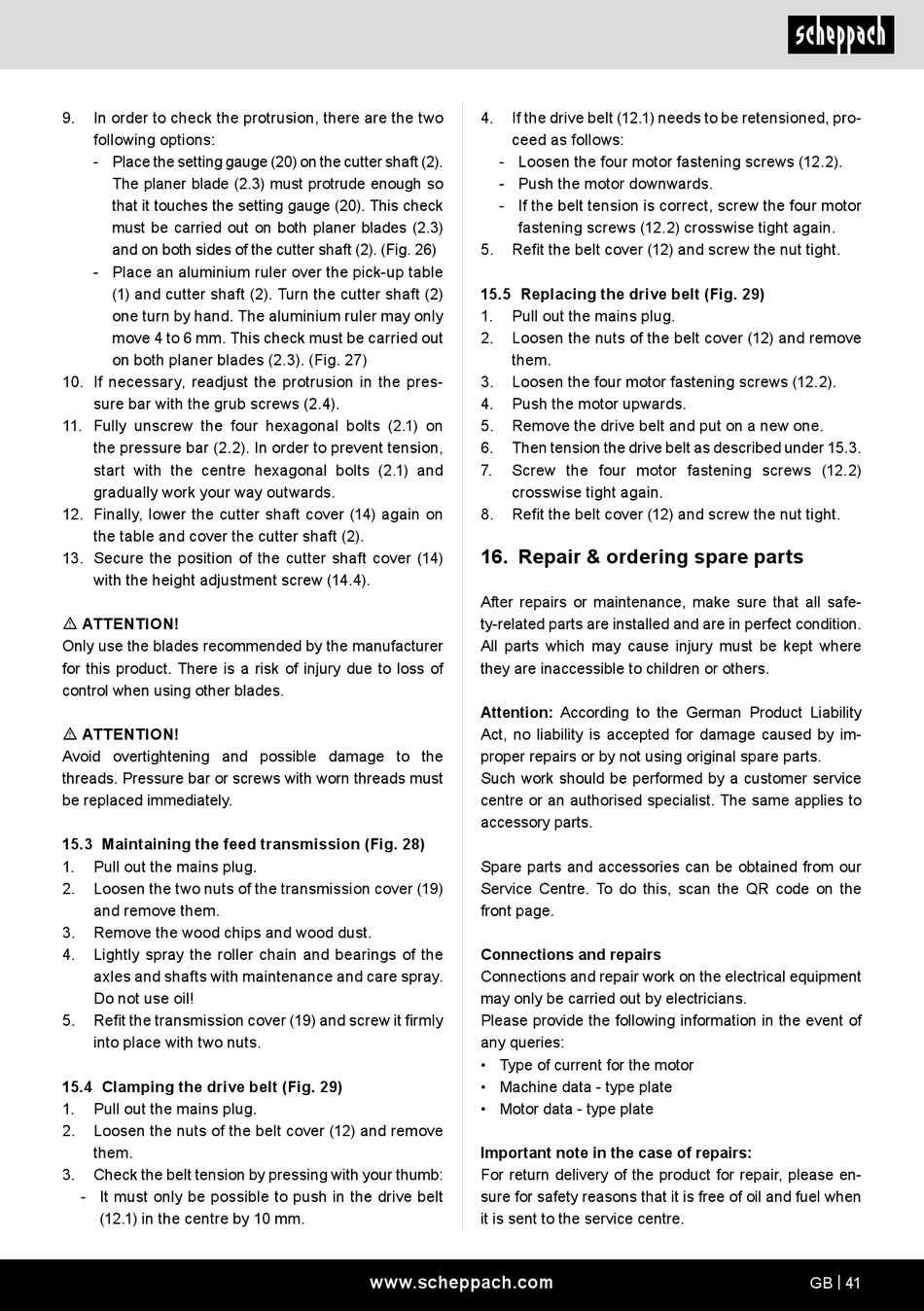

9. In order to check the protrusion, there are the two
following options:
- Place the setting gauge (20) on the cutter shaft (2).
The planer blade (2.3) must protrude enough so
that it touches the setting gauge (20). This check
must be carried out on both planer blades (2.3)
and on both sides of the cutter shaft (2). (Fig. 26)
- Place an aluminium ruler over the pick-up table
(1) and cutter shaft (2). Turn the cutter shaft (2)
one turn by hand. The aluminium ruler may only
move 4 to 6 mm. This check must be carried out
on both planer blades (2.3). (Fig. 27)
10. If necessary, readjust the protrusion in the pres-
sure bar with the grub screws (2.4).
11. Fully unscrew the four hexagonal bolts (2.1) on
the pressure bar (2.2). In order to prevent tension,
start with the centre hexagonal bolts (2.1) and
gradually work your way outwards.
12. Finally, lower the cutter shaft cover (14) again on
the table and cover the cutter shaft (2).
13. Secure the position of the cutter shaft cover (14)
with the height adjustment screw (14.4).
m ATTENTION!
Only use the blades recommended by the manufacturer
for this product. There is a risk of injury due to loss of
control when using other blades.
m ATTENTION!
Avoid overtightening and possible damage to the
threads. Pressure bar or screws with worn threads must
be replaced immediately.
15.3 Maintaining the feed transmission (Fig. 28)
1. Pull out the mains plug.
2. Loosen the two nuts of the transmission cover (19)
and remove them.
3. Remove the wood chips and wood dust.
4. Lightly spray the roller chain and bearings of the
axles and shafts with maintenance and care spray.
Do not use oil!
5. Refit the transmission cover (19) and screw it firmly
into place with two nuts.
15.4 Clamping the drive belt (Fig. 29)
1. Pull out the mains plug.
2. Loosen the nuts of the belt cover (12) and remove
them.
3. Check the belt tension by pressing with your thumb:
- It must only be possible to push in the drive belt
(12.1) in the centre by 10 mm.
4. If the drive belt (12.1) needs to be retensioned, pro-
ceed as follows:
- Loosen the four motor fastening screws (12.2).
- Push the motor downwards.
- If the belt tension is correct, screw the four motor
fastening screws (12.2) crosswise tight again.
5. Refit the belt cover (12) and screw the nut tight.
15.5 Replacing the drive belt (Fig. 29)
1. Pull out the mains plug.
2. Loosen the nuts of the belt cover (12) and remove
them.
3. Loosen the four motor fastening screws (12.2).
4. Push the motor upwards.
5. Remove the drive belt and put on a new one.
6. Then tension the drive belt as described under 15.3.
7. Screw the four motor fastening screws (12.2)
crosswise tight again.
8. Refit the belt cover (12) and screw the nut tight.
16. Repair & ordering spare parts
After repairs or maintenance, make sure that all safe-
ty-related parts are installed and are in perfect condition.
All parts which may cause injury must be kept where
they are inaccessible to children or others.
Attention: According to the German Product Liability
Act, no liability is accepted for damage caused by im-
proper repairs or by not using original spare parts.
Such work should be performed by a customer service
centre or an authorised specialist. The same applies to
accessory parts.
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
Connections and repairs
Connections and repair work on the electrical equipment
may only be carried out by electricians.
Please provide the following information in the event of
any queries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
Important note in the case of repairs:
For return delivery of the product for repair, please en-
sure for safety reasons that it is free of oil and fuel when
it is sent to the service centre.
