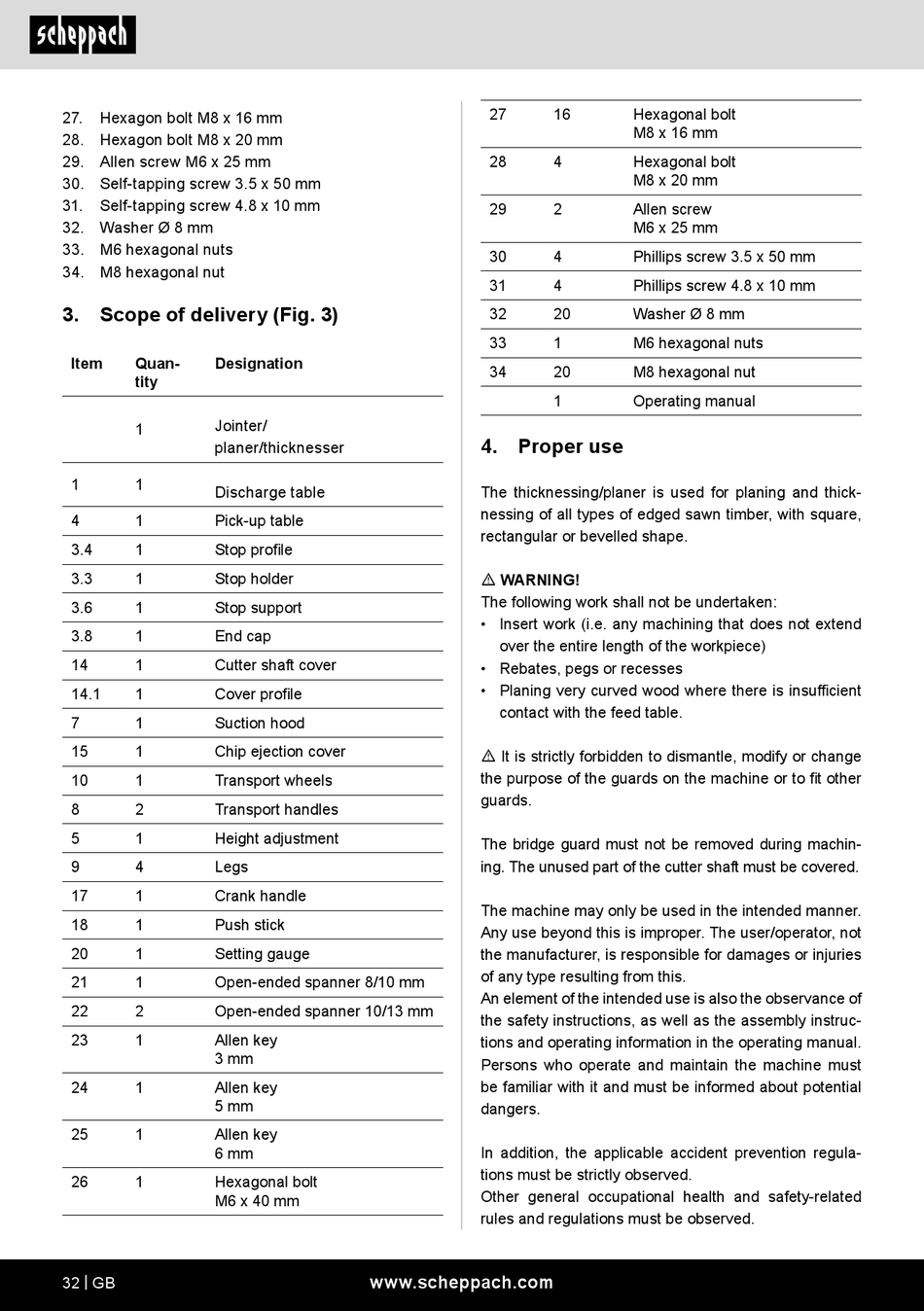

Scheppach HMS1500 Originalbetriebsanleitung Seite 32

27. Hexagon bolt M8 x 16 mm
28. Hexagon bolt M8 x 20 mm
29. Allen screw M6 x 25 mm
30. Self-tapping screw 3.5 x 50 mm
31. Self-tapping screw 4.8 x 10 mm
32. Washer Ø 8 mm
33. M6 hexagonal nuts
34. M8 hexagonal nut
3. Scope of delivery (Fig. 3)
Item Quan- Designation
tity
Jointer/
1
planer/thicknesser
1 1
Discharge table
4 1 Pick-up table
3.4 1 Stop profile
3.3 1 Stop holder
3.6 1 Stop support
3.8 1 End cap
14 1 Cutter shaft cover
14.1 1 Cover profile
7 1 Suction hood
15 1 Chip ejection cover
10 1 Transport wheels
8 2 Transport handles
5 1 Height adjustment
9 4 Legs
17 1 Crank handle
18 1 Push stick
20 1 Setting gauge
21 1 Open-ended spanner 8/10 mm
22 2 Open-ended spanner 10/13 mm
23 1 Allen key
3 mm
24 1 Allen key
5 mm
25 1 Allen key
6 mm
26 1 Hexagonal bolt
M6 x 40 mm
32 | GB
27
28
29
30
31
32
33
34
4. Proper use
The thicknessing/planer is used for planing and thick-
nessing of all types of edged sawn timber, with square,
rectangular or bevelled shape.
m WARNING!
The following work shall not be undertaken:
• Insert work (i.e. any machining that does not extend
over the entire length of the workpiece)
• Rebates, pegs or recesses
• Planing very curved wood where there is insufficient
contact with the feed table.
m It is strictly forbidden to dismantle, modify or change
the purpose of the guards on the machine or to fit other
guards.
The bridge guard must not be removed during machin-
ing. The unused part of the cutter shaft must be covered.
The machine may only be used in the intended manner.
Any use beyond this is improper. The user/operator, not
the manufacturer, is responsible for damages or injuries
of any type resulting from this.
An element of the intended use is also the observance of
the safety instructions, as well as the assembly instruc-
tions and operating information in the operating manual.
Persons who operate and maintain the machine must
be familiar with it and must be informed about potential
dangers.
In addition, the applicable accident prevention regula-
tions must be strictly observed.
Other general occupational health and safety-related
rules and regulations must be observed.
www.scheppach.com
16 Hexagonal bolt
M8 x 16 mm
4 Hexagonal bolt
M8 x 20 mm
2 Allen screw
M6 x 25 mm
4 Phillips screw 3.5 x 50 mm
4 Phillips screw 4.8 x 10 mm
20 Washer Ø 8 mm
1 M6 hexagonal nuts
20 M8 hexagonal nut
1 Operating manual
