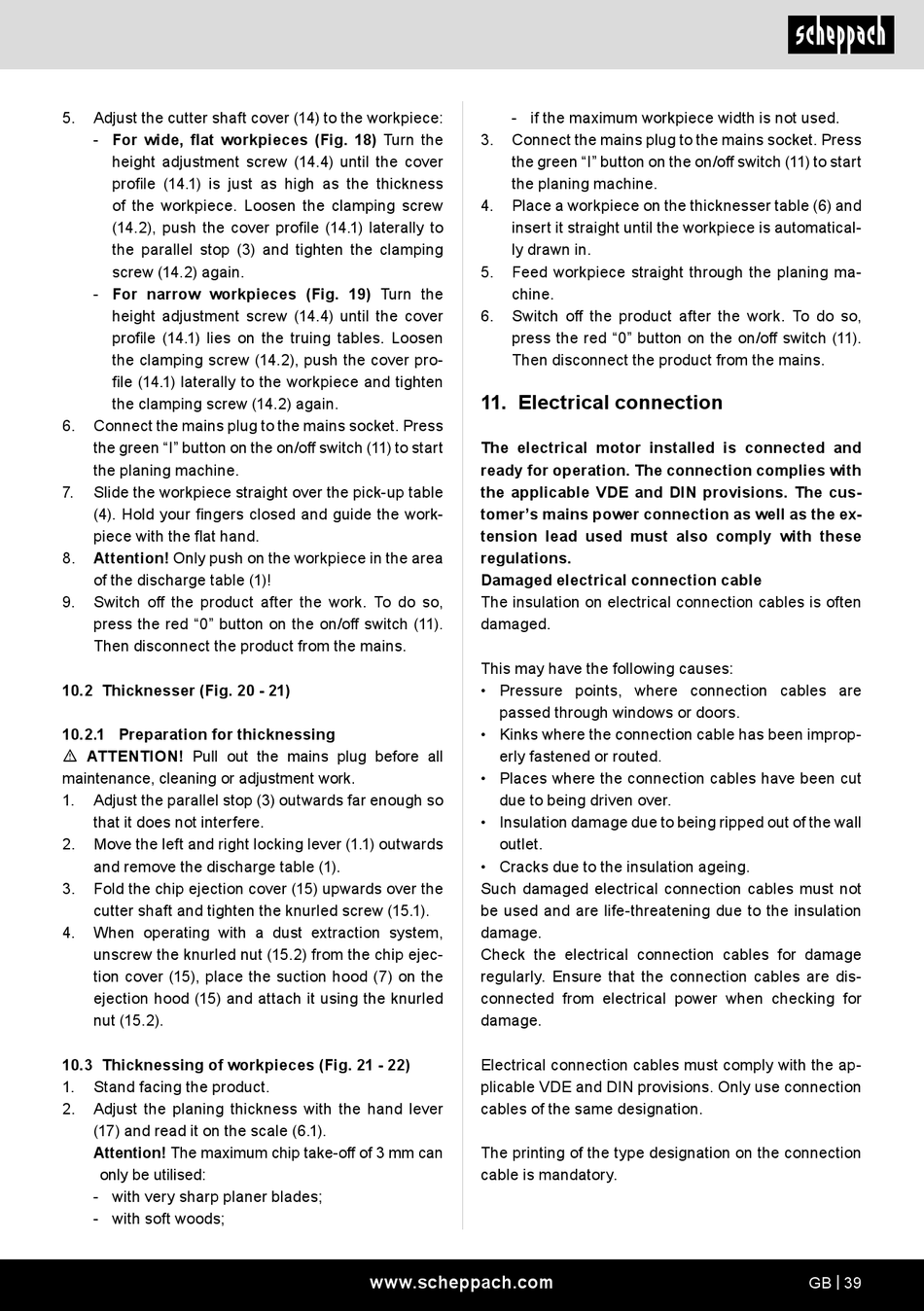

5.
Adjust the cutter shaft cover (14) to the workpiece:
- For wide, flat workpieces (Fig. 18) Turn the
height adjustment screw (14.4) until the cover
profile (14.1) is just as high as the thickness
of the workpiece. Loosen the clamping screw
(14.2), push the cover profile (14.1) laterally to
the parallel stop (3) and tighten the clamping
screw (14.2) again.
- For narrow workpieces (Fig. 19) Turn the
height adjustment screw (14.4) until the cover
profile (14.1) lies on the truing tables. Loosen
the clamping screw (14.2), push the cover pro-
file (14.1) laterally to the workpiece and tighten
the clamping screw (14.2) again.
6.
Connect the mains plug to the mains socket. Press
the green "I" button on the on/off switch (11) to start
the planing machine.
7.
Slide the workpiece straight over the pick-up table
(4). Hold your fingers closed and guide the work-
piece with the flat hand.
Attention! Only push on the workpiece in the area
8.
of the discharge table (1)!
9.
Switch off the product after the work. To do so,
press the red "0" button on the on/off switch (11).
Then disconnect the product from the mains.
10.2 Thicknesser (Fig. 20 - 21)
10.2.1 Preparation for thicknessing
m ATTENTION! Pull out the mains plug before all
maintenance, cleaning or adjustment work.
1.
Adjust the parallel stop (3) outwards far enough so
that it does not interfere.
2.
Move the left and right locking lever (1.1) outwards
and remove the discharge table (1).
3.
Fold the chip ejection cover (15) upwards over the
cutter shaft and tighten the knurled screw (15.1).
4.
When operating with a dust extraction system,
unscrew the knurled nut (15.2) from the chip ejec-
tion cover (15), place the suction hood (7) on the
ejection hood (15) and attach it using the knurled
nut (15.2).
10.3 Thicknessing of workpieces (Fig. 21 - 22)
1.
Stand facing the product.
2.
Adjust the planing thickness with the hand lever
(17) and read it on the scale (6.1).
Attention! The maximum chip take-off of 3 mm can
only be utilised:
- with very sharp planer blades;
- with soft woods;
- if the maximum workpiece width is not used.
3.
Connect the mains plug to the mains socket. Press
the green "I" button on the on/off switch (11) to start
the planing machine.
4.
Place a workpiece on the thicknesser table (6) and
insert it straight until the workpiece is automatical-
ly drawn in.
5.
Feed workpiece straight through the planing ma-
chine.
6.
Switch off the product after the work. To do so,
press the red "0" button on the on/off switch (11).
Then disconnect the product from the mains.
11. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The cus-
tomer's mains power connection as well as the ex-
tension lead used must also comply with these
regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables of the same designation.
The printing of the type designation on the connection
cable is mandatory.
www.scheppach.com
GB | 39
