IT

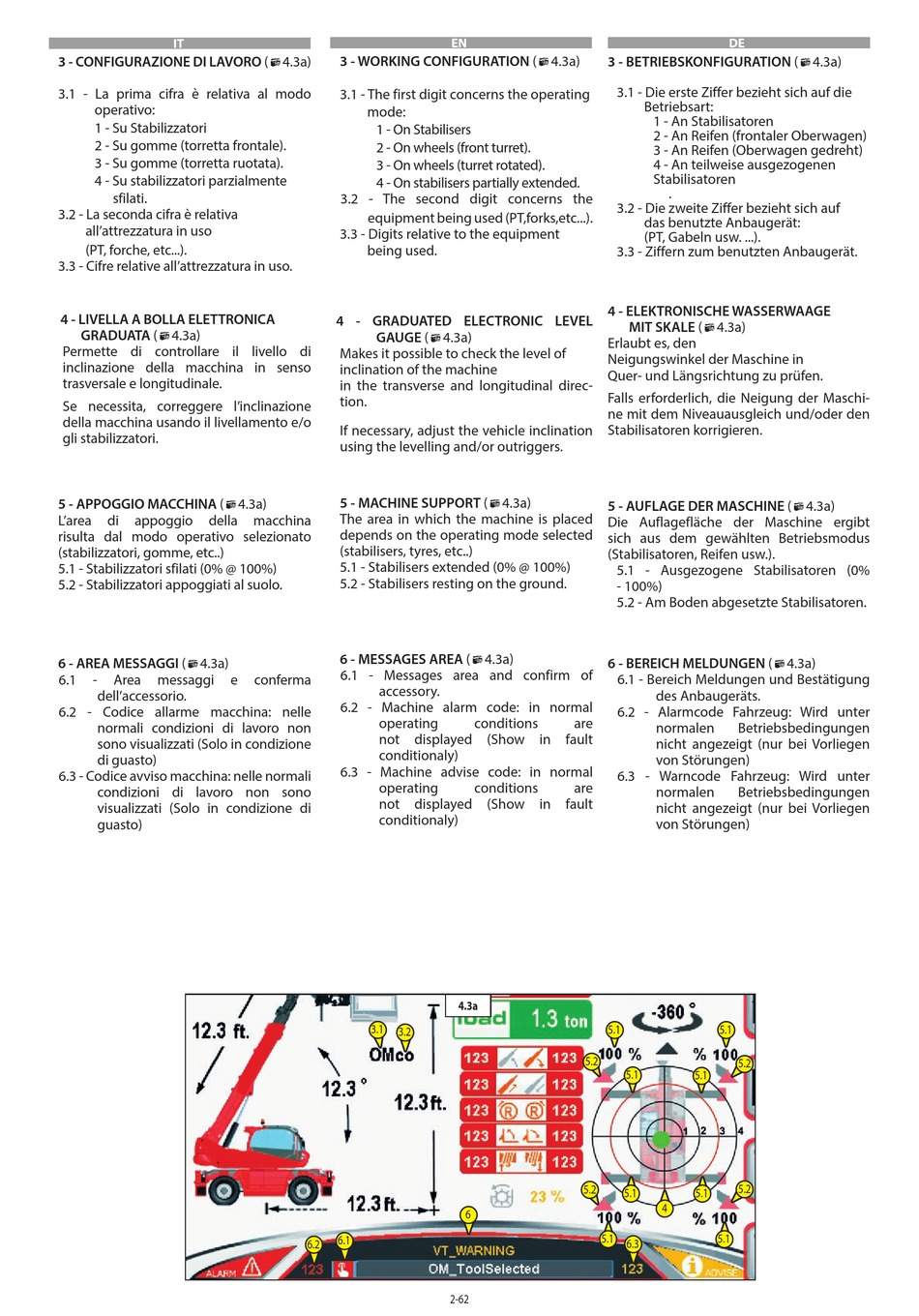

3 - CONFIGURAZIONE DI LAVORO (4.3a)
3.1 - La prima cifra è relativa al modo
operativo:
1 - Su Stabilizzatori
2 - Su gomme (torretta frontale).
3 - Su gomme (torretta ruotata).
4 - Su stabilizzatori parzialmente
sfilati.
3.2 - La seconda cifra è relativa
all'attrezzatura in uso
(PT, forche, etc...).
3.3 - Cifre relative all'attrezzatura in uso.
4 - LIVELLA A BOLLA ELETTRONICA
GRADUATA (4.3a)
Permette di controllare il livello di
inclinazione della macchina in senso
trasversale e longitudinale.
Se necessita, correggere l'inclinazione
della macchina usando il livellamento e/o
gli stabilizzatori.
5 - APPOGGIO MACCHINA (4.3a)
L'area
di
appoggio
della
risulta dal modo operativo selezionato
(stabilizzatori, gomme, etc..)
5.1 - Stabilizzatori sfilati (0% @ 100%)
5.2 - Stabilizzatori appoggiati al suolo.
6 - AREA MESSAGGI (4.3a)
6.1
-
Area
messaggi
e
dell'accessorio.
6.2 - Codice allarme macchina: nelle
normali condizioni di lavoro non
sono visualizzati (Solo in condizione
di guasto)
6.3 - Codice avviso macchina: nelle normali
condizioni di lavoro non sono
visualizzati (Solo in condizione di
guasto)
3 - WORKING CONFIGURATION (4.3a)
3.1 - The first digit concerns the operating
mode:
1 - On Stabilisers
2 - On wheels (front turret).
3 - On wheels (turret rotated).
4 - On stabilisers partially extended.
3.2 - The second digit concerns the
equipment being used (PT,forks,etc...).
3.3 - Digits relative to the equipment
being used.
4 - GRADUATED ELECTRONIC LEVEL
GAUGE (4.3a)
Makes it possible to check the level of
inclination of the machine
in the transverse and longitudinal direc-
tion.
If necessary, adjust the vehicle inclination
using the levelling and/or outriggers.
5 - MACHINE SUPPORT (4.3a)
The area in which the machine is placed
macchina
depends on the operating mode selected
(stabilisers, tyres, etc..)
5.1 - Stabilisers extended (0% @ 100%)
5.2 - Stabilisers resting on the ground.
6 - MESSAGES AREA (4.3a)
6.1 - Messages area and confirm of
conferma
accessory.
6.2 - Machine alarm code: in normal
operating
not displayed (Show in fault
conditionaly)
6.3 - Machine advise code: in normal
operating
not displayed (Show in fault
conditionaly)
3.1
3.2
6.1
6.2
EN
EN
3 - BETRIEBSKONFIGURATION (4.3a)
3.1 - Die erste Ziffer bezieht sich auf die
3.2 - Die zweite Ziffer bezieht sich auf
3.3 - Ziffern zum benutzten Anbaugerät.
4 - ELEKTRONISCHE WASSERWAAGE
Erlaubt es, den
Neigungswinkel der Maschine in
Quer- und Längsrichtung zu prüfen.
Falls erforderlich, die Neigung der Maschi-
ne mit dem Niveauausgleich und/oder den
Stabilisatoren korrigieren.
5 - AUFLAGE DER MASCHINE (4.3a)
Die Auflagefläche der Maschine ergibt
sich aus dem gewählten Betriebsmodus
(Stabilisatoren, Reifen usw.).
5.1 - Ausgezogene Stabilisatoren (0%
- 100%)
5.2 - Am Boden abgesetzte Stabilisatoren.
6 - BEREICH MELDUNGEN (4.3a)
6.1 - Bereich Meldungen und Bestätigung
6.2 - Alarmcode Fahrzeug: Wird unter
conditions
are
6.3 - Warncode Fahrzeug: Wird unter
conditions
are
4.3a
5.1
5.2
5.2
6
5.1
2-62
DE
ES
Betriebsart:
1 - An Stabilisatoren
2 - An Reifen (frontaler Oberwagen)
3 - An Reifen (Oberwagen gedreht)
4 - An teilweise ausgezogenen
Stabilisatoren
.
das benutzte Anbaugerät:
(PT, Gabeln usw. ...).
MIT SKALE (4.3a)
des Anbaugeräts.
normalen
Betriebsbedingungen
nicht angezeigt (nur bei Vorliegen
von Störungen)
normalen
Betriebsbedingungen
nicht angezeigt (nur bei Vorliegen
von Störungen)
5.1
5.2
5.1
5.1
5.2
5.1
5.1
4
5.1
6.3
