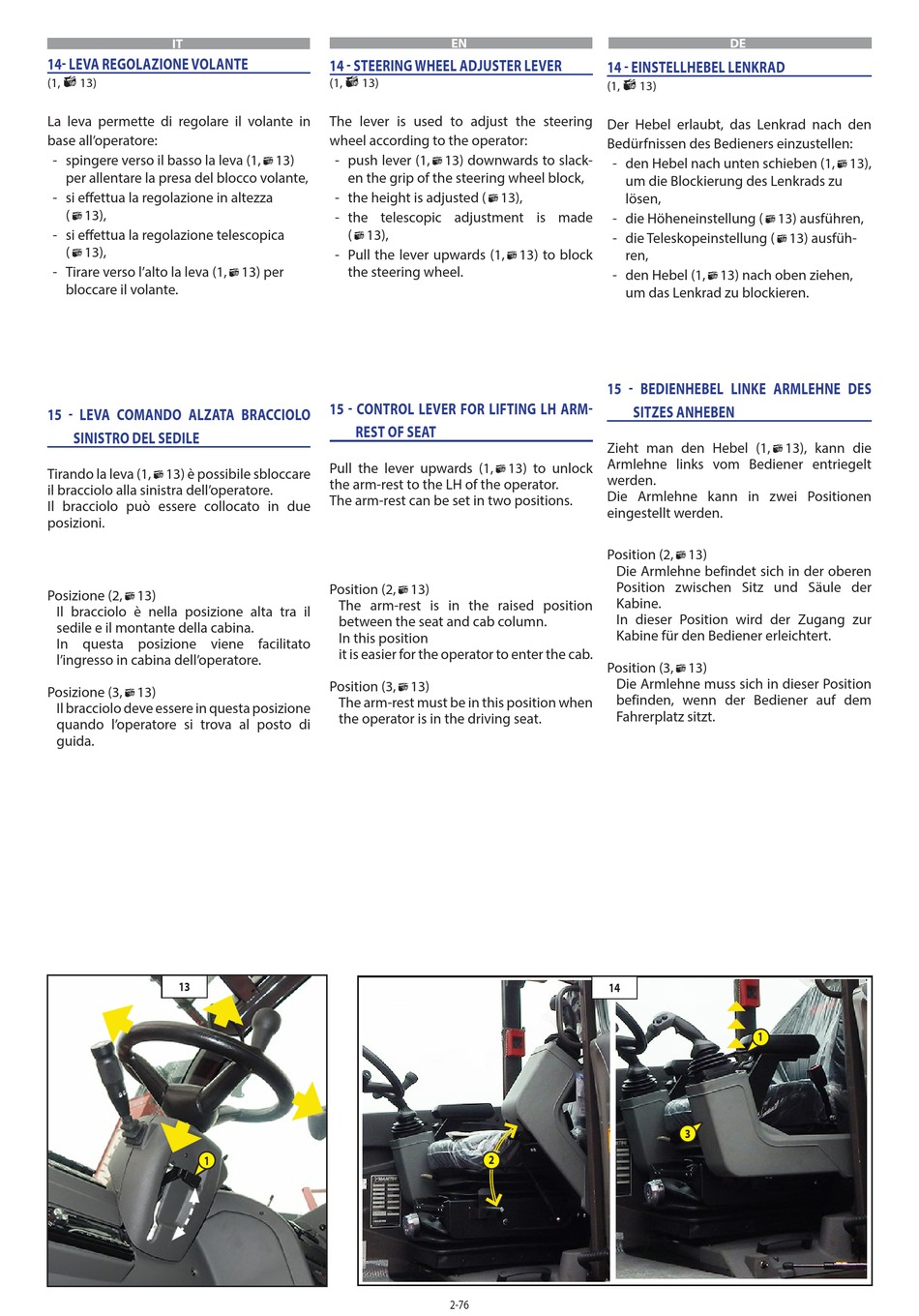

IT
14 LEVA REGOLAZIONE VOLANTE
(1,
13)
La leva permette di regolare il volante in
base all'operatore:
- spingere verso il basso la leva (1,13)
per allentare la presa del blocco volante,
- si e ettua la regolazione in altezza
(13),
- si e ettua la regolazione telescopica
(13),
- Tirare verso l'alto la leva (1,13) per
bloccare il volante.
15
LEVA COMANDO ALZATA BRACCIOLO
SINISTRO DEL SEDILE
Tirando la leva (1,13) è possibile sbloccare
il bracciolo alla sinistra dell'operatore.
Il bracciolo può essere collocato in due
posizioni.
Posizione (2,13)
Il bracciolo è nella posizione alta tra il
sedile e il montante della cabina.
In questa posizione viene facilitato
l'ingresso in cabina dell'operatore.
Posizione (3,13)
Il bracciolo deve essere in questa posizione
quando l'operatore si trova al posto di
guida.
13
1
EN
EN
14 STEERING WHEEL ADJUSTER LEVER
(1,
13)
The lever is used to adjust the steering
wheel according to the operator:
- push lever (1,13) downwards to slack-
en the grip of the steering wheel block,
- the height is adjusted (13),
- the telescopic adjustment is made
(13),
- Pull the lever upwards (1,13) to block
the steering wheel.
15 CONTROL LEVER FOR LIFTING LH ARM
REST OF SEAT
Pull the lever upwards (1,13) to unlock
the arm-rest to the LH of the operator.
The arm-rest can be set in two positions.
Position (2,13)
The arm-rest is in the raised position
between the seat and cab column.
In this position
it is easier for the operator to enter the cab.
Position (3,13)
The arm-rest must be in this position when
the operator is in the driving seat.
2
2-76
DE
ES
14 EINSTELLHEBEL LENKRAD
(1,
13)
Der Hebel erlaubt, das Lenkrad nach den
Bedürfnissen des Bedieners einzustellen:
- den Hebel nach unten schieben (1,13),
um die Blockierung des Lenkrads zu
lösen,
- die Höheneinstellung (13) ausführen,
- die Teleskopeinstellung (13) ausfüh-
ren,
- den Hebel (1,13) nach oben ziehen,
um das Lenkrad zu blockieren.
15
BEDIENHEBEL LINKE ARMLEHNE DES
SITZES ANHEBEN
Zieht man den Hebel (1,13), kann die
Armlehne links vom Bediener entriegelt
werden.
Die Armlehne kann in zwei Positionen
eingestellt werden.
Position (2,13)
Die Armlehne befindet sich in der oberen
Position zwischen Sitz und Säule der
Kabine.
In dieser Position wird der Zugang zur
Kabine für den Bediener erleichtert.
Position (3,13)
Die Armlehne muss sich in dieser Position
befinden, wenn der Bediener auf dem
Fahrerplatz sitzt.
14
1
3
