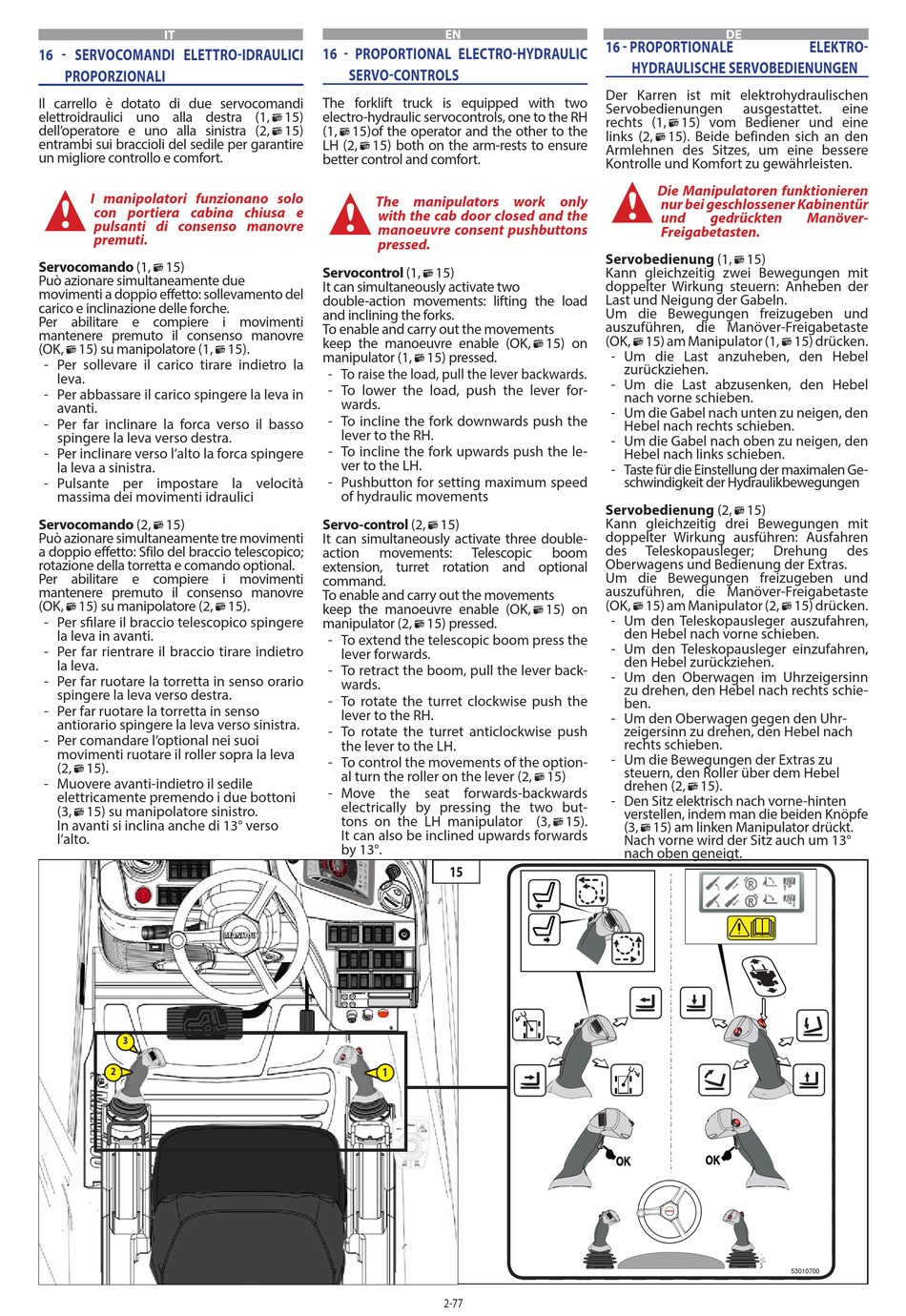

IT
16
SERVOCOMANDI ELETTRO IDRAULICI
PROPORZIONALI
Il carrello è dotato di due servocomandi
elettroidraulici uno alla destra (1,15)
dell'operatore e uno alla sinistra (2,15)
entrambi sui braccioli del sedile per garantire
p
un migliore controllo e comfort.
I manipolatori funzionano solo
con portiera cabina chiusa e
pulsanti di consenso manovre
premuti.
Servocomando (1,15)
Può azionare simultaneamente due
movimenti a doppio effetto: sollevamento del
carico e inclinazione delle forche.
Per abilitare e compiere i movimenti
mantenere premuto il consenso manovre
(OK,15) su manipolatore (1,15).
- Per sollevare il carico tirare indietro la
leva.
- Per abbassare il carico spingere la leva in
avanti.
- Per far inclinare la forca verso il basso
spingere la leva verso destra.
- Per inclinare verso l'alto la forca spingere
la leva a sinistra.
- Pulsante per impostare la velocità
massima dei movimenti idraulici
Servocomando (2,15)
Può azionare simultaneamente tre movimenti
a doppio effetto: Sfilo del braccio telescopico;
rotazione della torretta e comando optional.
Per abilitare e compiere i movimenti
mantenere premuto il consenso manovre
(OK,15) su manipolatore (2,15).
- Per s lare il braccio telescopico spingere
la leva in avanti.
- Per far rientrare il braccio tirare indietro
la leva.
- Per far ruotare la torretta in senso orario
spingere la leva verso destra.
- Per far ruotare la torretta in senso
antiorario spingere la leva verso sinistra.
- Per comandare l'optional nei suoi
movimenti ruotare il roller sopra la leva
(2,15).
- Muovere avanti-indietro il sedile
elettricamente premendo i due bottoni
(3,15) su manipolatore sinistro.
In avanti si inclina anche di 13° verso
l'alto.
3
2
EN
EN
16
PROPORTIONAL ELECTRO HYDRAULIC
SERVO CONTROLS
The forklift truck is equipped with two
electro-hydraulic servocontrols, one to the RH
(1,15)of the operator and the other to the
LH (2,15) both on the arm-rests to ensure
p
better control and comfort.
The manipulators work only
with the cab door closed and the
manoeuvre consent pushbuttons
pressed.
Servocontrol (1,15)
It can simultaneously activate two
double-action movements: lifting the load
and inclining the forks.
To enable and carry out the movements
keep the manoeuvre enable (OK,15) on
manipulator (1,15) pressed.
- To raise the load, pull the lever backwards.
- To lower the load, push the lever for-
wards.
- To incline the fork downwards push the
lever to the RH.
- To incline the fork upwards push the le-
ver to the LH.
- Pushbutton for setting maximum speed
of hydraulic movements
Servo-control (2,15)
It can simultaneously activate three double-
action
movements:
Telescopic
extension, turret rotation and optional
command.
To enable and carry out the movements
keep the manoeuvre enable (OK,15) on
manipulator (2,15) pressed.
- To extend the telescopic boom press the
lever forwards.
- To retract the boom, pull the lever back-
wards.
- To rotate the turret clockwise push the
lever to the RH.
- To rotate the turret anticlockwise push
the lever to the LH.
- To control the movements of the option-
al turn the roller on the lever (2,15)
- Move the seat forwards-backwards
electrically by pressing the two but-
tons on the LH manipulator (3,15).
It can also be inclined upwards forwards
by 13°.
15
1
2-77
16 PROPORTIONALE
HYDRAULISCHE SERVOBEDIENUNGEN
Der Karren ist mit elektrohydraulischen
Servobedienungen
rechts (1,15) vom Bediener und eine
links (2,15). Beide befinden sich an den
p
Armlehnen des Sitzes, um eine bessere
Kontrolle und Komfort zu gewährleisten.
Die Manipulatoren funktionieren
nur bei geschlossener Kabinentür
und
gedrückten
Freigabetasten.
Servobedienung (1,15)
Kann gleichzeitig zwei Bewegungen mit
doppelter Wirkung steuern: Anheben der
Last und Neigung der Gabeln.
Um die Bewegungen freizugeben und
auszuführen, die Manöver-Freigabetaste
(OK,15) am Manipulator (1,15) drücken.
- Um die Last anzuheben, den Hebel
zurückziehen.
- Um die Last abzusenken, den Hebel
nach vorne schieben.
- Um die Gabel nach unten zu neigen, den
Hebel nach rechts schieben.
- Um die Gabel nach oben zu neigen, den
Hebel nach links schieben.
- Taste für die Einstellung der maximalen Ge-
schwindigkeit der Hydraulikbewegungen
Servobedienung (2,15)
Kann gleichzeitig drei Bewegungen mit
doppelter Wirkung ausführen: Ausfahren
des
Teleskopausleger;
boom
Oberwagens und Bedienung der Extras.
Um die Bewegungen freizugeben und
auszuführen, die Manöver-Freigabetaste
(OK,15) am Manipulator (2,15) drücken.
- Um den Teleskopausleger auszufahren,
den Hebel nach vorne schieben.
- Um den Teleskopausleger einzufahren,
den Hebel zurückziehen.
- Um den Oberwagen im Uhrzeigersinn
zu drehen, den Hebel nach rechts schie-
ben.
- Um den Oberwagen gegen den Uhr-
zeigersinn zu drehen, den Hebel nach
rechts schieben.
- Um die Bewegungen der Extras zu
steuern, den Roller über dem Hebel
drehen (2,15).
- Den Sitz elektrisch nach vorne-hinten
verstellen, indem man die beiden Knöpfe
(3,15) am linken Manipulator drückt.
Nach vorne wird der Sitz auch um 13°
nach oben geneigt.
OK
OK
DE
ES
ELEKTRO
ausgestattet.
eine
Manöver-
Drehung
des
53010700
