7.1.5 - PO: Absorbed power display
Power absorbed by the electropump in [kW].
A flashing round symbol may appear under the symbol of the measured
power PO. This symbol indicates the pre-alarm for exceeding the allowed
maximum power
7.1.6 - C1: Phase current display
Motor phase current in [A].
A flashing round symbol may appear under the symbol of the phase cur-
rent C1. This symbol indicates the pre-alarm for exceeding the allowed
maximum current. If it flashes at regular intervals it means that the motor
overload protection is about to trip and it will very probably go into protec-
tion status
7.1.7 - Operating hours and number of starts
Indicates on three lines the hours that the device has been powered up,
the pump working hours and the number of starts of the motor.
7.1.8 - PI: Power histogram
A histogram of the power delivered is displayed on 5 vertical bars. The
histogram indicates how long the pump has been on at a given power
level. On the horizontal axis are the bars at the various power levels; on
the vertical axis, the time for which the pump has been on at the specific
power level (% of the time with respect to the total).

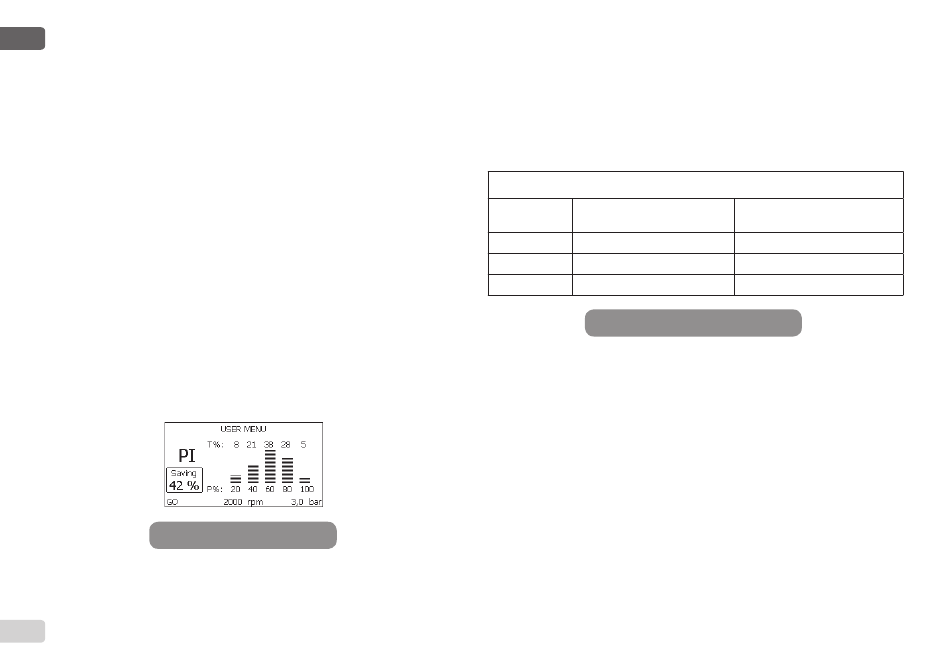

Figura 16: Power histogram display
83
7.1.9 - Multi-pump system
Displays the system status when in the presence of a multi-pump instal-
lation. If communication is not present, an icon depicting communication
absent or interrupted is displayed. If there are several devices connected
to one another, an icon is shown for each of them. The icon has the symbol
of a pump under which are characters indicating the pump status.
Depending on the operating status it will display as in Table 11.
System display
Status Icon
Motor running Symbol of pump turning
Symbol of static pump
Motor stopped
Device faulty Symbol of static pump
Table 11: View of the multi-pump system
If the device is configured as reserve the icon depicting the pump is dark in
colour, the display remains similar to Table 8 with the exception that, if the
motor is stopped, it shows F instead of SB.
7.1.10 - Output flow meter
The page shows two flow meters. The first shows the total output flow
delivered by the machine. The second shows a partial count and can be
reset by the user.
The partial count can be reset from this page, by holding down the " - "
button for 2 sec.
7.1.11 - VE: Version display
Hardware and software version with which the appliance is equipped.
7.1.12- FF: Fault log display
Chronological display of the faults that have occurred during system op-
eration.
Under the symbol FF appear two numbers x/y indicating respectively the
Status information under the
icon
speed in three figures
SB
F
