Identifying colours Modification of parameters in multi-pump assemblies
Set of sensitive parameters. These parameters must
be aligned so that the multi-pump system can start.
The modification of one of these on any devices re-
sults in automatic alignment on all the other devices
Parameters of which the alignment is allowed in fa-
cilitated mode by only one device, broadcasting it to
all the others. It is tolerated that they may be different
Setting parameters that are significant only locally.
Table 8: Menu structure
6.2 - Access by name with a drop-down menu
The selection of the various menus is accessed by name. From the main
menu you access menu selection by pressing either of the + or – keys.
The names of the menus that can be accessed appear on the menu se-
lection page and one of the menus is highlighted by a bar (see Figure 14).
Shift the highlighting bar using the + and – keys to select the menu you
want and enter it by pressing MODE.
Key
without any question.
from one device to another.
Read-only parameters.

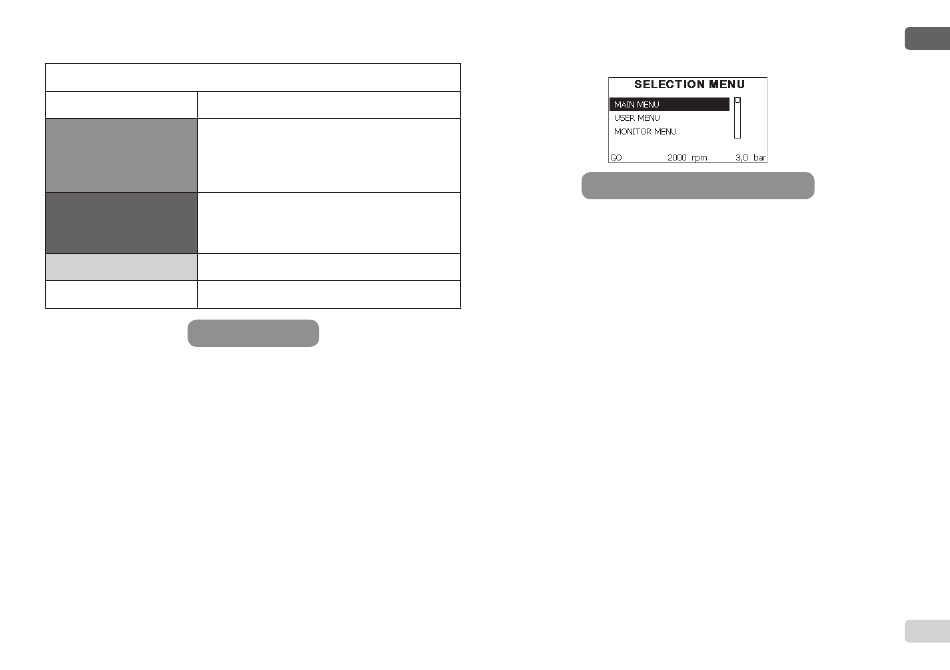

Figure 13: Selection of the drop-down menus
The items available are MAIN, USER, MONITOR, followed by a fourth
item, EXTENDED MENU; this item allows the number of menus dis-
played to be extended. When EXTENDED MENU is selected a pop-up
appears asking you to type in an access key (PASSWORD). The access
key (PASSWORD) coincides with the combination of keys used for direct
access (as in Table 8) and allows the extended display of the menus from
the menu corresponding to the access key to all those with a lower priority.
The order of the menus is: User, Manual Setpoint, Manual, Installer, Tech-
nical Assistance.
When an access key is selected, the menus released remain available
for 15 minutes or until they are disabled manually by means of the item
"Hide forward menus" which appears on the menu selection when using
an access key.
Figure 14 shows an operating diagram for selecting the menus.
The menus are in the centre of the page, from the right you reach them by
means of direct selection with a combination of keys, while from the left
you reach them by means of the selection system with drop-down menu.
