7.2

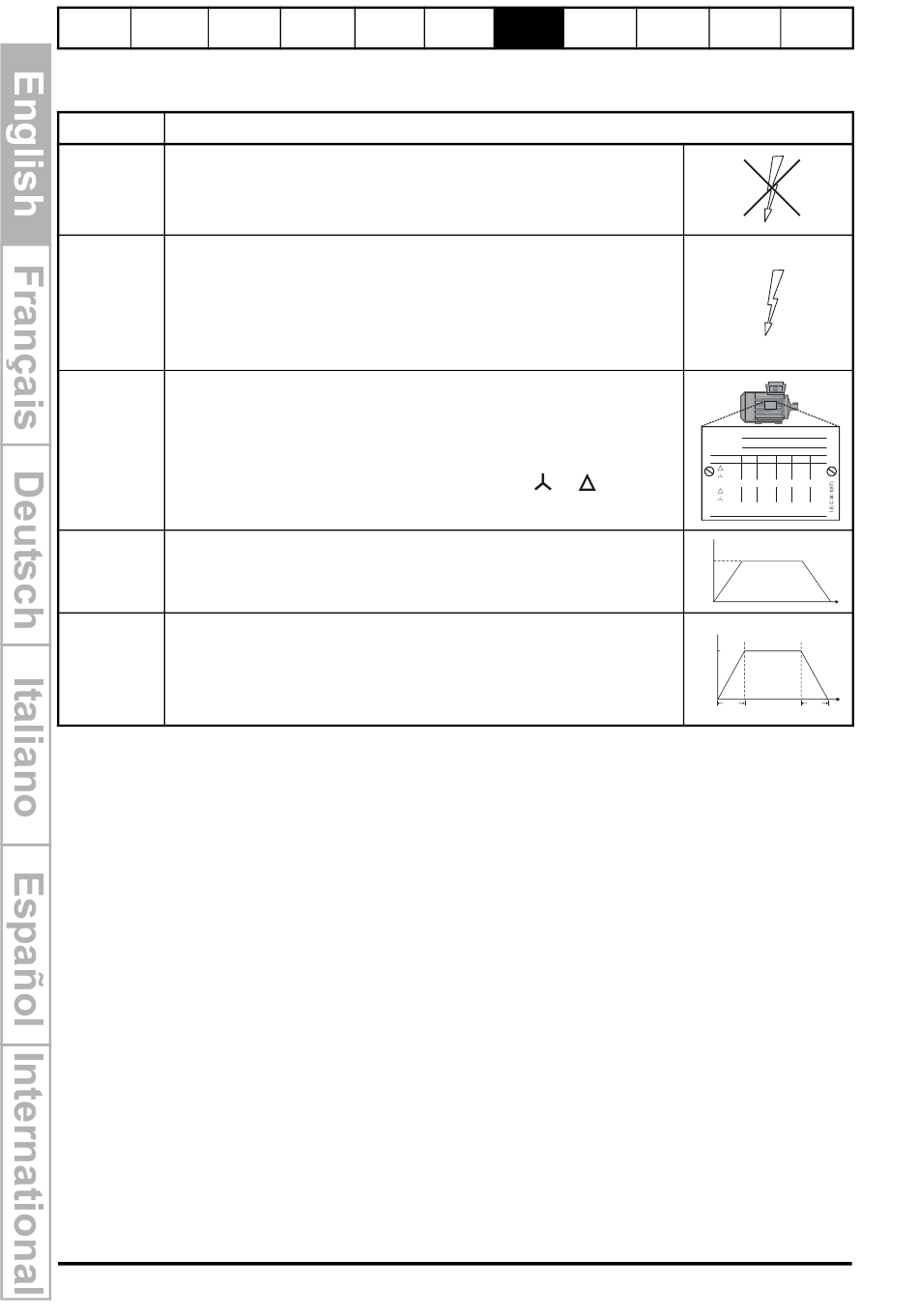

Quick Start commissioning

7.2.1 Open loop
Action
Ensure:
Before • The drive enable signal is not given (terminal 31)
power-up • Run signal is not given
• Motor is connected
Ensure:
• Drive displays 'inh'
Power-up If the drive trips, see Chapter 9
the drive
Size 0 only: If no internal braking resistor is fitted then the drive will
trip 'br.th'. If no internal braking resistor is required then set Pr 0.51
to 8 to disable the trip.
Enter:
• Motor rated frequency in Pr 0.47 (Hz)
Enter motor
• Motor rated current in Pr 0.46 (A)
nameplate
• Motor rated speed in Pr 0.45 (rpm)
details
• Motor rated voltage in Pr 0.44 (V) - check if
connection
Set
Enter:
maximum
• Maximum frequency in Pr 0.02 (Hz)
frequency
Enter:
• Acceleration rate in Pr 0.03 (s/100Hz)
Set accel. /
• Deceleration rate in Pr 0.04 (s/100Hz) (If braking resistor fitted,
decel. rates
set Pr 0.15 = FAST. Also ensure Pr 10.30 and Pr 10.31 are set
correctly, otherwise premature 'It.br' trips may be seen.)
36
Electrical Getting
Menu 0
Installation Started
Diagnostics
www.controltechniques.com
Running Advanced
Diagnostics Appendix
the motor parameters
Detail
on page 45.
or
Unidrive SP Short Form Guide
UL Listing
Information
Mot X XXXXXXXXX
No XXXXXXXXXX kg
IP55 I.cl F ° C 40 s S1
-1
V Hz min kW cosφ A
230 50 1445 2.20 0.80 8.50
400 4.90
CN = 14.5Nm
240 50 1445 2.20 0.76 8.50
415 4.90
CN = 14.4Nm
CTP- VEN 1PHASE 1=0,46A P=110W R.F 32MN
0.02
t
100Hz
t
0.03 0.04
