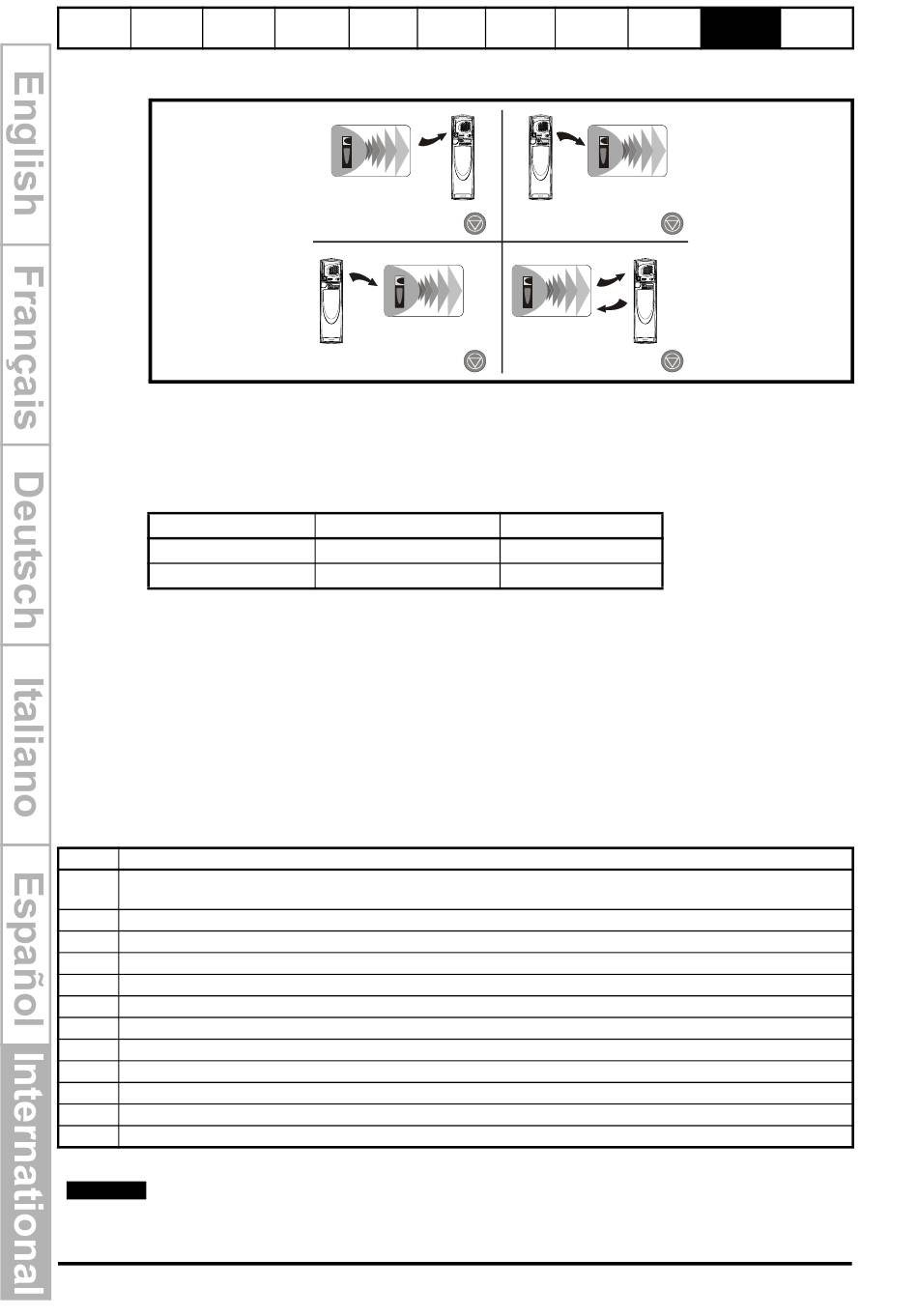

Easy saving and reading / Sauvegardes et lecture simples / Einfaches Speichern und
Lesen von Parametern / Facilità di salvataggio e di lettura / Fácil almacenamiento y lectura
The SMARTCARD has 999 individual data block locations. Each individual location from
1 to 499 can be used to store data until the capacity of the SMARTCARD is used. The
drive can support SMARTCARDs with a capacity of between 4kB and 512kB.
The data block locations of the SMARTCARD are arranged to have the following usage:
SMARTCARD data blocks
Data block
1 to 499
500 to 999
Data transfer to or from the SMARTCARD is indicated by one the following:
• SM-Keypad: The decimal point after the fourth digit in the upper display will flash.
• SM-Keypad Plus: The symbol 'CC' will appear in the lower left hand corner of the display
The card should not be removed during data transfer, as the drive will produce a trip. If
this occurs then either the transfer should be reattempted or in the case of a card to
drive transfer, default parameters should be loaded.

Transferring data

Data transfer, erasing and protecting the information is performed by entering a code in
Pr xx.00 and then resetting the drive as shown.
SMARTCARD codes
Code
Transfer drive parameters as difference from defaults to a bootable SMARTCARD block in data block
2001
number 001
3yyy Transfer drive parameters to a SMARTCARD block number yyy
4yyy Transfer drive data as difference from defaults to SMARTCARD block number yyy
5yyy Transfer drive Onboard PLC program to SMARTCARD block number yyy
6yyy Transfer SMARTCARD data block yyy to the drive
7yyy Erase SMARTCARD data block yyy
8yyy Compare drive parameters with block yyy
9555 Clear SMARTCARD warning suppression flag (V01.07.00 and later)
9666 Set SMARTCARD warning suppression flag (V01.07.00 and later)
9777 Clear SMARTCARD read-only flag
9888 Set SMARTCARD read-only flag
9999 Erase SMARTCARD
Where yyy indicates the block number 001 to 999.
If the read only flag is set then only codes 6yyy or 9777 are effective.
