Getting Started

This chapter introduces the user interfaces, menu structure and security level of the drive.
5.1

Understanding the display

There are two types of keypad available for the Unidrive SP. The SM-Keypad/SP0 Keypad has an
LED display and the SM-Keypad Plus has an LCD display.
Size 0: Only the SP0 Keypad can be fitted to the drive.
Size 1 to 6: Both the SM-Keypad and SM-Keypad Plus can be fitted to the drive.
For all sizes the SM-Keypad Plus can also be remotely mounted on an enclosure door.
5.1.1 SM-Keypad/SP0 Keypad (LED)
The display consists of two horizontal rows of 7
segment LED displays.
The upper display shows the drive status or the
current menu and parameter number being
viewed.
The lower display shows the parameter value or
the specific trip type.

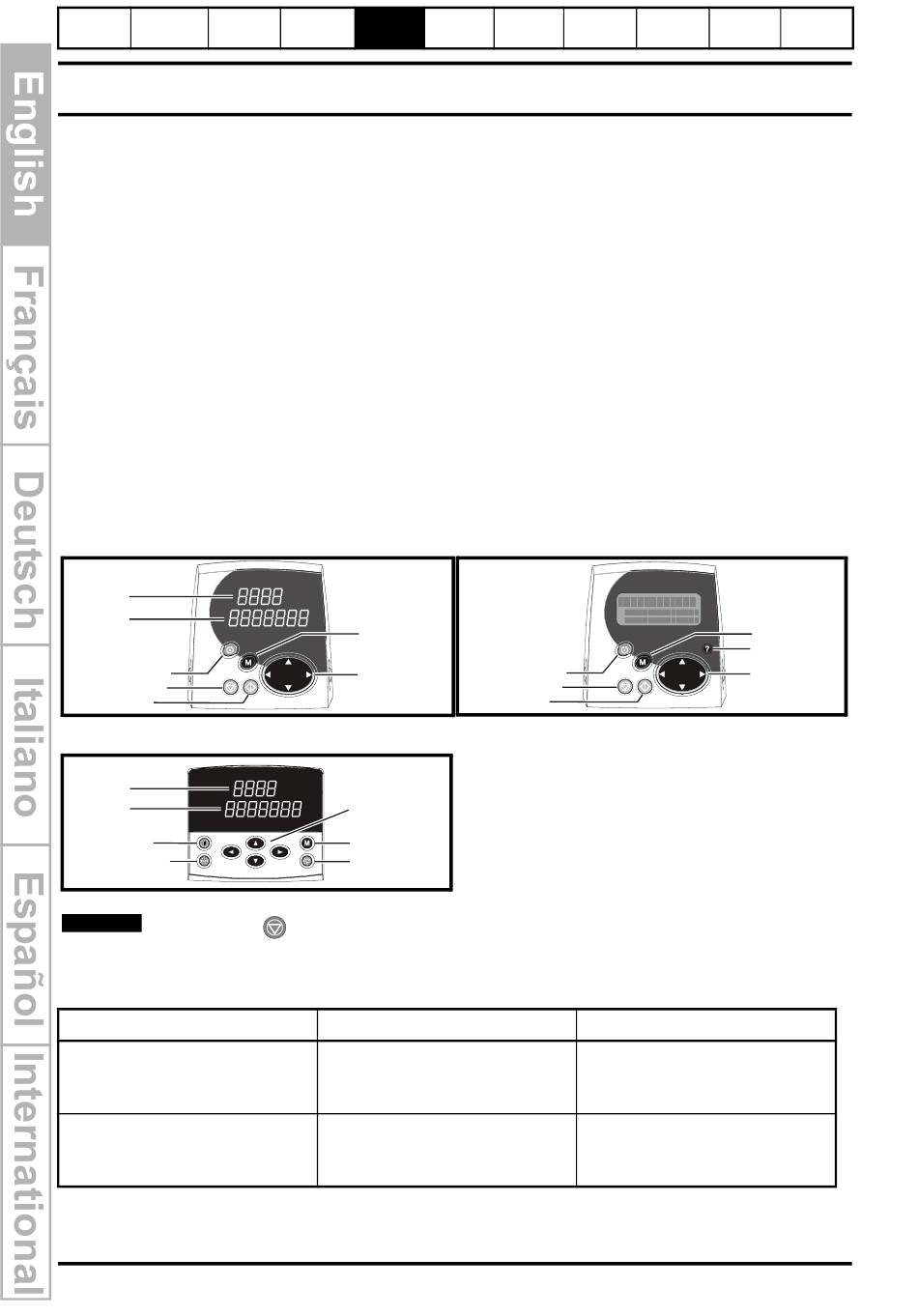

Figure 5-1 SM-Keypad
Upper display
Lower display
Control buttons
Fwd / Rev (blue) button
Stop/reset (red) button
Start (green) button
Figure 5-3 SP0 Keypad
Upper display
Lower display
Start (green) button
Fwd / Rev (blue) button
NOTE
The red stop
All keypads can indicate when a SMARTCARD access is taking place or when the
second motor map is active (menu 21). These are indicated on the displays as follows.
SMARTCARD access taking
place
Second motor map active
18
Electrical Getting
Menu 0
Installation Started
The display consists of three lines of text.
The top line shows the drive status or the current
menu and parameter number being viewed on
the left, and the parameter value or the specific
trip type on the right.
The lower two lines show the parameter name or
the help text.
Figure 5-2 SM-Keypad Plus
Mode (black) button
Joypad
Navigation keys
Mode (black) button
Stop/reset (red) button
button is also used to reset the drive.
SM-Keypad / SP0 Keypad
The decimal point after the
fourth digit in the upper display
will flash.
The decimal point after the
third digit in the upper display
will flash.
www.controltechniques.com
Running Advanced
the motor parameters
5.1.2 SM-Keypad Plus (LCD)
Control buttons
Fwd / Rev (blue) button
Stop/reset (red) button
Start (green) button
The symbol 'CC' will appear in
the lower left hand corner of
the display
The symbol 'Mot2' will appear
in the lower left hand corner of
the display
Unidrive SP Short Form Guide
UL Listing
Diagnostics Appendix
Information
Mode (black) button
Help button
Joypad
SM-Keypad Plus
