5.5

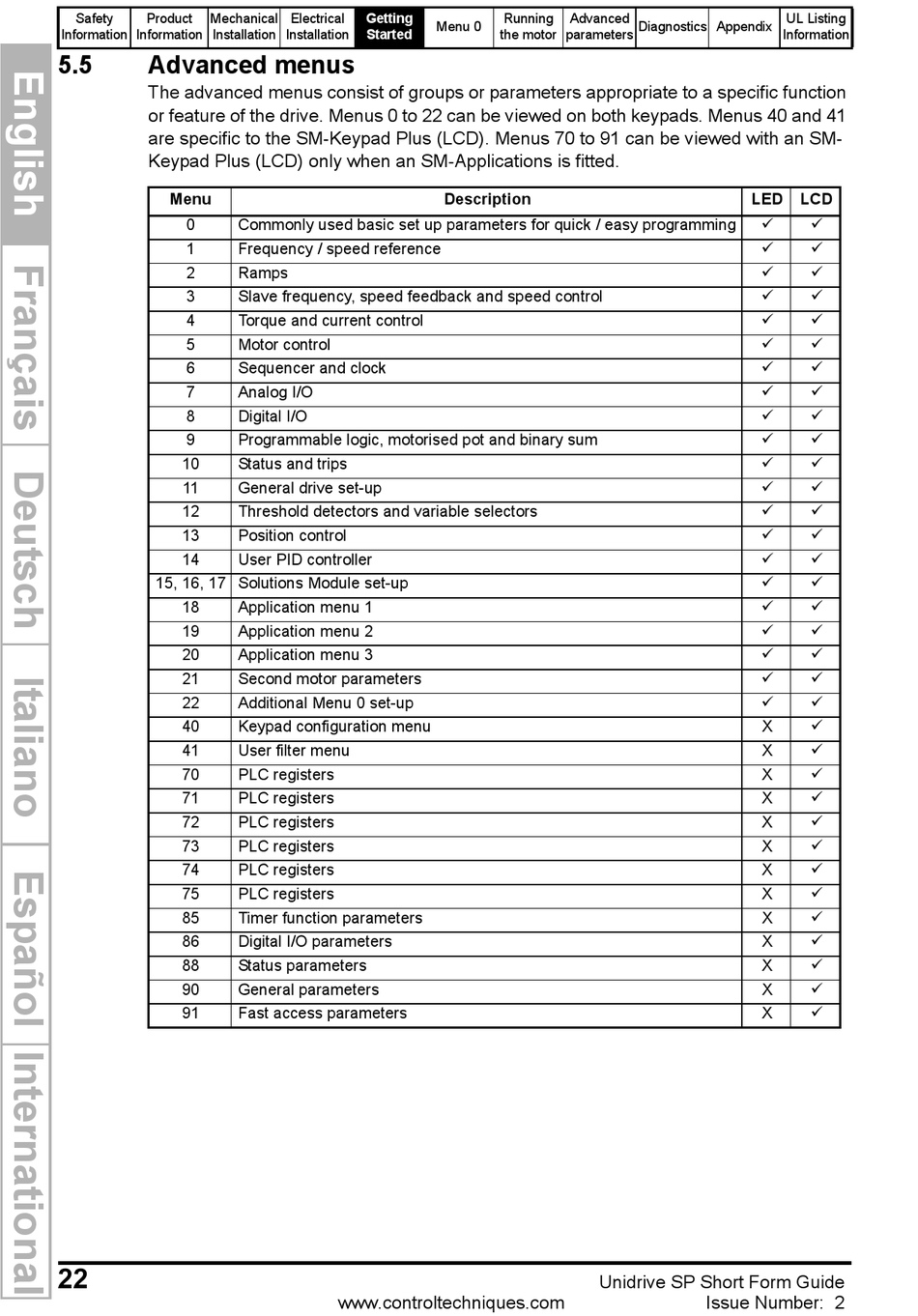

Advanced menus

The advanced menus consist of groups or parameters appropriate to a specific function
or feature of the drive. Menus 0 to 22 can be viewed on both keypads. Menus 40 and 41
are specific to the SM-Keypad Plus (LCD). Menus 70 to 91 can be viewed with an SM-
Keypad Plus (LCD) only when an SM-Applications is fitted.
Menu
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15, 16, 17 Solutions Module set-up
18
19
20
21
22
40
41
70
71
72
73
74
75
85
86
88
90
91
22
Electrical Getting
Installation Started
Commonly used basic set up parameters for quick / easy programming
Frequency / speed reference
Ramps
Slave frequency, speed feedback and speed control
Torque and current control
Motor control
Sequencer and clock
Analog I/O
Digital I/O
Programmable logic, motorised pot and binary sum
Status and trips
General drive set-up
Threshold detectors and variable selectors
Position control
User PID controller
Application menu 1
Application menu 2
Application menu 3
Second motor parameters
Additional Menu 0 set-up
Keypad configuration menu
User filter menu
PLC registers
PLC registers
PLC registers
PLC registers
PLC registers
PLC registers
Timer function parameters
Digital I/O parameters
Status parameters
General parameters
Fast access parameters
www.controltechniques.com
Running Advanced
Menu 0
the motor parameters
Description
Unidrive SP Short Form Guide
UL Listing
Diagnostics Appendix
Information
LED LCD
X
X
X
X
X
X
X
X
X
X
X
X
X
Issue Number: 2
