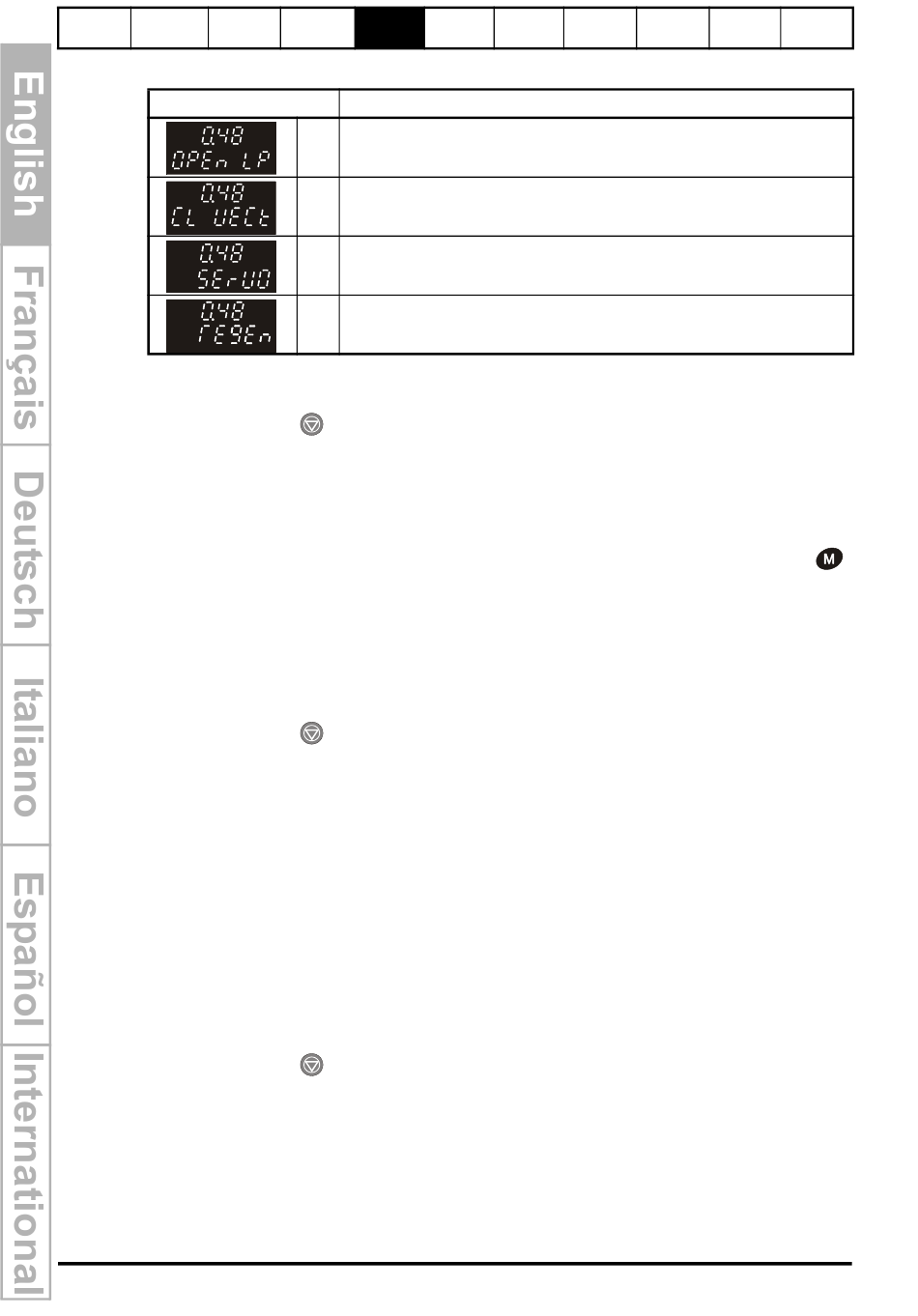

3. Change the setting of Pr 0.48 as follows:
Pr 0.48 setting
The figures in the second column apply when serial communications are used.
4. Either:
• Press the red
• Toggle the reset digital input
• Carry out a drive reset through serial communications by setting Pr 10.38 to 100
(ensure that Pr. xx.00 returns to 0).
5.7

Saving parameters

When changing a parameter in Menu 0, the new value is saved when pressing the
Mode button to return to parameter view mode from parameter edit mode.
If parameters have been changed in the advanced menus, then the change will not be
saved automatically. A save function must be carried out.
Procedure
Enter 1000* in Pr. xx.00
Either:
• Press the red
• Toggle the reset digital input
• Carry out a drive reset through serial communications by setting Pr 10.38 to 100
(ensure that Pr. xx.00 returns to 0).
*If the drive is in the under voltage trip state or is being supplied from a 48V back-up
supply, a value of 1001 must be entered into Pr xx.00 to perform a save function.
5.8

Restoring parameter defaults

Restoring parameter defaults by this method saves the default values in the drive's
memory. (Pr 0.49 and Pr 0.34 are not affected by this procedure.)
Procedure
1. Ensure the drive is not enabled, i.e. terminal 31 is open or Pr 6.15 is Off (0)
2. Enter 1233 (EUR 50Hz settings) or 1244 (USA 60Hz settings) in Pr xx.00.
3. Either:
• Press the red
• Toggle the reset digital input
• Carry out a drive reset through serial communications by setting Pr 10.38 to 100
(ensure that Pr. xx.00 returns to 0).
24
Electrical Getting
Menu 0
Installation Started
1
2
3
Regen (See the Unidrive SP Regen User Guide for more
4
information about operating in this mode)
reset button
reset button
reset button
www.controltechniques.com
Running Advanced
Diagnostics Appendix
the motor parameters
Operating mode
Open-loop
Closed-loop Vector
Closed-loop Servo
Unidrive SP Short Form Guide
UL Listing
Information
Issue Number: 2
