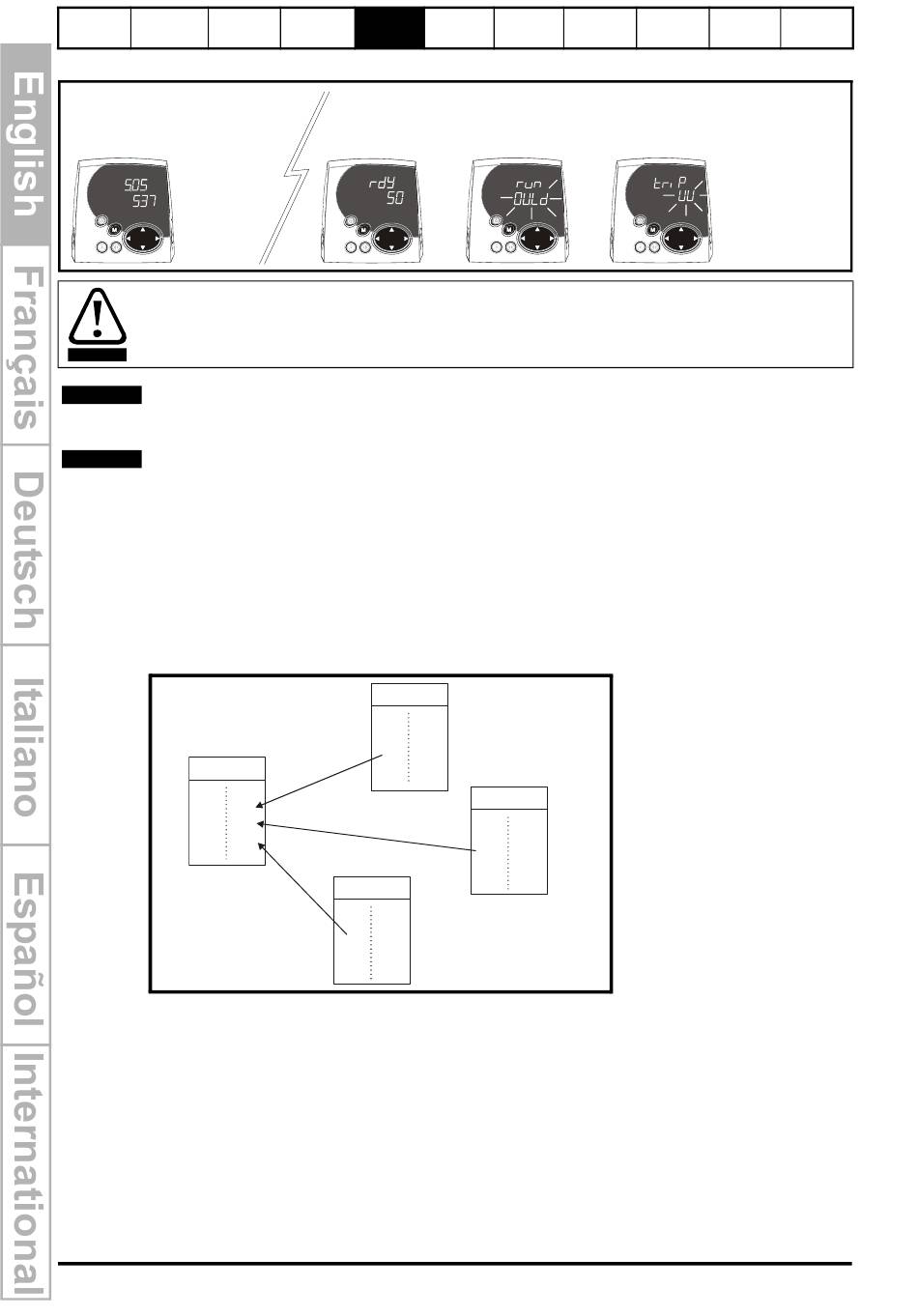

Figure 5-5 Mode examples
Parameter
View Mode
Menu 5. Parameter 5
Pr 5.05 value
Do not change parameter values without careful consideration; incorrect values may
cause damage or a safety hazard.
WARNING
When changing the values of parameters, make a note of the new values in case they
NOTE
need to be entered again.
For new parameter-values to apply after the AC supply to the drive is interrupted, new
NOTE
values must be saved. Refer to section 5.7 Saving parameters on page 24.
5.3

Menu 0

Menu 0 is used to bring together various commonly used parameters for basic easy set
up of the drive.
Appropriate parameters are cloned from the advanced menus into menu 0 and thus
exist in both locations.
For further information, refer to Chapter 6 Basic parameters (Menu 0) on page 28.
Figure 5-6 Menu 0 Cloning
Menu 0
0.04
0.05
0.06
5.4

Menu structure

The drive parameter structure consists of menus and parameters.
The drive initially powers up so that only menu 0 can be viewed. The up and down arrow
buttons are used to navigate between parameters and once level 2 access (L2) has
been enabled (see Pr 0.49) the left and right buttons are used to navigate between
menus. For further information, refer to section 5.11 Parameter access level and
security on page 25.
20
Electrical Getting
Installation Started
Healthy Status
Menu 2
2.21
5
0
150
Menu 4
150
4.07
www.controltechniques.com
Running Advanced
Menu 0
the motor parameters
Status Mode
Alarm Status
5
Menu 1
1.14 0
Diagnostics Appendix
Trip Status
Drive status = tripped
Trip type (UU = undervolts)
Unidrive SP Short Form Guide
