4. Using a 5/32" hex wrench, install four flat head cap screws (0001-194-000) and four cleat locator washers to secure the
cleats. Make sure that you install two cleat locator washers per cleat.
5. Proceed to Installing Performance-LOAD (page 19).

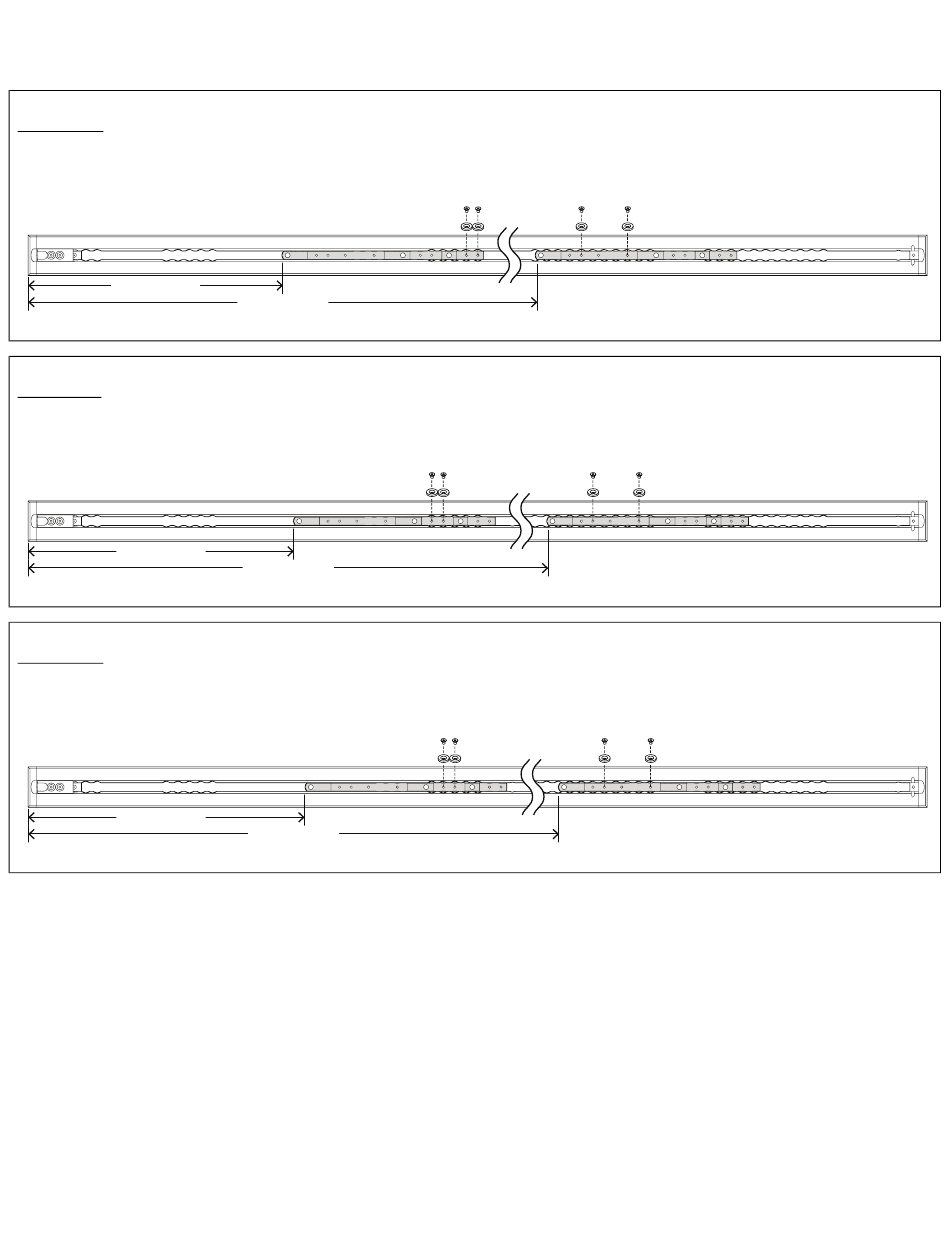

S S e e c c t t i i o o n n O O : : 19 in. (48 cm) sill to cot distance
22"(55.9 cm)
S S e e c c t t i i o o n n P P : : 20 in. (51 cm) sill to cot distance
23"(58.4 cm)
S S e e c c t t i i o o n n Q Q : : 21 in. (53 cm) sill to cot distance
24"(61.0 cm)
I I n n s s t t a a l l l l i i n n g g P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D
T T o o o o l l s s r r e e q q u u i i r r e e d d : :
Hack saw
Slotted screwdriver
3/8" drive torque wrench (ft-lb) > 60 ft-lb
P P r r o o c c e e d d u u r r e e : :
1. Carefully place P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D on top of the floor plate assembly. Align the two bolts at the head end with the two
holes in the cleat as shown in Figure 5.
6392-009-005 Rev F.1
61" (154.9 cm)
62" (157.5 cm)
63" (160.0 cm)
Rubber hammer
3/8" hex wrench (at least 5-3/8 in. (13.7 cm) length)
Silicone sealant
19 EN
