Stryker Performance-LOAD Cot Fastener System Betriebsanleitung Seite 14

I I n n s s t t a a l l l l i i n n g g t t h h e e f f l l o o o o r r p p l l a a t t e e
Install the Stryker universal floor plate in your vehicle patient compartment before you install your cot fastener system. See
the Stryker Global Floor Plate Installation Manual (6390-009-020) for instructions.
P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D a a s s s s e e m m b b l l y y k k i i t t c c h h e e c c k k l l i i s s t t
Make sure that you have all the required components to install the P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D system.
P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D assembly kit components (6392-001-014)
(2) Cleat (6392-001-400)
(4) Flat head cap screw (0001-194-000)
N N o o t t e e - - Store the hex wrench and removal tool extension (Figure 3) inside of the center cover assembly, so you can access
these tools when you are Removing Performance-LOAD quickly (page 24).
EN 10
6392-001-401 (4)
0001-194-000 (4)
6392-001-400 (2)

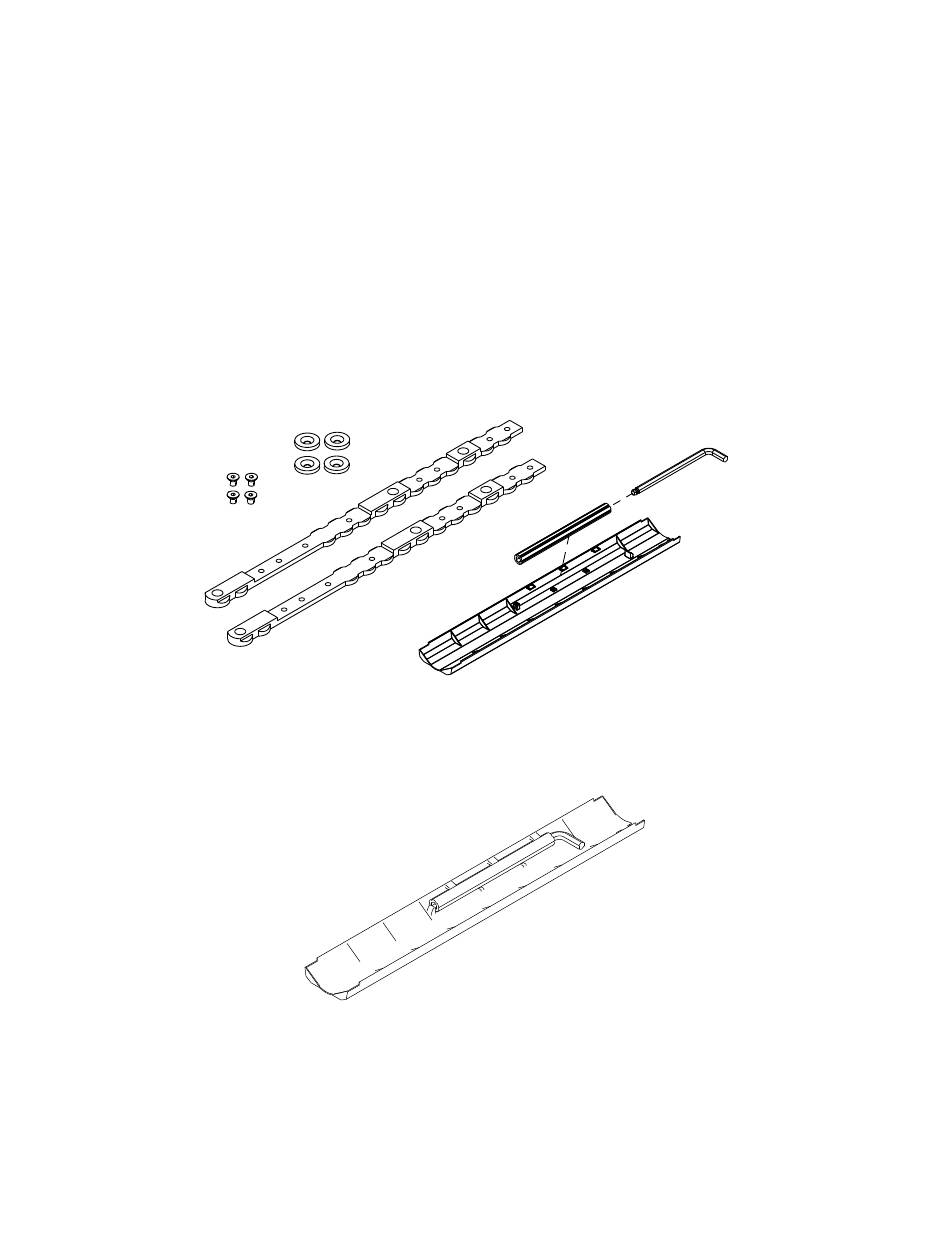

F F i i g g u u r r e e 2 2 – – P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D a a s s s s e e m m b b l l y y k k i i t t c c o o m m p p o o n n e e n n t t s s
F F i i g g u u r r e e 3 3 – – H H e e x x w w r r e e n n c c h h a a n n d d r r e e m m o o v v a a l l t t o o o o l l e e x x t t e e n n s s i i o o n n
(4) Cleat locator washer (6392-001-401)
(1) Center cover assembly (6392-001-011)
• (1) Hex wrench (0057-011-000)
• (1) Floor plate cover (6392-001-403)
• (1) Removal tool extension (6392-001-406)
6392-001-406 (1)
6392-001-011 (1)
0057-011-000 (1)
6392-001-403 (1)
6392-009-005 Rev F.1
