6 Using the robotic mower as a stand-alone device
wire. At least one guide wire must be installed;
three guide wires may be installed.
2
B

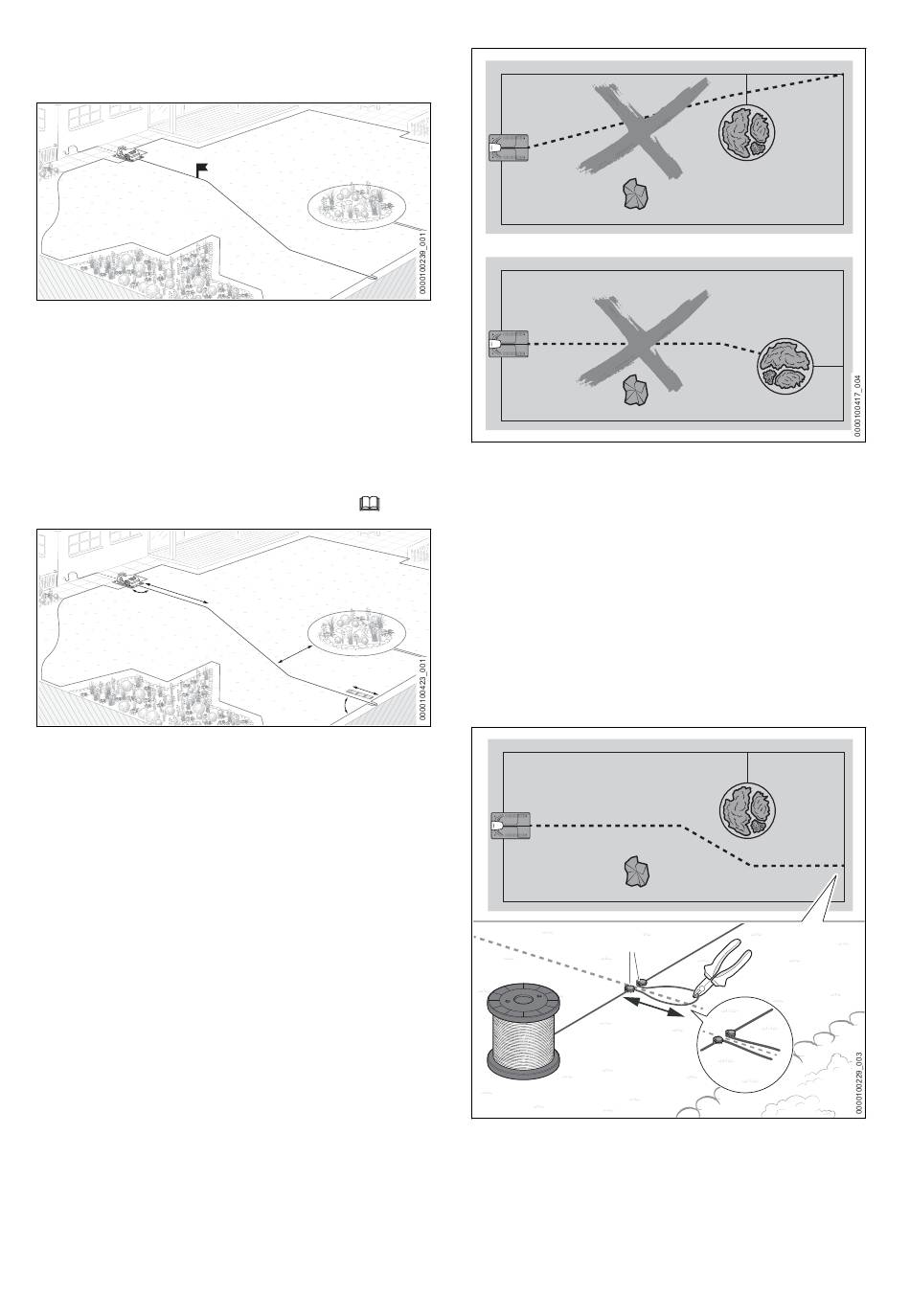

A guide wire (1) fulfills the following functions:
– Orientation for returning to the docking station
(2)
– Moving toward a starting point (3)
– Splits the mowing area into zones (A and B)
Starting at the docking station (2), install the
guide wire (1) across the mowing area and con‐
nect it to a point on the circumferential perimeter
wire (4) that is as far away as possible.
a
90°
► Plan the guide wire so that the following condi‐
tions are met:
– Route the guide wire for a length of a = 2 m in
a straight line from the docking station to the
mowing area.
– The minimum distance between the guide wire
and the circumferential perimeter wire is
b = 27.5 cm
– Route the guide wire with a minimum distance
c = 37 cm (length: 1x iMOW
straight line and at a right angle to the perime‐
ter wire and connect it.
0458-036-9801-A
A
3
1
4
6.6
b
c
90°
®
Ruler) in a
– The guide wire must not cross over a blocked-
off area connection.
– The guide wire must not be connected to the
perimeter wire in a corner.
– The guide wire must not be connected to the
perimeter wire of a blocked-off area.
– The guide wire must not cross over a perime‐
ter wire.
Exception: When installing a corridor, the
guide wire must cross the perimeter wire.
– The guide wire must not be kinked or under
tension, and it must not cross over itself.
5
d
4
The connection point for the guide wire must be
installed during the installation of the circumfer‐
ential perimeter wire (4).
► Secure the perimeter wire (4) at the intended
areas using a fixing pin (5).
English
97
