English

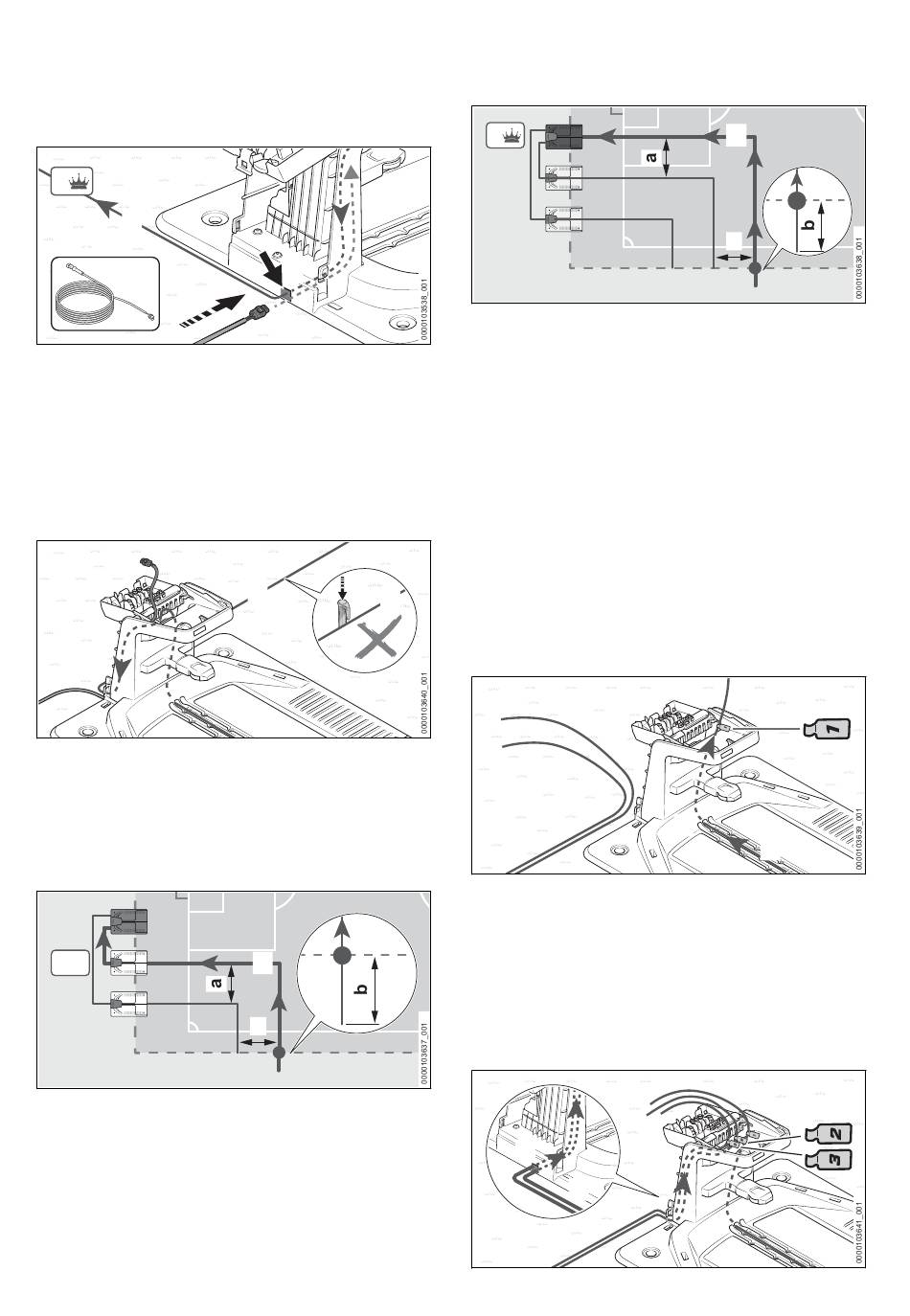

► Insert the the guide wire (1) from above into
the left opening (7) and feed the wire through.
The guide wire (1) exits again at the rear from
the opening for the charging cable.
1
1
10
► Guide the guide wire (1) behind the docking
station (team 3) to the master docking sta‐
tion (team 1).
► Insert the plug (8) into the opening (9) for the
charging cable and feed the charging
cable (10) through.
Push the charging cable (10) upward inside
the docking station.
The guide wire (1) will be attached to the master
docking station (team 1) with a fixing pin (11) at a
later time.
Installing the guide wire of docking sta‐
tion (team 2)
2
► Install the guide wire (1) for docking sta‐
tion (team 2) in the same way as for the guide
wire for docking station (team 3). Maintain a
minimum distance of a = 2 m to the already
installed guide wire.
► Leave a length of guide wire (1) of b = 1 m
beyond the perimeter wire to be installed later
at the edge of the mowing area.
80
9
8
1
1
11
1
a
5 Using the robotic mower in a team
Installing the guide wire of the master docking
station (team 1)
1
► Install a guide wire at a minimum distance of
a = 2 m to the already installed guide wire to
the master docking station (team 1).
► Leave a length of guide wire (1) of b = 1 m
beyond the perimeter wire to be installed later
at the edge of the mowing area.
► Use a fixing pin to attach the guide wire
directly to the base plate.
► Unwind enough wire from the coil of wire and
use a wire cutter to cut the wire.
The length of the wire must be sufficient to be
able to guide the guide wire through the dock‐
ing station (team 1) and connect it.
► Install the guide wire in the base plate so that
the guide wire lies flat in the cable duct and is
secured by the hook.
► Insert the the guide wire (1) into the middle
conduit (2) and feed the wire through.
Push the guide wire upward inside the master
docking station (team 1).
► Using the appropriate cable marker, mark the
guide wire near the housing.
Marking will facilitate the subsequent connec‐
tion to the correct terminal.
5
4
3
1
a
2
1
0458-036-9801-A
