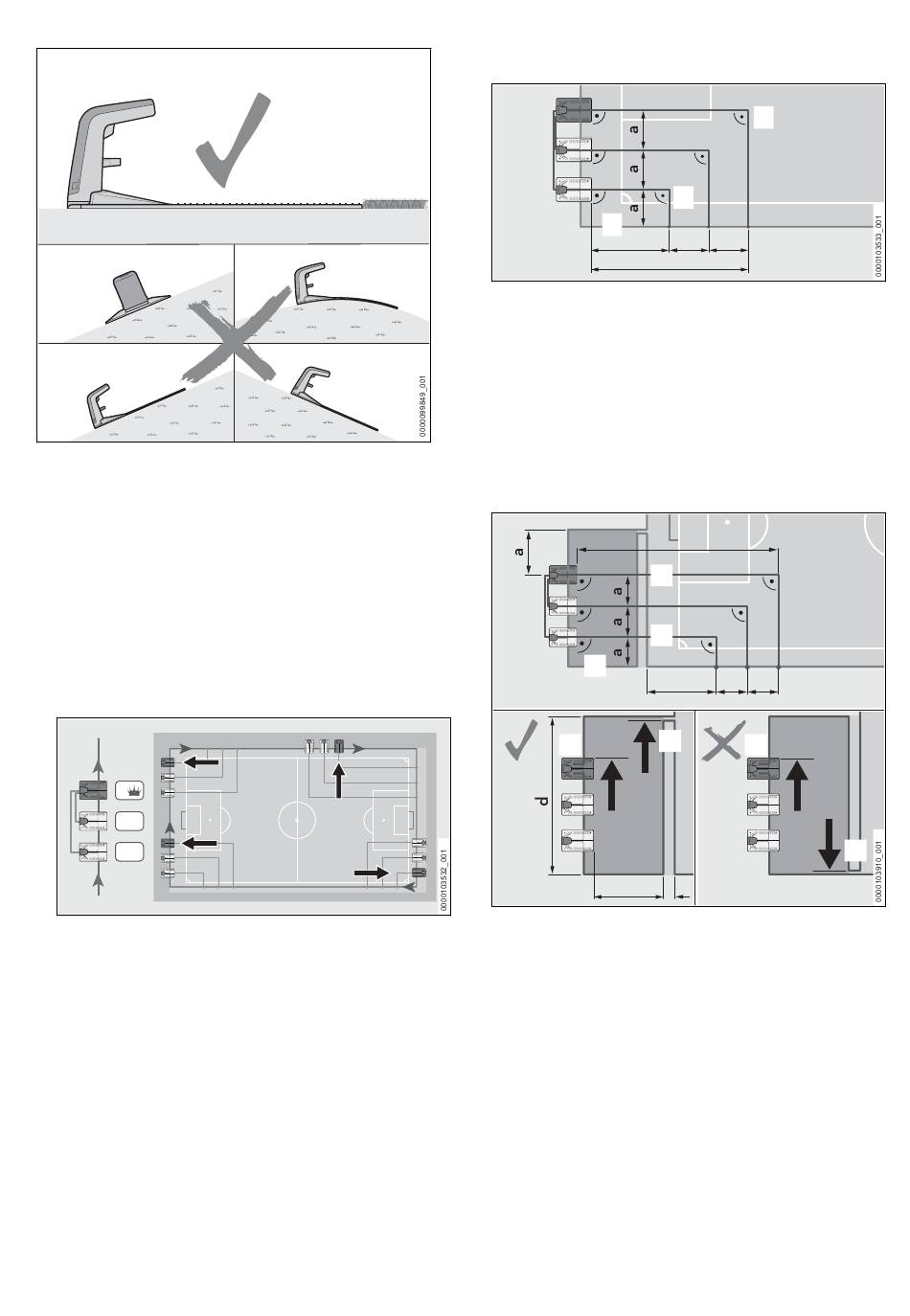

► Position the docking stations so that the fol‐
lowing conditions are met:
– The docking stations are on a flat surface.
– The openings of the docking stations are
facing forward toward the mowing area.
– The docking stations are positioned horizon‐
tally and are not tilted to the side, the front
or the rear.
– The base plate does not sag but rather lies
flat on the ground.
5.3.2
Positioning the docking stations
1
2
3
The docking station positioned on the far right
as viewed from the playing field is defined as
the master docking station (team 1). The
perimeter wire and all guide wires are connec‐
ted to the master docking station (team 1).
– Master docking station (team 1)
– Docking station (team 2)
– Docking station (team 3)
Use ground pegs to secure the docking stations
only after completing the wire installation.
78
5 Using the robotic mower in a team
Docking stations within the mowing area
1
a
Position the docking station within the mowing
area so that the following conditions are met:
– The distance between the perimeter wire (1)
and the guide wire (2) is at least a = 2 m.
– The distance between the guide wires is at
least a = 2 m.
– The maximum length of the longest guide
wire (3) is b = 80 m.
Docking stations outside of the mowing area
1
5
b
Position the docking station outside of the
mowing area so the following conditions are
met:
– The distance between the perimeter wire (1)
and the guide wire (2) is at least a = 2 m.
– The distance between the guide wires is at
least a = 2 m.
– The distance between the docking stations
and the wire loop (4) is b = ≤ 35 m.
– The width of the wire loop (4) is c = 37 cm
®
(1x iMOW
Ruler).
– The distance between the external perime‐
ter wires of the separated area is d = ≤ 10
m.
– The maximum length of the longest guide
wire (3) is e = 80 m.
3
2
a
a
b
e
3
2
a
a
a
4
5
c
