5 Using the robotic mower in a team
– The wire loop (4) is positioned to the right of
the master docking station (5).
5.3.3

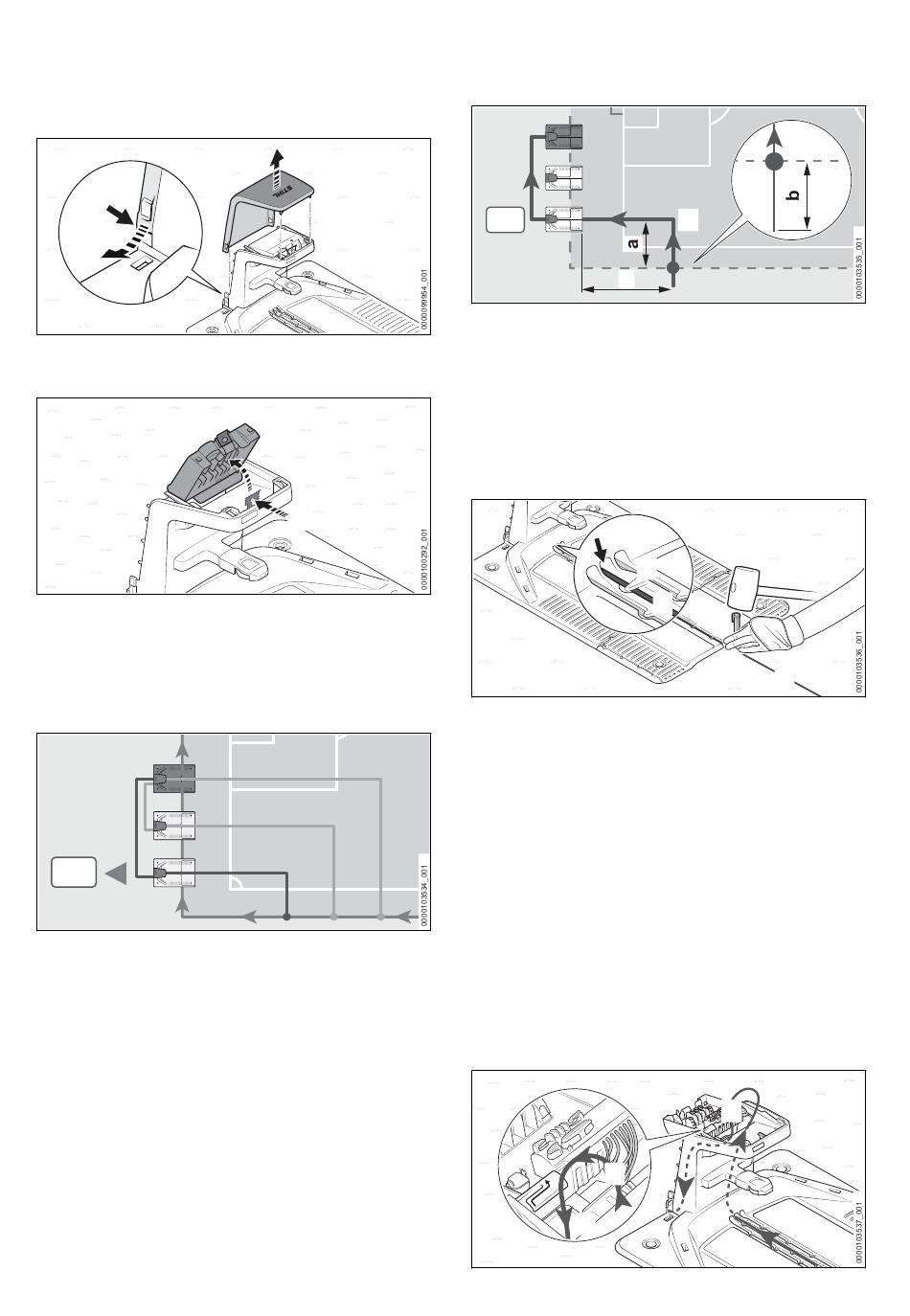

Preparing the docking stations
1
► Slightly bend the hood (1) toward the outside
on both sides and remove it upward.
► Press the retaining latch (2) and open the
cover (3).
5.4
Installing Guide Wire
5.4.1
Installing the guide wires
3
Always begin the installation of the guide wires at
the docking station nearest to the corner of the
mowing area. In this example, it is docking sta‐
tion (team 3).
Guide wires are always installed from the edge
of the mowing area to the respective docking sta‐
tion.
0458-036-9801-A
3
2
Installing the guide wire of docking sta‐
tion (team 3)
3
a
► Maintain a distance of at least a = 2 m to the
edges of the mowing area.
► Leave a length of guide wire (1) of b = 1 m
beyond the perimeter wire to be installed later
at the edge of the mowing area.
► Route the guide wire (1) into the mowing area
and then at a right angle to the docking sta‐
tion (team 3).
4
6
► Use a fixing pin (3) to attach the guide wire (1)
directly to the base plate (2).
► Unwind enough wire from the coil of wire and
cut the wire with a wire cutter.
The length of the wire must be sufficient to be
able to guide the guide wire through the dock‐
ing station (team 3) and behind the docking
station to the master docking station (team 1)
and connect it there.
► Insert the the guide wire (1) into the middle
conduit (4) and feed the wire through.
Push the guide wire (1) upward inside the
docking station (team 3).
► Install the guide wire (1) in the base plate so
that the guide wire lies flat in the cable duct (5)
and is secured by the hook (6).
1
7
English
1
5
3
2
1
1
