15 Repairing

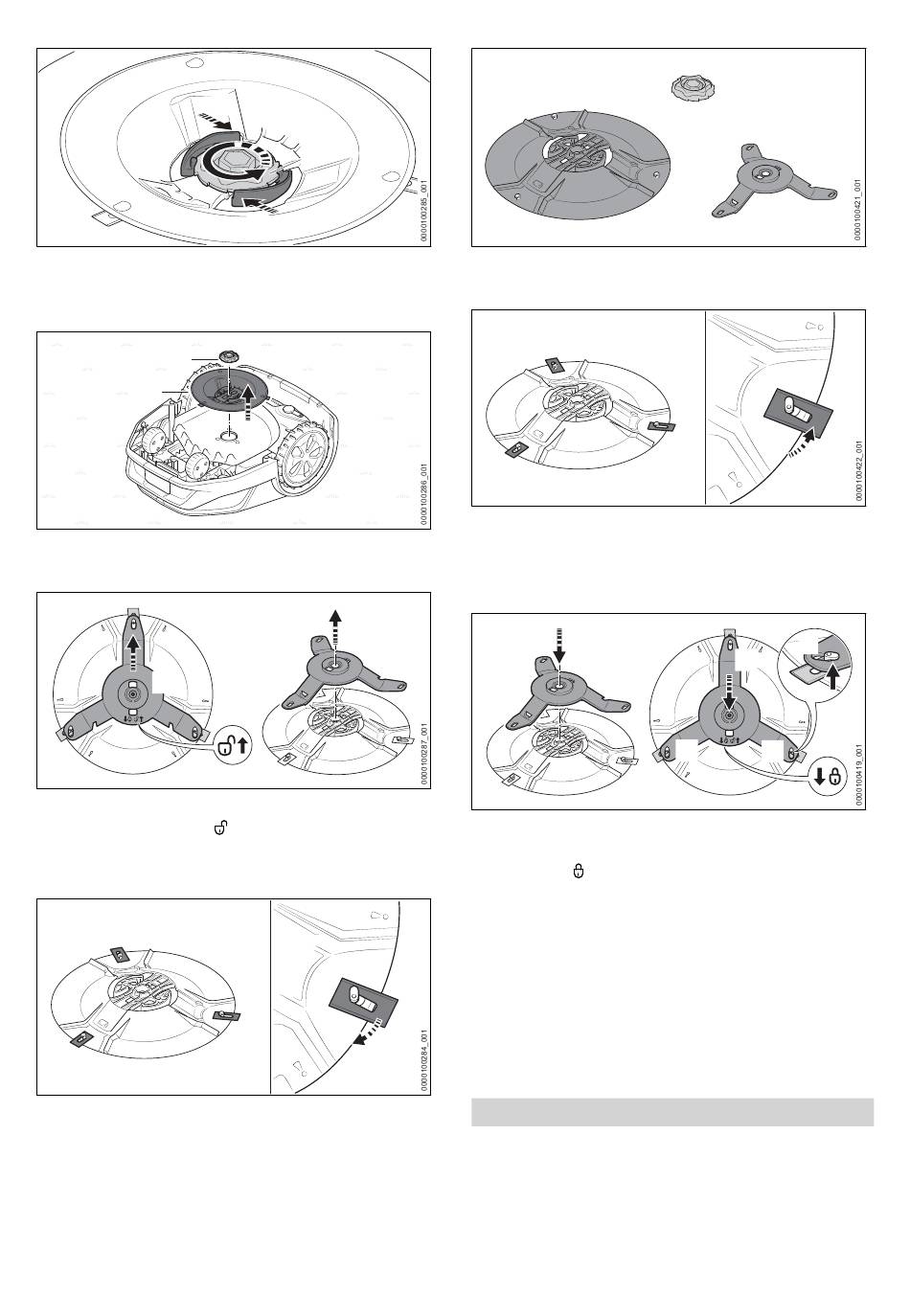

► Press and hold the lever (3).
► Rotate the nut (4) counterclockwise until it can
be removed.
4
5
► Remove the nut (4).
► Remove the blade disk (5).
6
► Push the blade carrier (6) in the direction indi‐
cated by the arrow
The blade carrier (6) is unlocked.
► Remove the blade carrier (6).
7
7
► Detach all old blades (7).
0458-036-9801-A
3
4
3
.
7
5
► Clean, blade disk (5), blade carrier (6) and
nut (4).
8
8
► Attach new blades (8). Insert only one blade
per L-pin (9).
The blades can be oriented in any direction.
The blades can move freely around the L-pin.
6
► Put on the blade carrier (6).
► Push the blade carrier (6) in the direction of
the arrow
and make sure that all three
arms (10) underneath the L-pins (9) are posi‐
tioned.
The blade carrier (6) is locked.
► Position the blade disk (5) on the robot mower.
► Press and hold the lever (3).
► Turn the nut (4) clockwise.
► Release the lever (3) and tighten nut (4)
securely clockwise.
The levers (3) engage audibly.
15 Repairing
15.1
Repairing the robotic mower,
battery, mowing unit, docking
station and power supply
Users cannot repair the robotic mower, battery,
docking station and power supply themselves.
English
4
6
9
8
9
10
10
10
117
