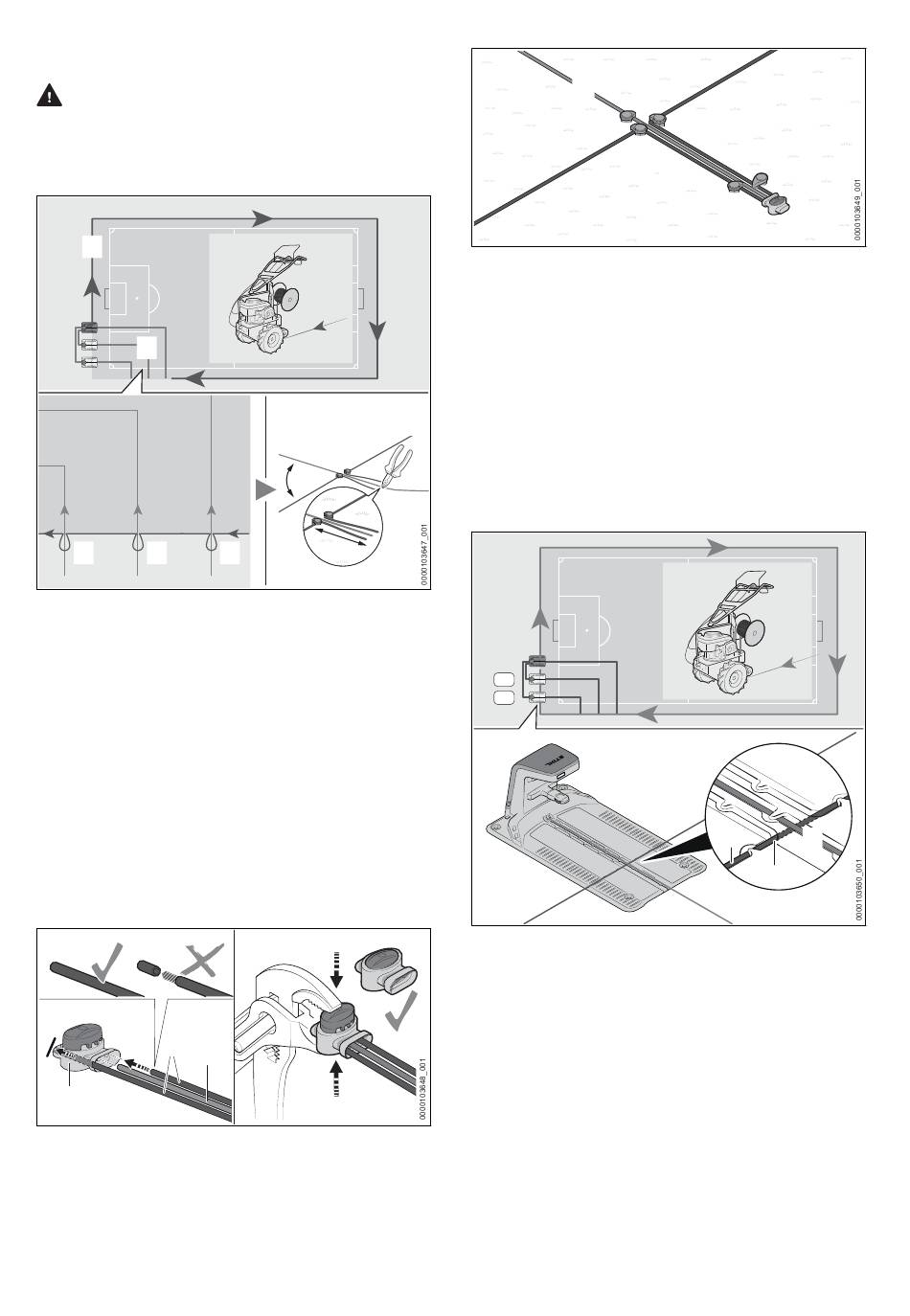

Installing the connection point for the guide wires
NOTICE
■ Install the wires under the turf so that they are
not damaged during lawn care or by match
operations.
1
3
2
2
The connection points (2) for the guide wires (3)
must be installed during the installation of the cir‐
cumferential perimeter wire (1):
► Use a fixing pin (4) to secure the perimeter
wire (1) in the desired locations.
► Place the perimeter wire (1) in a loop with a
length of a = 15 cm and secure it with another
fixing pin (4).
► Cut the perimeter wire (1) at the end of the
wire loop, e.g. with a wire cutter.
► Route the guide wire (3) midway between the
ends of the perimeter wire (1).
► Make all wire ends the same length of
a = 15 cm.
1
3
5
► Insert the ends of the perimeter wires (1) and
the guide wire (3) into the wire connector (5)
as far they will go.
Do not strip the wire ends.
► Press the wire connector (5) together up to the
limit stop with a pair of pliers.
82
4
a
2
5 Using the robotic mower in a team
3
► Route the perimeter wires (1) and guide
wire (3) in parallel and close to each other
without the wires touching.
► Use additional fixing pins to secure the wires.
► Continue to install the perimeter wire (1)
around the mowing area.
Installing the perimeter wire to the docking sta‐
tions (team 3) and (team 2)
Depending on the subsoil, the perimeter wire can
be installed through the base plates of the dock‐
ing station or below them.
2
3
► If the perimeter wire (1) is installed through the
docking station:
► Insert the perimeter wire (1) into the side
conduit (2) of the base plate of the docking
station and feed it through.
► Feed the perimeter wire (1) under the guide
wire (3).
► Install the perimeter wire (1) in the base
plate so that the guide wire lies flat in the
cable duct and is secured by the hook.
► Repeat the procedure as far as the master
docking station (team 1).
1
1
1
3
2
