► Secure the perimeter wires and guides wires
in the cable holders so that no cable loops are
formed.
► Use fixing pins to secure the guide wires
behind the docking stations.
5.6.2
Connecting the charging cable.
NOTICE
■ In assembled condition, the plug connections
of the charging cable are protected against
contamination, e.g. dust and dirt. Contamina‐
tion of the plug connections may result in
breakdowns of the docking station.
► Protect open plug connections against con‐
tamination.
► Clean the contaminated plug connections
as described in this User Manual.
1
3

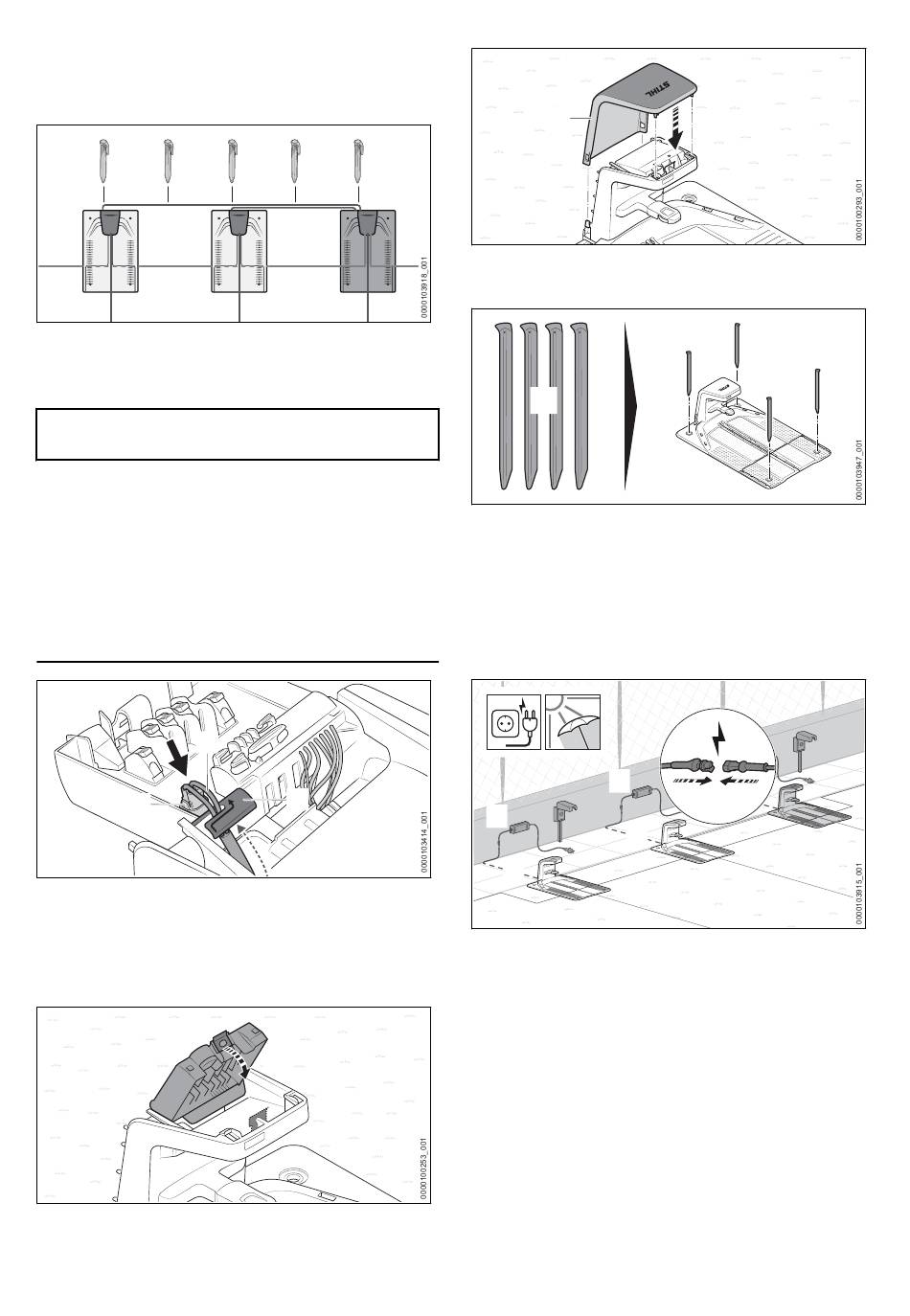

► Secure the charging cable (1) in the cable
holder (2).
► Insert the plug (3).
The plug (3) audibly and noticeably engages
on both sides.
► Fold the cover (4) toward the front.
The cover (4) engages with an audible and
noticeable click.
84
2
4
5 Using the robotic mower in a team
5
► Put on the hood (5).
The hood (5) engages with an audible click.
6
► Secure all docking stations in the ground with
four ground pegs (6).
Connect charging cables for all other docking
stations as described in this section.
5.6.3
Installing the charging cable and con‐
necting the power supply
2
2
1
1
► Route the charging cable (1) to the location of
the power supply (2).
3
1
