8 Light patterns on the robot mower and charging station
8
Light patterns on the robot
mower and charging sta‐
tion
8.1

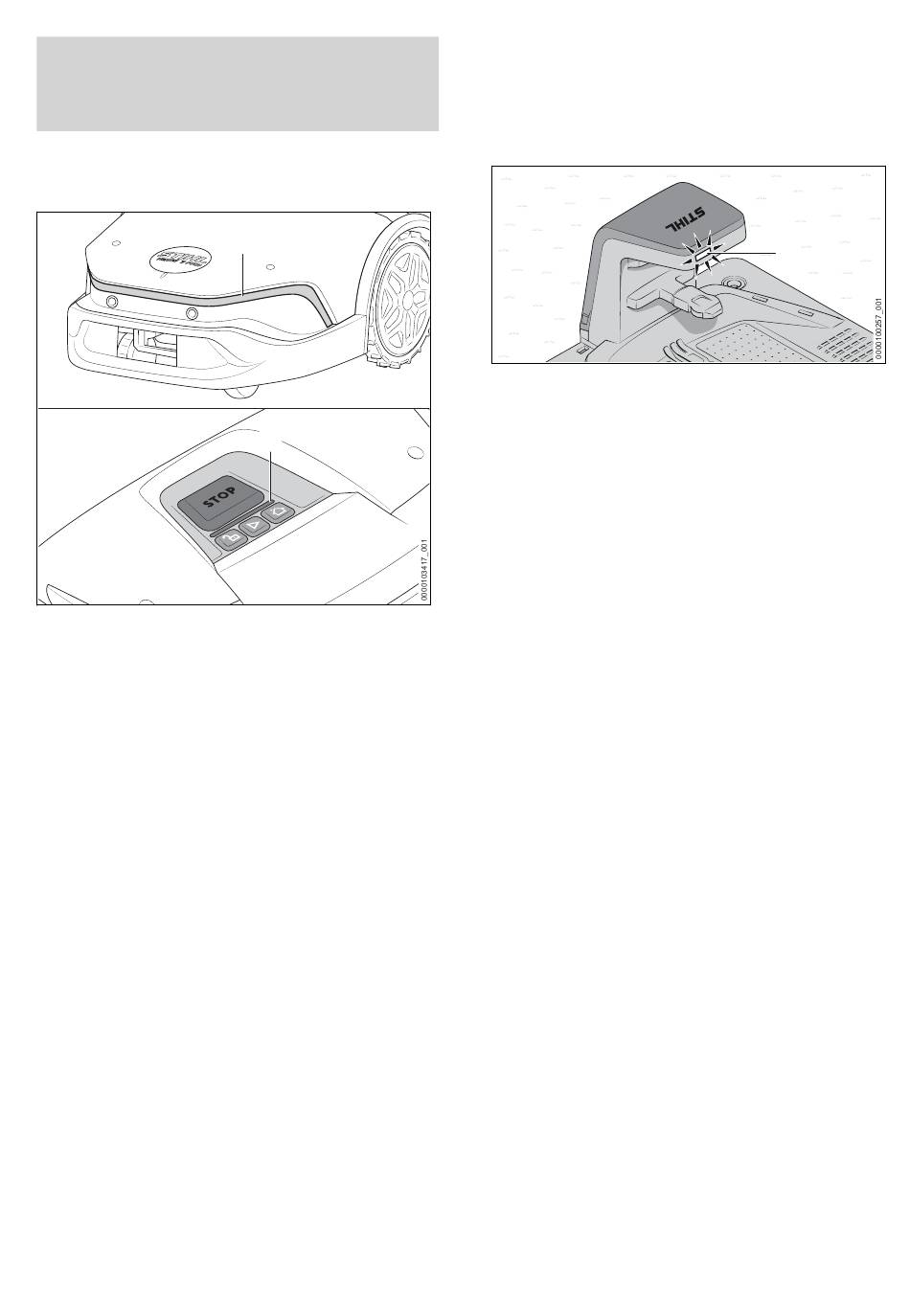

Light strips on the robotic
mower
The light strips (1 and 2) indicate the status of
the robotic mower and errors.
The front light strip (1) is only active during a
change in status and lights up for 20 seconds.
White light pattern:
– No active mowing job.
– An LED on the far right pulses white: Robotic
mower is in the docking station and is opera‐
tional.
– An LED on the far right flashes white: Robotic
mower is in the docking station and is charg‐
ing.
Green light pattern:
– Mowing job is active.
– The rear light strip (2) shows the progress of
the mowing job.
Red light pattern:
– An LED on the far right pulses red: Device
lock is active
– Error message.
Blue light pattern – on rear light strip (2):
– The robotic mower is receiving a system
update.
White running light from left to right:
– The robotic mower is restarting or checking its
system.
If the ambient animation is activated via the
®
MY iMOW
app, the front light strip (1) perma‐
0458-036-9801-A
1
2
nently lights up white when the robotic mower is
moving. The ambient animation fades for 20 sec‐
onds if there is a change of status.
8.2
LED on the docking station
The LED (1) indicates the docking station sta‐
tus and errors.
LED (1) lights up white:
– The docking station is operational.
LED (1) flashes white:
– The robot mower is charging.
LED (1) pulsates white:
– The robotic mower is in the docking station
and is ready for operation.
The LED (1) lights up green.
– The robotic mower is not in the docking sta‐
tion, and the docking station is working
properly.
LED (1) lights up red:
– There is a fault.
LED (1) lights up blue:
– Communication with the robot mower.
Using the the docking station in a team
When the team function is used, the following
lighting patterns are added to the status display
of the docking station:
The LED (1) lights up green.
– The robotic mower is not in the docking sta‐
tion.
– This involves the master docking station
(team 1)
– The guide wires and perimeter wire are instal‐
led correctly and connected, and the assign‐
ment to the docking station was successful.
LED (1) pulsates green:
– The robotic mower is not in the docking sta‐
tion.
– This involves docking stations (team 2) or
(team 3).
– The guide wires and perimeter wire are instal‐
led correctly and connected, and the assign‐
ment to the docking station was successful.
English
1
111
