English
3

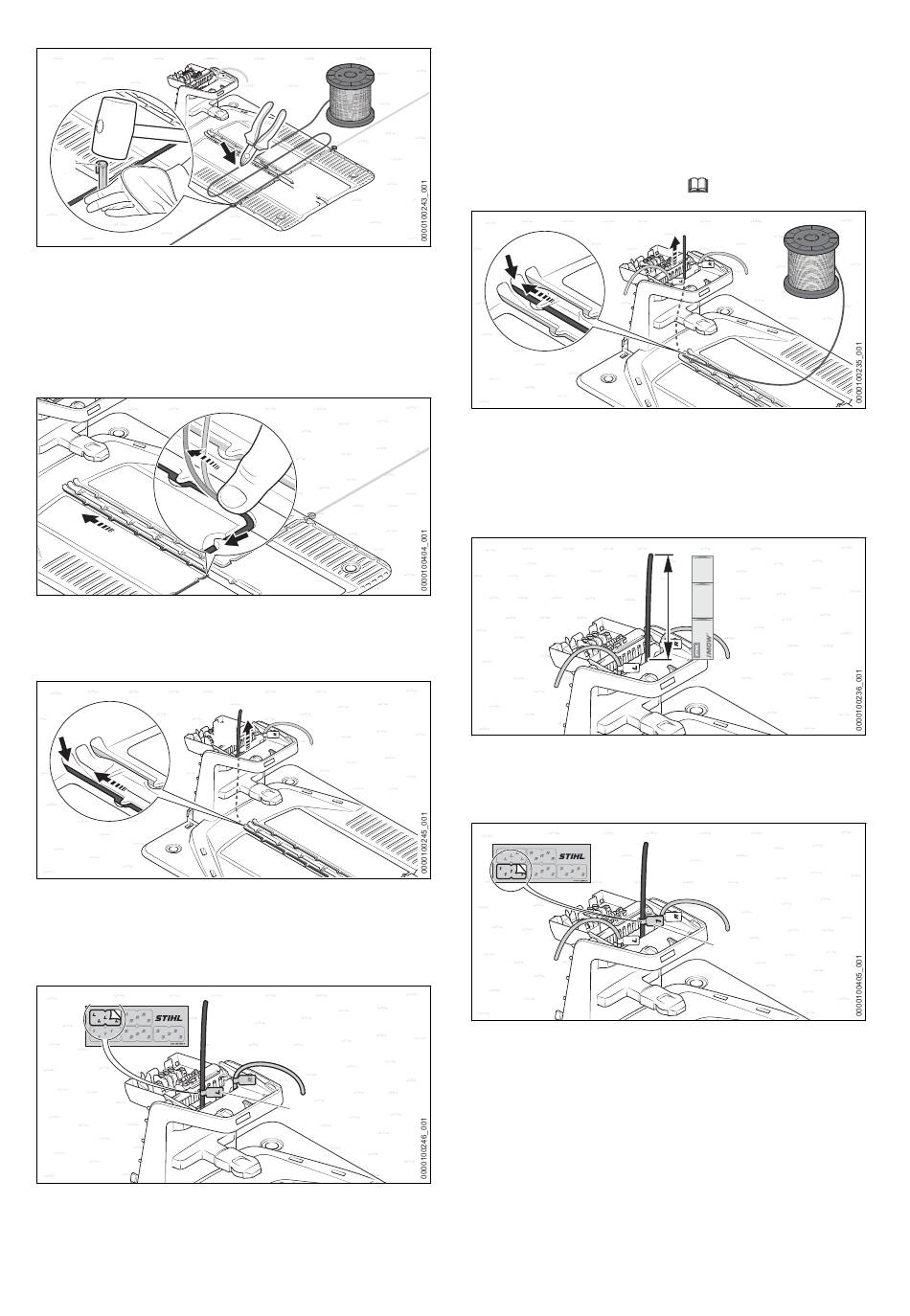

► Attach the perimeter wire (1) directly on the
base plate (2) with a fixing pin (3).
► Use the perimeter wire (1) to measure two
times the width of the base plate (2) and then
cut the perimeter wire (1) to length with a wire
cutter.
4
1
► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (4).
5
► Insert the perimeter wire (1) into the left con‐
duit (5) and feed it through.
Push the wire end (1) upward inside the docking
station.
► Mark the wire end (1) near the housing using
the matching cable marker (6).
106
1
2
1
1
6
6 Using the robotic mower as a stand-alone device
6.6
Installing Guide Wire
6.6.1
Installing guide wire
Take into account the position of all guide wires
when installing the perimeter wire.
► Take into account the general guidelines for
installing the guide wire
2
► Insert the beginning of the guide wire (1) into
the middle conduit (2) and feed the wire
through.
Push the guide wire (1) upward inside the
docking station.
► Feed the guide wire (1) through until it pro‐
trudes upward for a = 37 cm (length:
®
1x iMOW
Ruler).
► Using the appropriate cable marker (3), mark
the guide wire (1) near the housing.
Marking will facilitate the subsequent connec‐
tion to the correct terminal.
6.4.2.
1
37 cm (14.5 in.)
27,5 cm (10.75 in.)
a
15 cm (6 in.)
1
3
0458-036-9801-A
