English
6.7

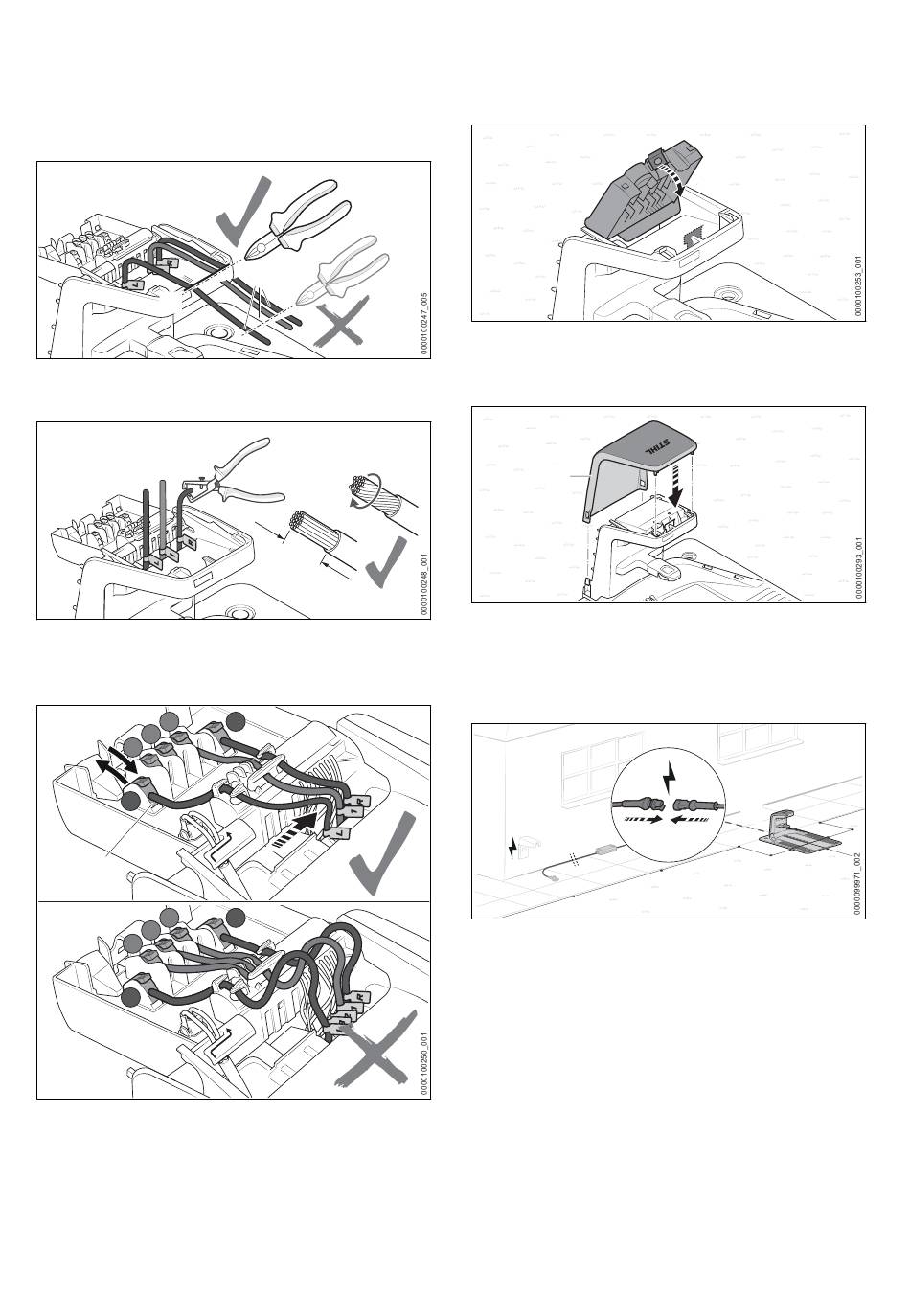

Electrically connecting the
docking station
6.7.1
Connecting the perimeter wire and
guide wire
2
► Slightly tension the wire ends (1) and cut to
length along the edge (2) with a wire cutter.
► Strip a = 10 mm of the wire ends.
► Twist wire strands so that no individual strands
stick out.
1
2
3
L
3
1
2
3
L
► Assign the labeled wire ends to the respective
terminals.
► Fold the lever (3) of the corresponding termi‐
nal backward.
► Insert the stripped wire end into the corre‐
sponding terminal and fold the lever (3) for‐
ward again to close.
108
1
a
R
R
6 Using the robotic mower as a stand-alone device
► Secure the perimeter wires and guide wire in
the cable holders as shown and press toward
the right.
► Fold the cover (4) toward the front.
The cover (4) engages with an audible and
noticeable click.
5
► Put on the hood (5).
The hood (5) engages with an audible click.
6.7.2
Routing the charging cable and con‐
necting the power supply
2
► Route the charging cable (1) to the location of
the power supply (2).
4
3
1
1
0458-036-9801-A
