English
a

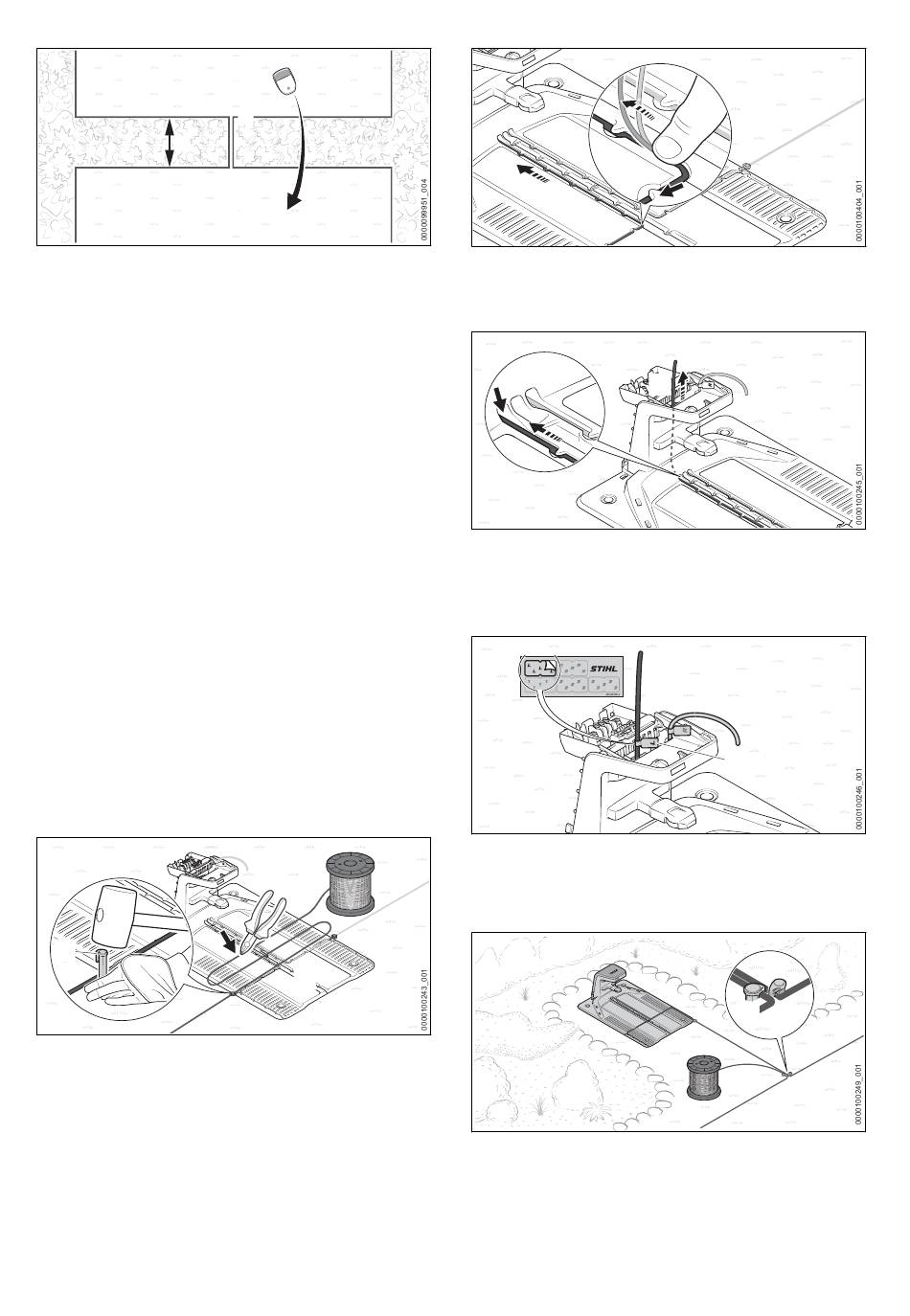

► Route the perimeter wire (1) from the main
area (A) to the side area (B).
Minimum distance to the perimeter wires
a = 74 cm (length: 2x iMOW
► Make sure that the length of the perimeter
wire (1) does not exceed 850 m.
► Route the perimeter wires (1) in parallel and
close to each other back to the mowing
area (A) without the perimeter wires crossing.
6.4.14
Small Mowing Area
The STIHL AKM 100 small area module must be
used for a small mowing area where less than
20 m of perimeter wire is required.
The STIHL AKM 100 stabilizes the wire signal
and is incorporated into the perimeter wire by
means of wire connectors.
6.5
Completing the Perimeter Wire
Installation
6.5.1
Completing the routing of the perime‐
ter wire
Docking station on the edge of the mowing area,
docking station on the edge of the lawn area
3
► Attach the perimeter wire (1) directly on the
base plate (2) with a fixing pin (3).
► Use the perimeter wire (1) to measure two
times the width of the base plate (2) and then
cut the perimeter wire (1) to length with a wire
cutter.
104
A
1
B
®
Ruler)
1
2
6 Using the robotic mower as a stand-alone device
4
1
► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (4).
5
► Insert the perimeter wire (1) into the left con‐
duit (5) and feed it through.
Push the wire end (1) upward inside the docking
station.
► Mark the wire end (1) near the housing using
the matching cable marker (6).
Docking station outside the mowing area
► Route the perimeter wire (1) close to the
already routed perimeter wire and secure with
a fixing pin (2).
1
1
6
2
1
0458-036-9801-A
