6. Commissioning, operation
6.5.1 Offset ON – Offset OFF
The [Offset On/Offset Off] button is used to zeroing or restoring the measure/display of the actual active channel.
Press the button [Offset on] to zeroing the measure (the button shows the indication Offset OFF): if the button is clicked
again the "Offset OFF" function is activated (the button shows the indication Offset ON).
EN
The text OFS on the blue bar of the main screen indicates that the function is activated.

6.5.2 Scaling

The engineering unit can be changed by using the scaling function.
By pressing the [SCAL.ON] button the following information are available:
Information
Low Scl Low scaling
High Scl High scaling
Eng. unit Scl Eng. Unit scaling
Decimals num. Decimals numeric
Transfer. funct. Transfer function
After setting the parameters go back to the previous screen by shorty pressing the button [SCAL.ON].
54

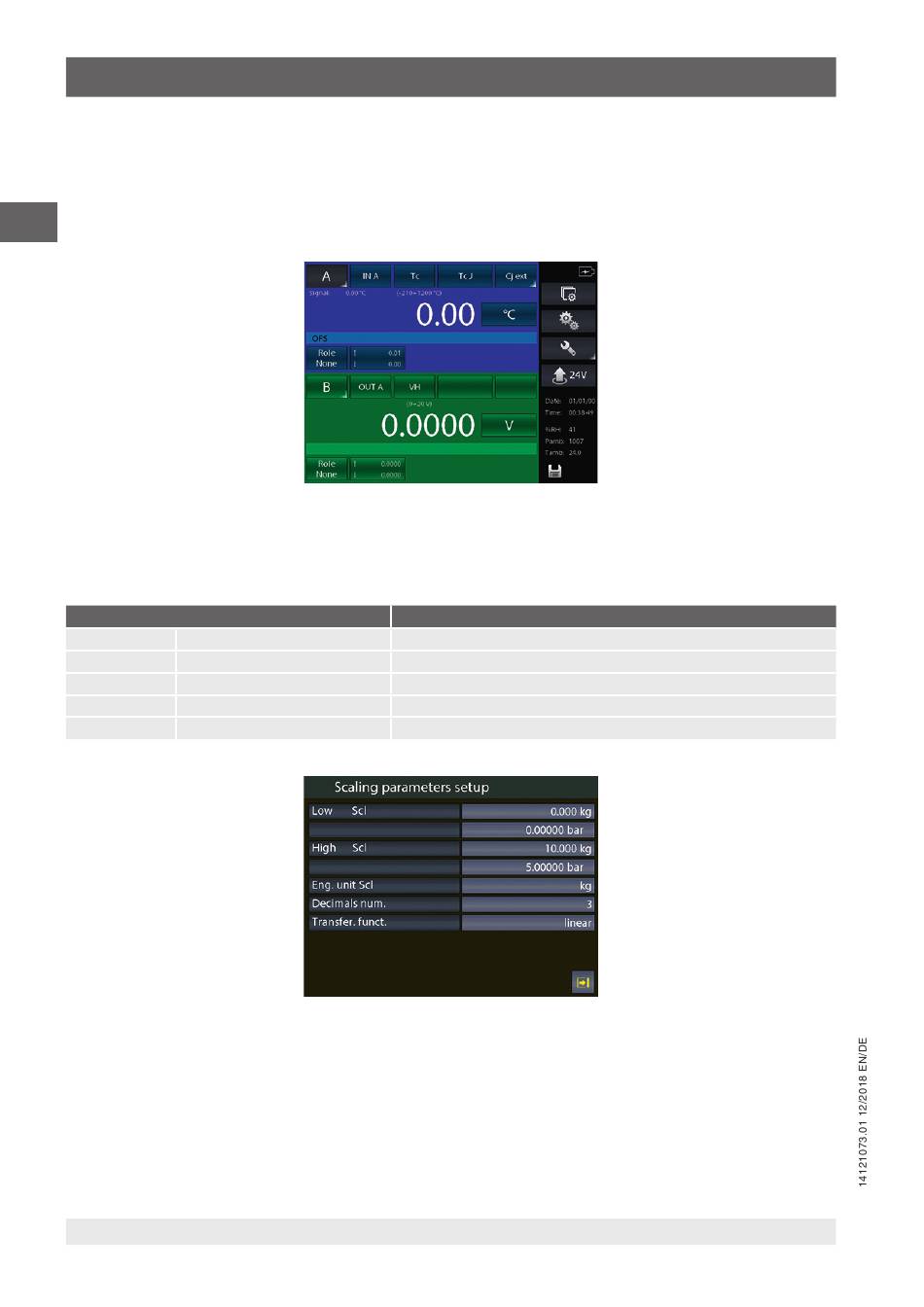

Fig. 66 - Offset function activated
Meaning
min. value of the signal and reading scale (e. g. 0 kg at 0 bar)
max. value of the signal and reading scale (e. g. 10 kg at 1 bar)
customized engineering unit of the measuring signal
number of decimal digits requested
linear, square root, square
Fig. 67 - Scaling parameters setting
