6. Commissioning, operation
Based on the selected channel, the following screen appears:
EN

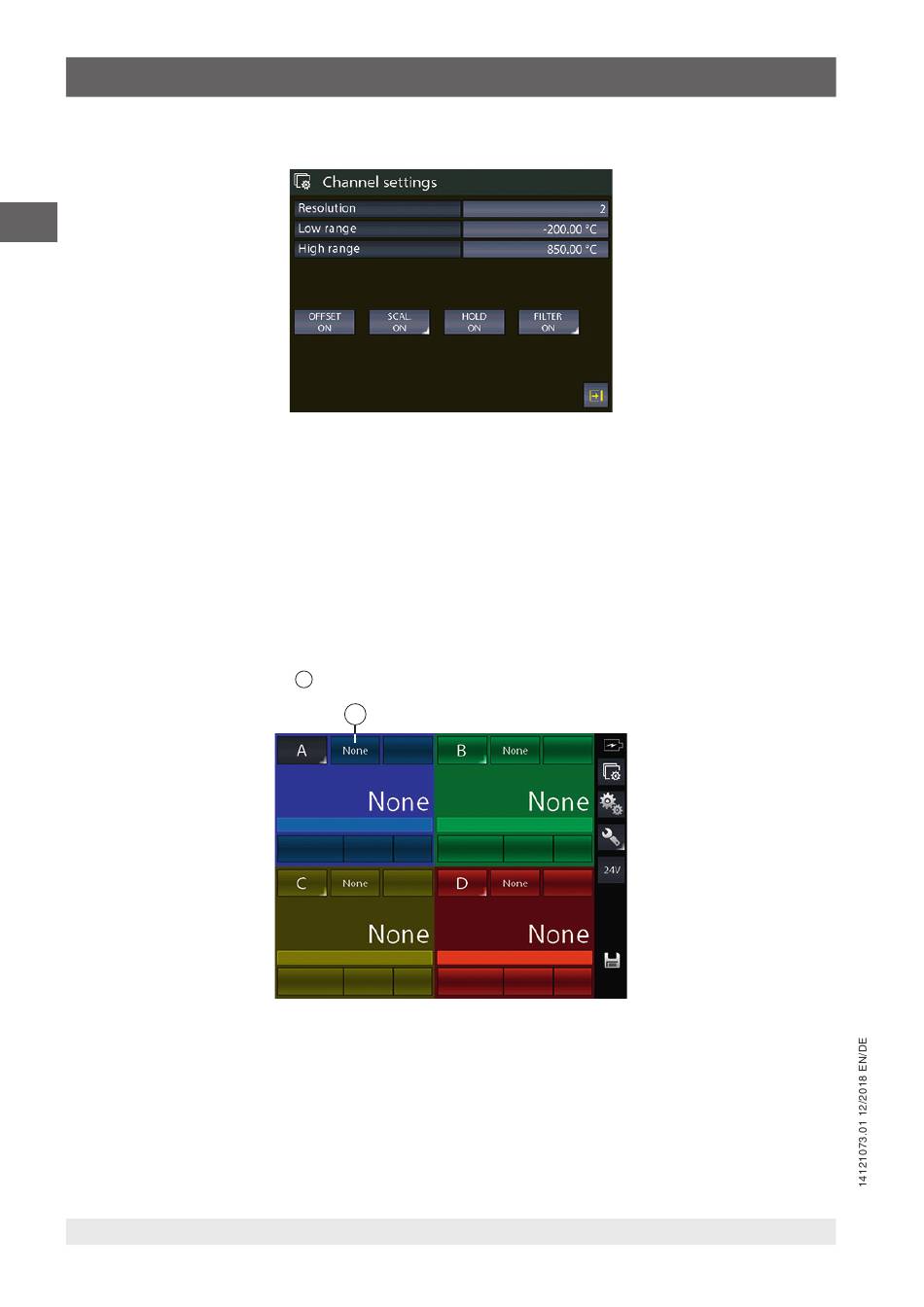

Fig. 22 - Channel setting
Here, the resolution can be set by selecting the number of decimal digits and also the initial and final values of the calibration,
the relationship between the configured channels as REF (REFerence) and DUT (Device Under Test).
This data will be used in the report function.

6.3.2 Other assignments

6.3.2.1 Pressure measurement

The following procedure illustrates the setting of Pascal ET for pressure measurement. The particular channel is selected by
pressing the channel letter (the background of the button changes in gray).
Then, press the button indicated with to assign the desired functional module:
2
2
Fig. 23 - Channel assign selection
