6. Commissioning, operation

6.3.2.2 Thermocouple signal measurement

The following procedure shows the setup of Pascal ET for temperature signal measurement, for example, through a
thermocouple connected to the IN (input) module.
The particular channel is selected by pressing the channel letter (the background of the button changes in gray)
EN
Then, press the button indicated with to assign the desired functional module:
2
2

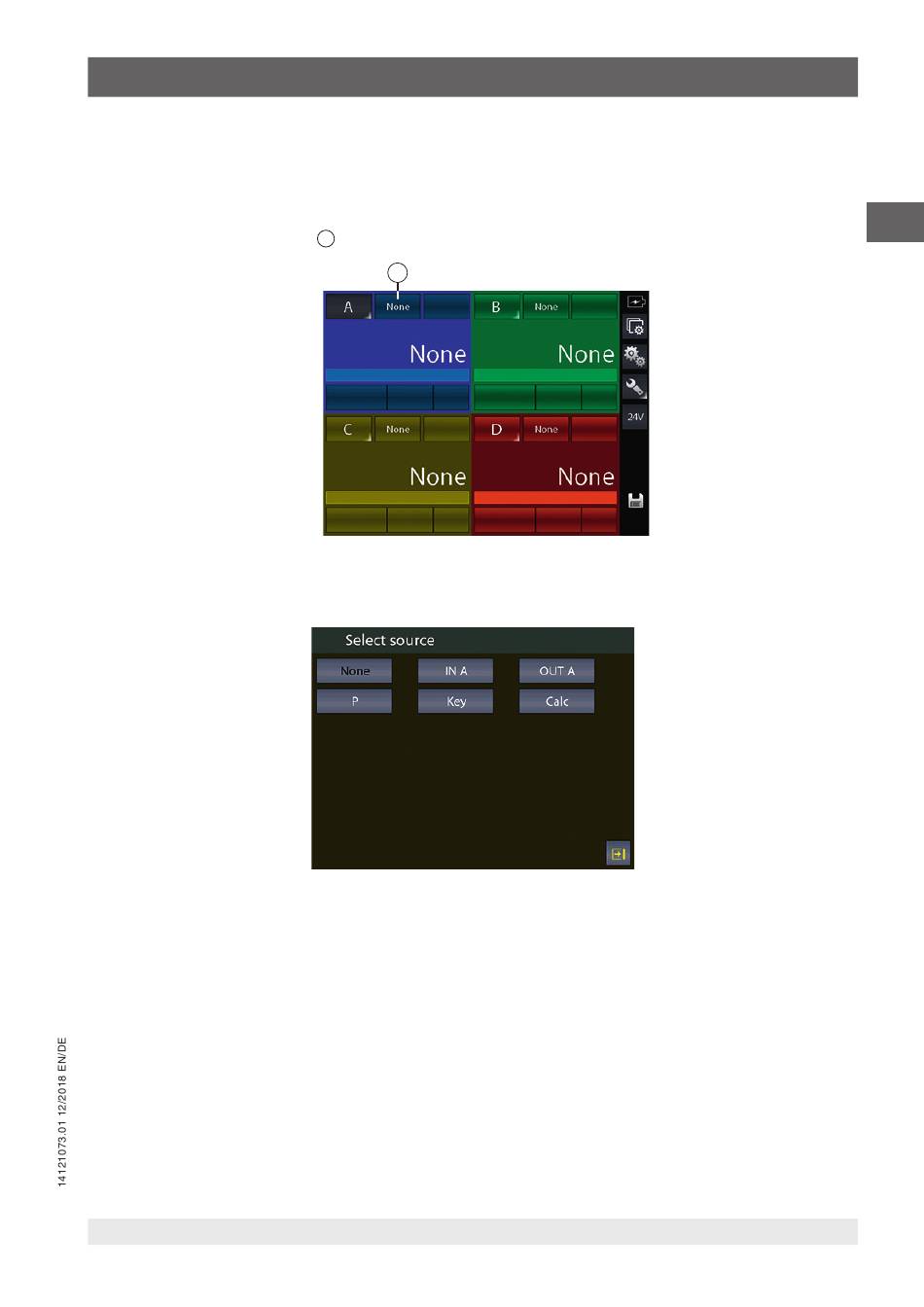

Fig. 28 - Channel assign selection
The following screen appears:
Fig. 29 - Selecting source "IN A"
Automatically the program shows the following screen and it remains in this position until the operator points out what type of
parameter he desires to associate to a selected channel, for example to the Channel A. In this case press the button [IN A] to
measuring from the input.
WIKA operating instructions, model Pascal ET 35
