6. Commissioning, operation

6.3.2.5 Electrical parameter generation

The procedure for the assignment of the generation of an electric parameter (for example mA) is similar to the electrical
signal measurement one as described previously, expect for the step where the operator needs to select operative module by
pressing the button indicated with
EN
In this case the option OUT A or OUT B should be selected.
From the main screen, now the loop type must be selected between: passive (the calibrator Pascal supply the current loop) or
active (current loop supplied externally):
6.3.2.6 Channel C or D – mathematic functions
Channel C or D has an additional setting named CALC. This function enables to display on channel C or D a value, result of
the combination of the values displayed in channel A and channel B.
To access, select the channel C or D, then the button for selecting the source:
Pressing [Calc] the followings screen is displayed:
40
.
2

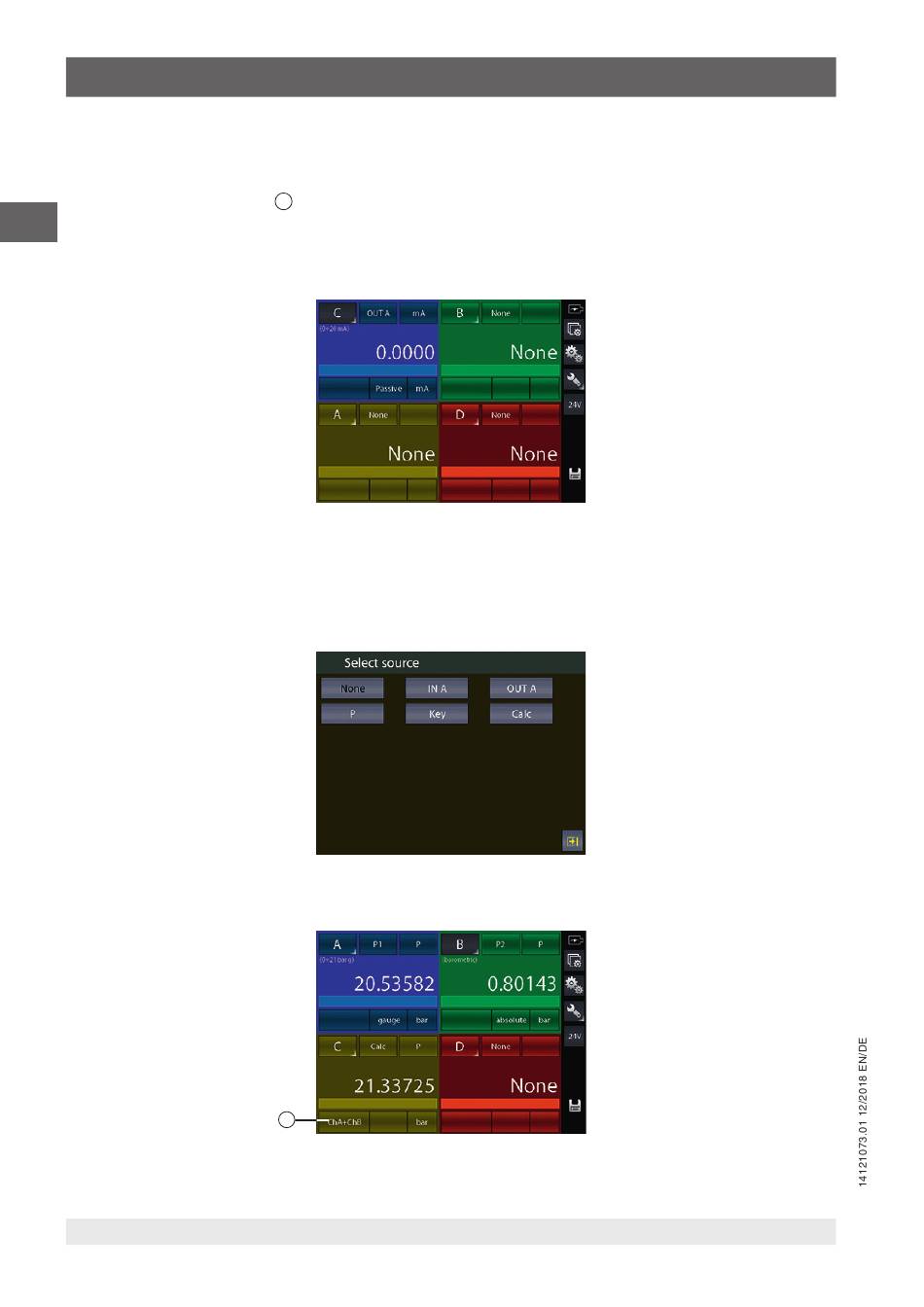

Fig. 41 - Setting the mA-loop generation
Fig. 42 - Selecting module Calc
10
Fig. 43 - Selecting assignment of channel Calc
WIKA operating instructions, model Pascal ET
